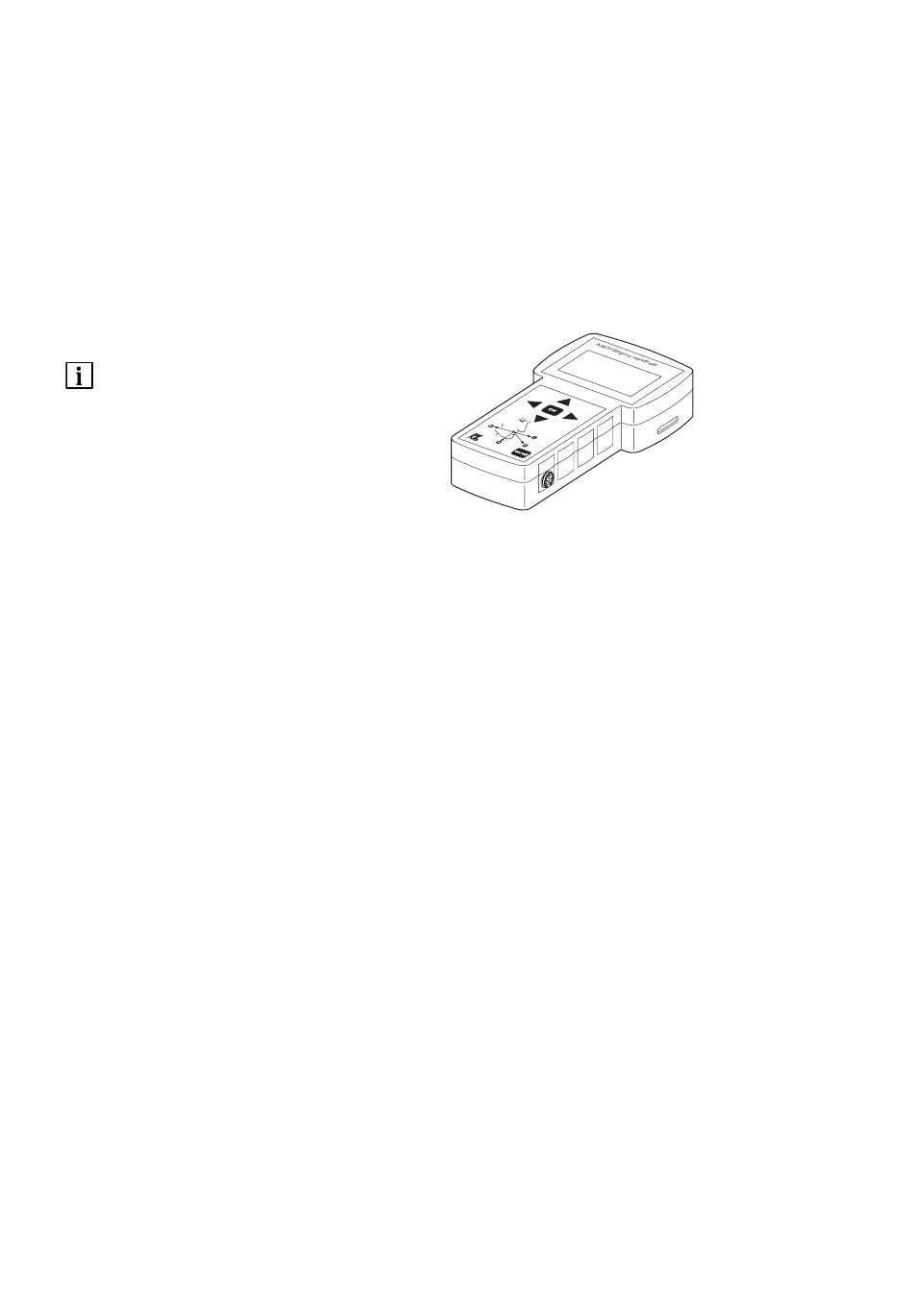

ARCUS®digma Handheld.

A 1.4 Uses and Applications

From the recorded lower-jaw movements of
the patient, ARCUSdigma Handheld
calculates all necessary data for
programming the KaVo Protar articulator,
for the purpose of producing a functional
prosthesis.
Furthermore, centric registrations similar to
a split-cast control can be compared with
each other in the patient's mouth.
The effect of a positioning splint on the
displacement of the tempero-mandibular
joint can also be displayed.
With KaVo PROTARevo 7
(Order No: 0.622.4000) and the
optional Shift-angle Inserts (Mat. No.
0.622.1111) all recorded data can be
reproduced.
For the anterior/canine guidance, the fully-
adjustable Incisal Plate (Mat. No.
0.622.1701) is required.

A 1.5 Technical Data

Dimensions and weight:
ARCUSdigma - Handheld
Width:
Depth:
Height:
Weight: approx. 0,56 kg
Nominal voltages:
Nominal power:
Measuring accuracy:
EPA Test
Calculation of articulator settings +/- 2.0°
Measuring frequency:
Environmental conditions:
suitable for indoor use
permissible temperature-range from
5° C to 35° C
permissible relative humidity to max. 80%
Charging time for the battery:
Possible to operate also direct from the
mains.
Manufacturer:
zebris Medical GmbH
D-88316 Isny
210 mm
200 mm
180 mm
100 – 230 V
50/60 Hz
15 VA
+/- 0.1mm
50 Hz
hrs.
3
