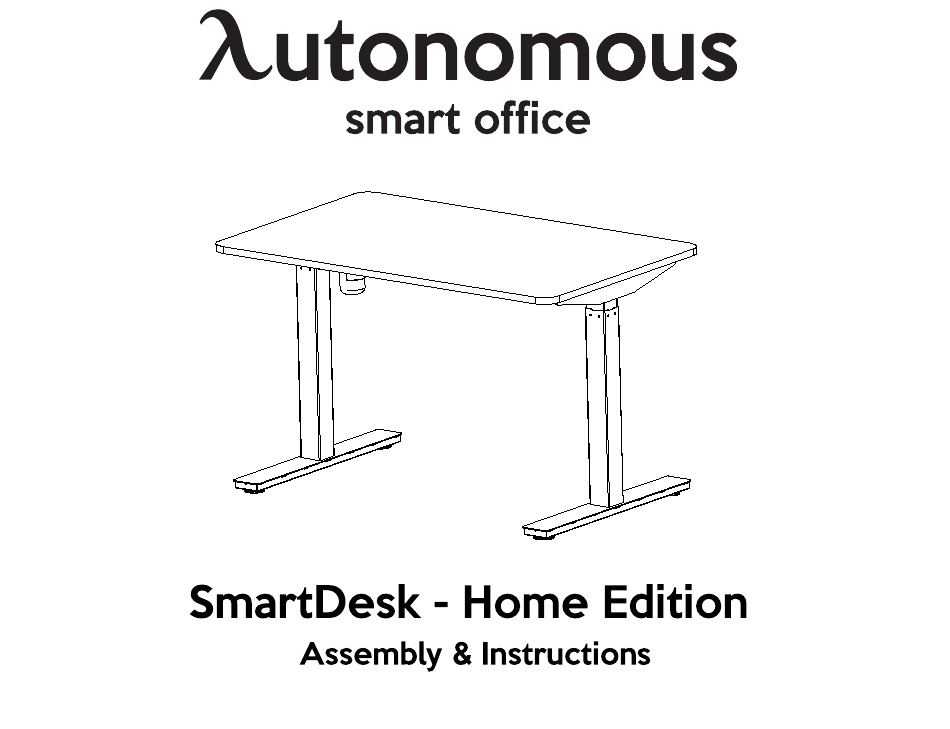

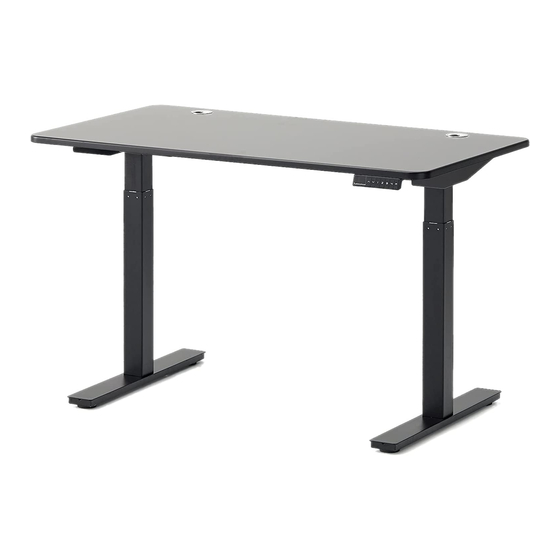

  • Page 1 All manuals and user guides at all-guides.com...
  • Page 2 All manuals and user guides at all-guides.com Description Crossbar Frame Side Bracket Foot M8*16 Screws M6*12 Screws Fixed Foot Pad Driveshaft 4 mm Hex Allen 5 mm Hex Allen Wood Screws ST4.8*19 Wrench Wood Screws ST3.5*19 Noise Canceling Pad Control Box Keypad Power Cord...
  • Page 3 All manuals and user guides at all-guides.com Use the Allen Wrench to loosen eight M6x10 screws on Crossbar Frame (P1). Slide two Crossbar Ends along Crossbar Rails following the arrow below. It is unnecessary to separate the Crossbar Frame. ADJUST TO DESIRED LENGTH...
  • Page 4 Step 2 All manuals and user guides at all-guides.com Turn the Legs (P5) upside down on their sides. Place the Crossbar Ends from Step 1 into the Legs following direction as below pictures. When positioned correctly, the mount tabs of Crossbar Ends will be facing up. Insert eight M6x12 screws (P6) into Crossbar Ends - 4 for each side.
  • Page 5 Step 3 All manuals and user guides at all-guides.com Firmly attach the Feet (P3) onto the Legs assemblies using 4 M8*16 (P4). M8 x 16 Screw Foot Pad...
  • Page 6 Step 4 All manuals and user guides at all-guides.com Turn the Frame assemblies to upright position. Flip over...
  • Page 7 Step 5 All manuals and user guides at all-guides.com Attach two Side Brackets (P2) to either side of the Legs assemblies. Insert four M6x12 screws (P6) into Side Brackets. M6*12 Screw 4PCS...
  • Page 8 Step 6 All manuals and user guides at all-guides.com Place desktop upside down (with the top side of the desktop facing the floor) on a towel, rug, or blanket to avoid being scratched. Line up the Side Brackets to the pre-drilled pilot holes on the Top. Do not attach the frame to the top This step is for measurement only.
  • Page 9 Step 7 All manuals and user guides at all-guides.com After measuring step, hand tighten M6x10 Screws to the frame. NOTE: Do not firmly tighten the Screws since you may need furthur adjustment later. M6*10 Screws (8pcs)
  • Page 10 All manuals and user guides at all-guides.com...
  • Page 11 All manuals and user guides at all-guides.com Motor Leg Driveshaft Non-Motor Leg Insert direction...
  • Page 12 All manuals and user guides at all-guides.com Ensure both Driveshaft and Center Rod are in good condition. Center Rod Left Nut Right Nut Driveshaft...
  • Page 13 Step 8 All manuals and user guides at all-guides.com Slightly loosen the Right Nut by turning it once around. Do not remove the Right Nut. Right Nut Center Rod Non-Motor Leg...
  • Page 14 All manuals and user guides at all-guides.com Step 9 Pull the Center Rod out and insert it into the Non-Motor Leg. 0.2in Non-Motor Leg Non-Motor Leg...
  • Page 15 Step 10 All manuals and user guides at all-guides.com Push the Center Rod all the way in. Leave a small gap (about 0.2in) between Center Rod and the Frame far wall for smooth rotation of the Rod. 0.2in Push the Center Rod through the Bearing Important: Leave 0.2in gap here Non-Motor Leg...
  • Page 16 All manuals and user guides at all-guides.com Step 11 Turn the Left Nut clockwise to remove it from the Driveshaft. Ensure the Plastic Grommet inside the Left Nut following correct direction. Left Nut Plastic Driveshaft Grommet...
  • Page 17 All manuals and user guides at all-guides.com Step 12 Insert the Left Nut and Plastic Grommet into the Rod on Motor Leg. Follow the correct direction and avoid wrong position of both Left Nut and Grommet. Correct Direction Wrong Direction Inverse Left Nut Inverse Grommet Left Nut...
  • Page 18 All manuals and user guides at all-guides.com Step 13 Insert the Driveshaft into the Rod on Motor Leg. Push the Driveshaft all the way in. Motor Leg...
  • Page 19 All manuals and user guides at all-guides.com Step 14 Leave a small gap (about 0.2in) between the Left Nut and the Motor Leg so they will not block the Driveshaft when it turns. Turn the Left Nut counterclockwise to firmly lock the Driveshaft in place. Motor Leg...
  • Page 20 Step 15 All manuals and user guides at all-guides.com Turn the Right Nut to lock the Driveshaft in place. Do not let the Right Nut touch the Frame. Leave some space between the Right Nut and Non-Motor Leg Non-Motor Leg...
  • Page 21 Step 16 All manuals and user guides at all-guides.com Hand tighten or use the provided Wrench to tighten both Left Nut and Right Nut. Motor Leg Non-Motor Leg...
  • Page 22 Step 17 All manuals and user guides at all-guides.com Connect the Control Box (P15) and Keypad (P16) to your SmartDesk. Double check if your Driveshaft is in place before final installation.
  • Page 23 Step 18 All manuals and user guides at all-guides.com Almost done. Turn your SmartDesk by holding both the Up and Down buttons for 20 seconds until you hear a Beep sound. Release both buttons, then press Down button again until number shows up on the Keypad.
  • Page 24 All manuals and user guides at all-guides.com...
  • Page 25 Check 1 All manuals and user guides at all-guides.com Press Up to raise your SmartDesk up. Press Down to lower your SmartDesk. Repeat it a few times.
  • Page 26 Check 2 All manuals and user guides at all-guides.com There is a small gap (about 0.2in) between the Left Nut and the Motor Leg. If not, adjust the Left Nut Location. Tighten it with the Wrench. 0.2in...
  • Page 27 Check 3 All manuals and user guides at all-guides.com There is a small gap (about 0.2in) between the Center Rod and the wall of the Non-Motor Leg. If not, adjust the Right Nut and Center Rod. Tighten the Right Nut with the Wrench. 0.2in Important: Leave 0.2in gap here...
  • Page 28 Check 4 All manuals and user guides at all-guides.com There is a gap between the Right Nut and the Non-Motor Leg. If not, adjust the Right Nut. Tighten it with the Wrench. Leave some space between the Right Nut and Non-Motor Leg...
  • Page 29 All manuals and user guides at all-guides.com...
  • Page 30 Step 19 All manuals and user guides at all-guides.com Insert 12 Noise Pads (P14) onto 12 holes on the Crossbar Frame - 4 for each Side Bracket and 4 at the center.
  • Page 31 Step 20 All manuals and user guides at all-guides.com Re-adjust the frame length if needed, then tighten 8 M6x10 Screws. Attached the frame to the Top using 12 ST4.8x19 Wood Screws (4 on each Side Bracket & 2 on each Crossbar End). ST4.8*19 12PCS...
  • Page 32 Step 21 All manuals and user guides at all-guides.com Attach the Control Box and Keypad to the bottom of the table Top using two ST4.8x19 and two ST3.5x19 Wood Screws.
  • Page 33 All manuals and user guides at all-guides.com...
