Autonomous Poppin Series Assembly Instructions

work smarter

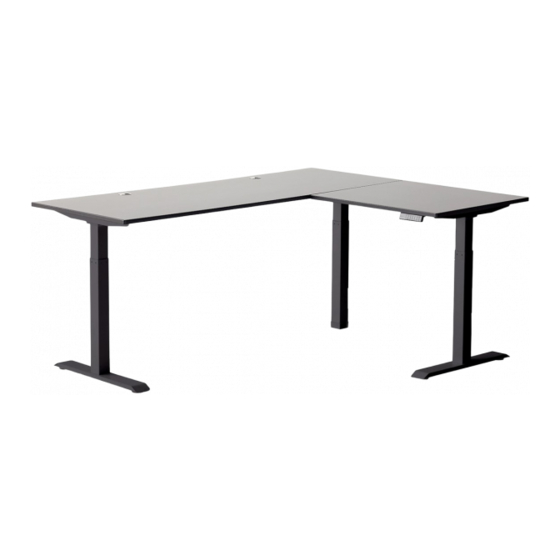

L- Shaped Desk
A
C
B
F
x2
A. Side Leg
x1
B. Middle leg
C. Foot
x2
D. Desk Top
x1
E. Bracket
x3
F. Control Box
x1
G. Support Beam1
x1
H. Support Beam2
x1
I. Power Cable
K. Key pad
x1
x1
4mm Allen wrench 5mm Allen wrench
(included) (included)
E
D
G
K
V V1 W
(8+1) (2+1) (18+1)
Z
Y Y1
(16+1)
(22+1) (2+1)
1. Loosen the screws of Support Beam 1 (G) using 4MM Allen
wrench, adjust Beam to proper position to fit the Desk Top (D),
and then retighten the screws to lock.
2. Attach legs to the Support
Beam 1 using 8 (W).
I
a. On the left side
of Support Beam 1
(G), attach Middle
Leg (B) using 4
(W).
B
H
b. Make
sure the
bar faces
outward.
3. Loosen the 8 screws of Support Beam 2 (H) and adjust it to
the desired position to fit your Desk Top (D), then lock Beam
by retightening its screws.
Z1
(H)
(4+1)
A
c. Assemble
right side of
Support Beam
1 with Side Leg
(A) using 4 (W)
X4
W
Beam1
