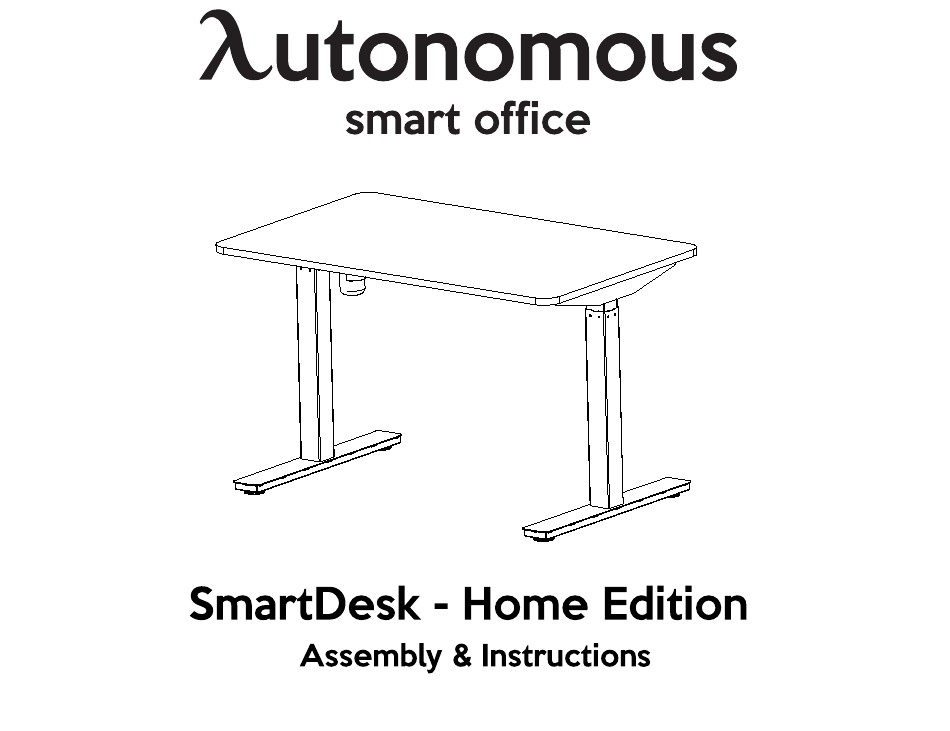

Autonomous SmartDesk - Home Edition Assembly Instructions Manual

Hide thumbs Also See for SmartDesk - Home Edition:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SmartDesk - Home Edition and is the answer not in the manual?

Questions and answers

Related Manuals for Autonomous SmartDesk - Home Edition

Summary of Contents for Autonomous SmartDesk - Home Edition

  • Page 2 Description Crossbar Frame Side Bracket Foot M8*16 Screws M6*12 Screws Fixed Foot Pad Driveshaft 4 mm Hex Allen 5 mm Hex Allen Wood Screws ST4.8*19 Wrench Wood Screws ST3.5*19 Noise Canceling Pad Control Box Keypad Power Cord...
  • Page 3 Use the Allen Wrench to loosen eight M6x10 screws on Crossbar Frame (P1). Slide two Crossbar Ends along Crossbar Rails following the arrow below. It is unnecessary to separate the Crossbar Frame. ADJUST TO DESIRED LENGTH...
  • Page 4 Step 2 Turn the Legs (P5) upside down on their sides. Place the Crossbar Ends from Step 1 into the Legs following direction as below pictures. When positioned correctly, the mount tabs of Crossbar Ends will be facing up. Insert eight M6x12 screws (P6) into Crossbar Ends - 4 for each side. Flip the Legs to gain access to all screws and firmly secure both legs.
  • Page 5 Step 3 Firmly attach the Feet (P3) onto the Legs assemblies using 4 M8*16 (P4). M8 x 16 Screw Foot Pad...
  • Page 6 Step 4 Turn the Frame assemblies to upright position. Flip over...
  • Page 7 Step 5 Attach two Side Brackets (P2) to either side of the Legs assemblies. Insert four M6x12 screws (P6) into Side Brackets. M6*12 Screw 4PCS...
  • Page 8 Step 6 Place desktop upside down (with the top side of the desktop facing the floor) on a towel, rug, or blanket to avoid being scratched. Line up the Side Brackets to the pre-drilled pilot holes on the Top. Do not attach the frame to the top This step is for measurement only.
  • Page 9 Step 7 After measuring step, hand tighten M6x10 Screws to the frame. NOTE: Do not firmly tighten the Screws since you may need furthur adjustment later. M6*10 Screws (8pcs)
  • Page 11 Motor Leg Driveshaft Non-Motor Leg Insert direction...
  • Page 12 Ensure both Driveshaft and Center Rod are in good condition. Center Rod Left Nut Right Nut Driveshaft...
  • Page 13 Step 8 Slightly loosen the Right Nut by turning it once around. Do not remove the Right Nut. Right Nut Center Rod Non-Motor Leg...
  • Page 14 Step 9 Pull the Center Rod out and insert it into the Non-Motor Leg. 0.2in Non-Motor Leg Non-Motor Leg...
  • Page 15 Step 10 Push the Center Rod all the way in. Leave a small gap (about 0.2in) between Center Rod and the Frame far wall for smooth rotation of the Rod. 0.2in Push the Center Rod through the Bearing Important: Leave 0.2in gap here Non-Motor Leg...
  • Page 16 Step 11 Turn the Left Nut clockwise to remove it from the Driveshaft. Ensure the Plastic Grommet inside the Left Nut following correct direction. Left Nut Plastic Driveshaft Grommet...
  • Page 17 Step 12 Insert the Left Nut and Plastic Grommet into the Rod on Motor Leg. Follow the correct direction and avoid wrong position of both Left Nut and Grommet. Correct Direction Wrong Direction Inverse Left Nut Inverse Grommet Left Nut Grommet...
  • Page 18 Step 13 Insert the Driveshaft into the Rod on Motor Leg. Push the Driveshaft all the way in. Motor Leg...
  • Page 19 Step 14 Leave a small gap (about 0.2in) between the Left Nut and the Motor Leg so they will not block the Driveshaft when it turns. Turn the Left Nut counterclockwise to firmly lock the Driveshaft in place. Motor Leg...
  • Page 20 Step 15 Turn the Right Nut to lock the Driveshaft in place. Do not let the Right Nut touch the Frame. Leave some space between the Right Nut and Non-Motor Leg Non-Motor Leg...
  • Page 21 Step 16 Hand tighten or use the provided Wrench to tighten both Left Nut and Right Nut. Motor Leg Non-Motor Leg...
  • Page 22 Step 17 Connect the Control Box (P15) and Keypad (P16) to your SmartDesk. Double check if your Driveshaft is in place before final installation.
  • Page 23 Step 18 Almost done. Turn your SmartDesk by holding both the Up and Down buttons for 20 seconds until you hear a Beep sound. Release both buttons, then press Down button again until number shows up on the Keypad.
  • Page 25 Check 1 Press Up to raise your SmartDesk up. Press Down to lower your SmartDesk. Repeat it a few times.
  • Page 26 Check 2 There is a small gap (about 0.2in) between the Left Nut and the Motor Leg. If not, adjust the Left Nut Location. Tighten it with the Wrench. 0.2in...
  • Page 27 Check 3 There is a small gap (about 0.2in) between the Center Rod and the wall of the Non-Motor Leg. If not, adjust the Right Nut and Center Rod. Tighten the Right Nut with the Wrench. 0.2in Important: Leave 0.2in gap here...
  • Page 28 Check 4 There is a gap between the Right Nut and the Non-Motor Leg. If not, adjust the Right Nut. Tighten it with the Wrench. Leave some space between the Right Nut and Non-Motor Leg...
  • Page 30 Step 19 Insert 12 Noise Pads (P14) onto 12 holes on the Crossbar Frame - 4 for each Side Bracket and 4 at the center.
  • Page 31 Step 20 Re-adjust the frame length if needed, then tighten 8 M6x10 Screws. Attached the frame to the Top using 12 ST4.8x19 Wood Screws (4 on each Side Bracket & 2 on each Crossbar End). ST4.8*19 12PCS...
  • Page 32 Step 21 Attach the Control Box and Keypad to the bottom of the table Top using two ST4.8x19 and two ST3.5x19 Wood Screws.
