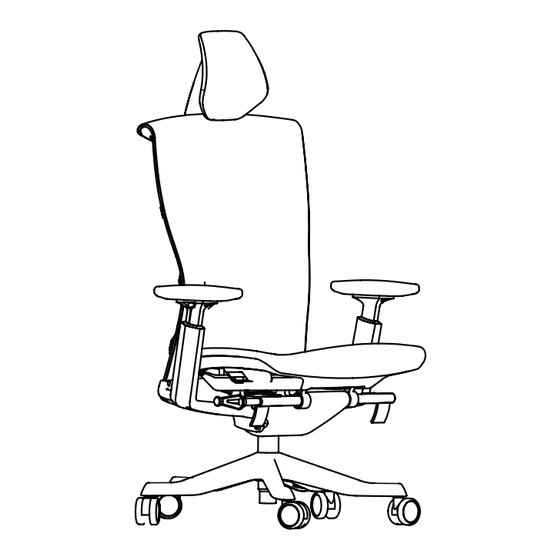

Autonomous ErgoChair Ultra 2 Assembly Instructions Manual

Download this manual

Fuel your active lifestyle.

ErgoChair Ultra 2

ASSEMBLY INSTRUCTIONS

Need help?

Do you have a question about the ErgoChair Ultra 2 and is the answer not in the manual?

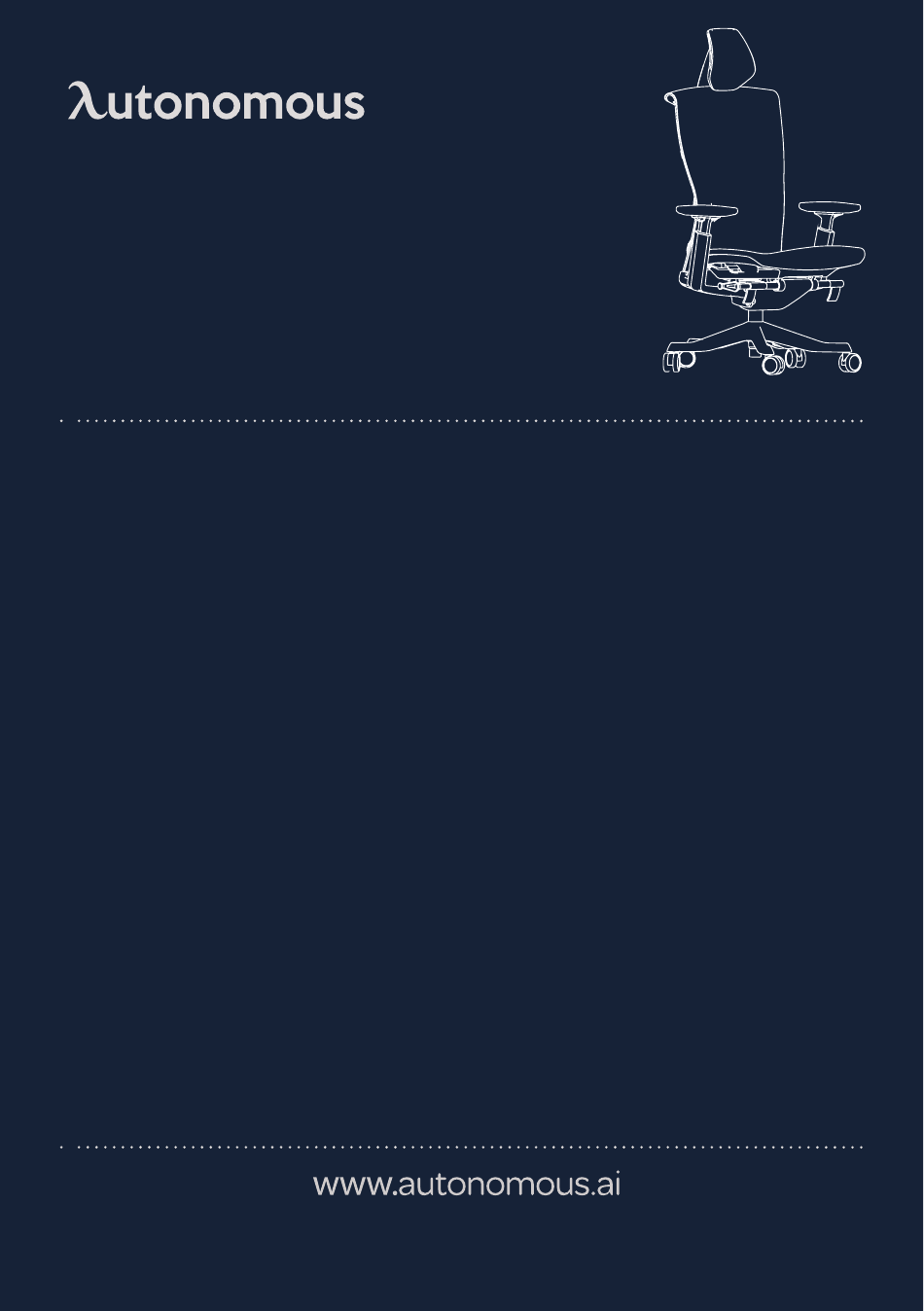

Page 1 Fuel your active lifestyle. ErgoChair Ultra 2 ASSEMBLY INSTRUCTIONS...
Page 2 HEADREST X 1 BACK X 1 GAS PUMP X 1 SEAT X 1 M6X25 CASTERS X 5 ALLEN SCREWS X 4 BASE X 1 TAPPING SCREWS X 4...
Page 3 24" - 29" 18" - 20.5" 20" 28" STEP ONE Flip Base upside down and insert 5 Casters into their corresponding holes. Flip the Base right side up and insert the Gas Pump into the hole.
Page 4 Insert all 8 screws provided STEP TWO as shown Use the Allen in image. wrench Place the Seat upside provided to down on the edge of a tighten Allen stable surface. Screws and a screwdriver for the Tapping Screws. Align the Back in place with the Seat. The Chair assembly up to this point should look like this.
Page 5 STEP THREE Align the Headrest Insert 2 screws in place provided as shown in image. Use the Allen wrench provided to tighten Allen Screws...
Page 6 STEP FOUR Attach the chair (B) to the base (A).
Page 7 SLIDING ARMREST ARMREST SEAT HEIGHT DEPTH ADJUSTMENT ADJUSTMENT TENSION CONTROL BACK TILT CLOCK SEAT HEIGHT ADJUSTMENT...
Page 11 ErgoChair Ultra 2 With regular care and maintenance, your ErgoChair Ultra 2 will provide years of superior performance and satisfaction. To maintain the quality of product, please follow the cleaning procedures provided below Wash the chairs surface with a soft cloth soaked in mild detergent and warm water. Rinse thoroughly and wipe dry with a soft cloth.
