HOW TO POWER THE BOARD?

1. With USB cable
To power the board with USB cable, place jumper J9 in USB position. You
can then plug in the USB cable as shown on images, and turn the power
switch ON.
2. Using adapter
To power the board via adapter connector, place jumper J9 in EXT position.
You can then plug in the adapter cable as shown on images, and turn the
power switch ON.
3. With laboratory PSU
To power the board using screw terminals, place jumper J9 in EXT position.
You can then screw-on the cables in the screw terminals as shown on
images, and turn the power switch ON.
Board power supply creates stable
3.3V necessary for operation of the
microcontroller and all on-board modules.
POWER SUPPLY:
via DC connector or screw terminals
(7V to 23V AC or 9V to 32V DC),
or via USB cable (5V DC)
E a s y M x
POWER CAPACITY:
Up to 500mA with USB, and up
to 600mA with external power
supply

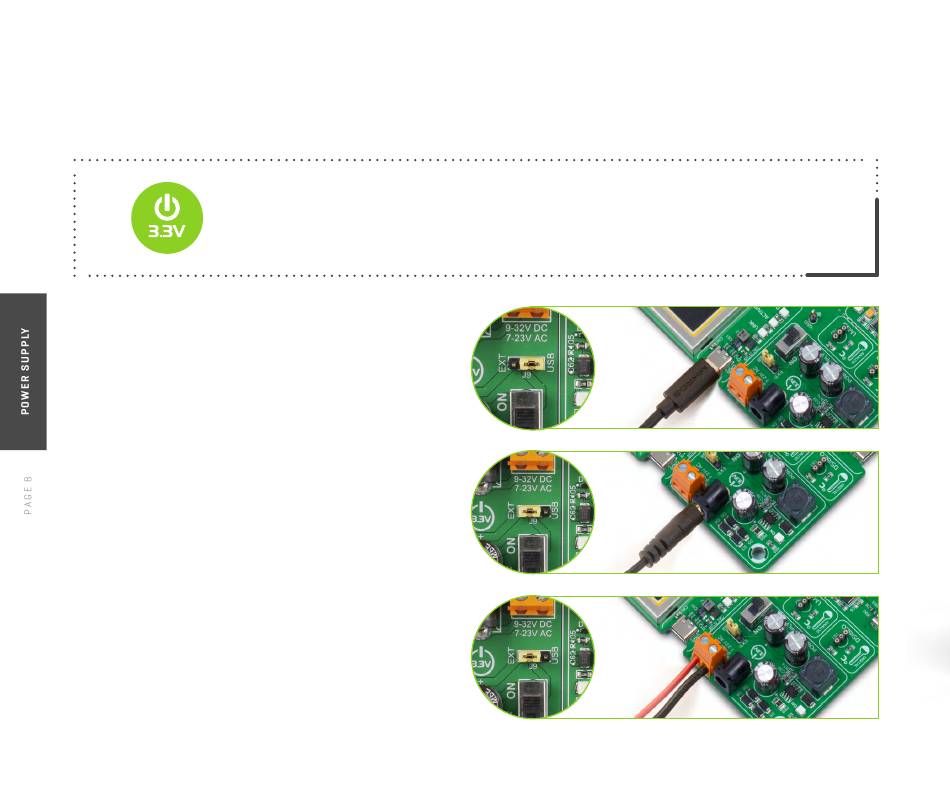

Powered by USB
Powered by wall-adapter
Powered by laboratory PSU
