Summary of Contents for Titan Fitness MINIBIKE

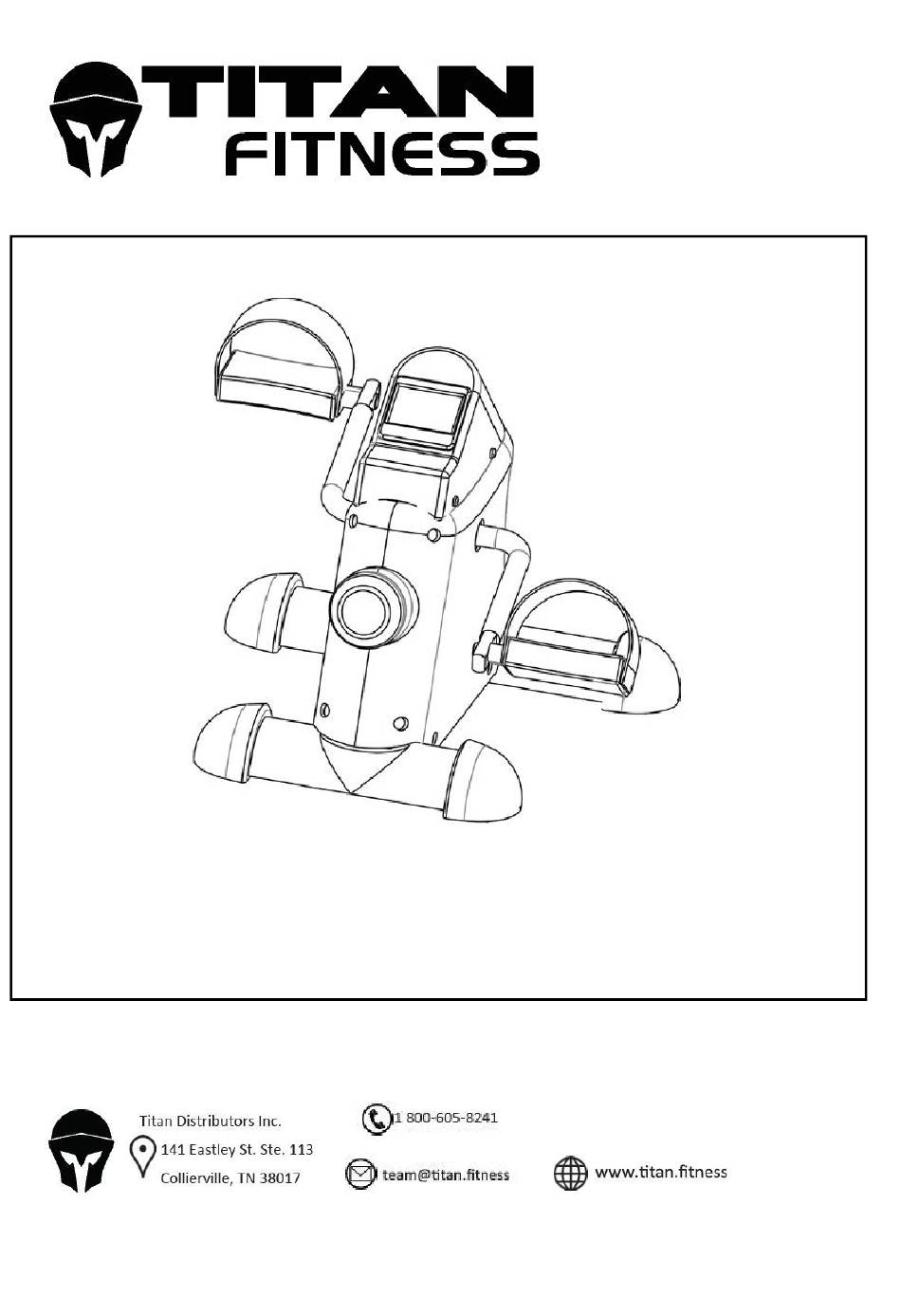

- Page 1 Under-Desk Bike Owner’s Manual MPN: MINIBIKE SKU: 402622 UPC : 049008262546...
-
Page 2: Important Safety Information
Important Safety Information Please keep this manual in a safe place for easy reference. 1. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained and used properly. -
Page 3: Exploded Diagram
EXPLODED DIAGRAM... -
Page 4: Part List
PART LIST: DESCRIPTION Q'TY Main Frame Front Stabilizer Rear Stabilizer Shock Pad Screw ST4.2*15 Washer Ф6 Bolt M6*15 Enforcement plate Crank Bolt M6*20 Clip 1 Clip 2 Bolt M6x12 Screw ST4.2*15 Left Cover Screw ST4.2*10 Left Pedal Right Pedal Right Cover Bolt M4*10 Lock Knob Console Frame... -
Page 5: Assembly Information
Assembly Information Front Stabilizer x 1 Main Frame x 1 Left & Right Pedals x 1 Rear Stabilizer x 1 NOTICE Read this manual before assembly Recognize the spare parts first. Check the hardware. Ensure that you have the right tool. ... - Page 6 II. Identify your hardware Washer Ф6 x 4 5# Allen Wrench x 1 Bolt M6*15 x 4...
-
Page 7: Assembly Steps
Assembly Steps STEP 1: Attach the Front Stabilizer (2#) and Rear Stabilizer (3#) to the Main Frame (1#) respectively using 2 x Washers Ф6 (6#) and 2 x Bolts M6*15 (7#). - Page 8 STEP 2: Attach the Left Pedal (17#) to the Crank (9#), and Right Pedal (18#) to the Crank (9#). Turn the pedal in Clockwise Turn the pedal in anti-clockwise...
- Page 9 THE OPERATION OF COMPUTER Console Display Range Time：00：00-99：59 Speed：0.0-99.9 Mph Distance：0.00-999.9 Calorie：0.0-999.9KCAL ODO：0-999.9 Operation Instructions： 1. Auto Open / Close: When the button is triggered or receipt signal from speed sensor, the system will automatically open. When the speed keeps input a same signal with 4 minutes or without any operation for 4 minutes, the system will automatically close.
- Page 10 BATTERY: Change the battery 1. Remove the console from the console frame. 2. Change 5# (AA) battery. 3. Make sure the battery are correctly installed and polar in correct direction. 4. If the screen displays unclear, remove the batteries and wait 15 seconds then install again.
- Page 11 User Information related to the WEEE: Decree n° 2005-829 of July 20, 2005 relating to the composition of electric and electronic equipment and to the waste disposal resulted from these equipment TITLE III PROVISIONS RELATING TO THE COLLECTION OF HOUSEHOLD WASTE ELECTRIC AND ELECTRONIC EQUIPMENTS Article 12 Municipalities or their groupings, producers, distributors and coordinating organizations...
- Page 12 far as possible. Hold for 15 counts. Relax and then repeat with left leg extend. 3. Head Roll Rotate your head to the right for one count, feeling the stretch up the left side of your neck. Next, rotate your head back for one count, stretching your chin to the ceiling and letting your mouth open.
-
Page 13: Cooling-Down Phase
7. Toe Touch Slow bend forward from your waist, letting your back and shoulders relax as you stretch toward your toes, Reach down as far as you can and hold for 15 counts. To tone muscle while on your UNDER-DESK BIKE you will need to have the resistance set quite high. - Page 14 NEED HELP? CONTACT US FIRST 1(800)-605-8241 team@titan.fitness / www.titan.fitness Business hours: Monday - Friday • 8am - 5pm Central...
