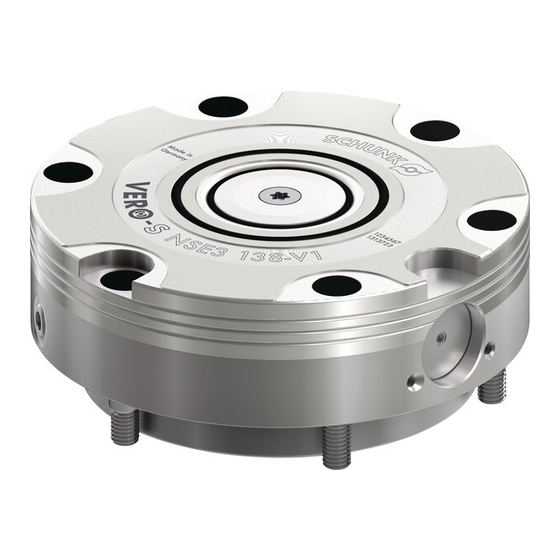

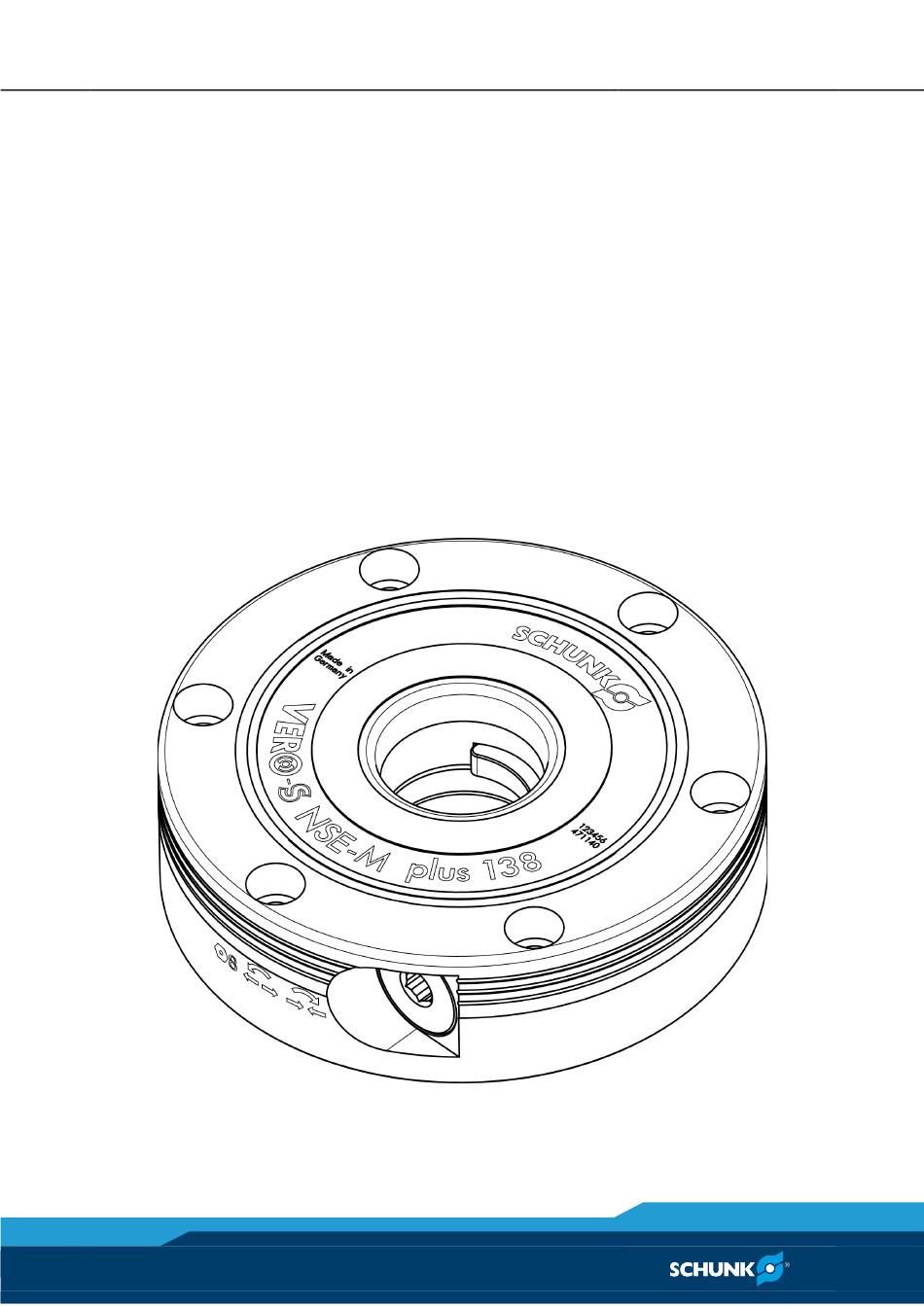

  • Page 1 Translation of original operating manual VERO-S Quick-Change Pallet System NSE-M plus 138 Assembly and Operating Manual Superior Clamping and Gripping...
  • Page 2 Imprint Imprint Copyright: This manual is protected by copyright. The author is SCHUNK GmbH & Co. KG. All rights reserved. Technical changes: We reserve the right to make alterations for the purpose of technical improvement. Document number: 02890254 Version: 02 |31/08/2021|en...
  • Page 3: Table Of Contents

    Table of contents Table of contents 1 About this manual ....................4 1.1 Presentation of Warning Labels ................4 2 Basic safety notes ..................... 5 2.1 Intended use ......................5 2.2 Not intended use ...................... 5 2.3 Notes on particular risks ................... 6 2.4 Instructions for safe operation .................
  • Page 4: About This Manual

    About this manual About this manual This instruction is an integral part of the product and contains important information for a safe and proper assembly, commissioning, operation, care and maintenance. • Before using the product, read and note the instruction, especially the chapter "Basic safety notes".
  • Page 5: Basic Safety Notes

    Only use original SCHUNK spare parts. • Keep this manual available for the personnel at all times. • If the product is passed on to a third party, these instructions must also be passed on.
  • Page 6: Notes On Particular Risks

    Basic safety notes Notes on particular risks • Perform maintenance work, modifications, and attachments outside the danger zone. • For all work, secure the system against accidental operation. • Do not reach into the open mechanism of the clamping pin holder.
  • Page 7: Instructions For Safe Operation

    Operating the gripper in an environment in which it is subjected to abrasive dusts or corrosive and/or aggressive vapours and/or liquids requires the prior consent of SCHUNK. Safety during assembly and maintenance During assembly, connection, setting, commissioning and testing, it is important to eliminate the possibility of the fitter or any other persons accidentally activating the system.
  • Page 8: Holding Force And Screw Strength

    2.4.2 Constructional changes, attachments, or modifications Additional threads, bore holes or attachments which are not supplied as accessories by SCHUNK may affect safety. They may only be applied after obtaining the prior consent of SCHUNK. Personnel qualification The Quick Change Pallet System must only be installed, removed, started up, operated and serviced by qualified specialist personnel with the relevant safety training.
  • Page 9: Organizational Measures

    Only allow specialists to remedy faults. Spare parts Only use original SCHUNK spare parts. Environmental Protection Requirements The current environmental protection requirements must be observed during all maintenance and repair work.
  • Page 10: Warranty

    Technical data Warranty If the product is used as intended, the warranty is valid for 24 months from the ex-works delivery date under the following conditions: • Observe the applicable documents • Observe the ambient conditions and operating conditions • Observe the maximum number of clamping cycles •...
  • Page 11: Assembly

    Assembly Assembly The item numbers to the corresponding individual parts refer to the drawing in chapter 11. Access to the drive piston (item 4) on the side must be ensured during the assembly of the manually actuated quick change pallet system, in particular in the event of clamped clamping pallets.
  • Page 12: Mounting And Actuation

    Assembly Mounting and actuation If you wish to install the unit yourself, please request our drawing. The NSE-M plus 138 is fastened in the installation area with six screws M8. Dimensions and assembly 02|NSE-M plus 138 |en...
  • Page 13 Assembly Positioning of the module can be done via two different centering diameters of the installation area: Ø 138H6 (upper area) Ø 110H6 (bottom area) depending on the installation version. The clamping system is suitable for partial or complete installation Partial installation should be preferred.
  • Page 14: Clamping Station (Optional)

    Assembly Clamping station (optional) Clamping station Clamping range 1-fold 2-fold 4-fold 6-fold A, G B, C, H, I B, E, H, K B, D, F, H, J, L Modules for stationary use can be optionally equipped with manually actuated quick change pallet modules. The quick change pallet modules can be arranged and distributed as desired.
  • Page 15: Clamping Pins Spa 40, Spb 40, Spc 40, Spg 40

    This is why only screws of strength class 12.9 may be used. Only original SCHUNK clamping pins may be used. If the clamping pins are to be used in customer-owned devices, the customer must provide sufficiently dimensioned threaded holes or a sufficiently thick mounting material.
  • Page 16 Assembly Designation Type Id.-No min. outer diameter on the support of the unit NSE plus 90 0471059 60 mm NSE plus 99 0471120 75 mm NSE plus 138 0471150 115 mm NSE plus 138-V1 0471195 115 mm NSE-T plus 138 0471076 60 mm NSE-T plus 138-V1...
  • Page 17: Information To Clamping Pin Spg 40

    Assembly Admissible torques for clamping pins (Srew grade 12.9) Screw size Admissible torques (Nm) Application / Disposition of different clamping pin types (Application example: pallet with 6 clamping areas) 6.4.1 Information to clamping pin SPG 40 The SPG 40 can be used with a clamping position instead of the SPA 40.
  • Page 18: Function

    Function Function The item numbers to the corresponding individual parts refer to the drawing in chapter 11. The clamping system has a release mechanism with manual actuation. The actuating piston, which is actuated with a hexagon screwdriver (angled pin wrench), can be accessed on the side of the base body of the quick change pallet module.
  • Page 19 Function 4 The clamping slides are guided inwards by spring by means of cams at the drive ring. When locking, the pallet is pulled onto the contact surface of the clamping module and the clamping pin is clamped in the clamping module in a self-locking and form-fitting manner.
  • Page 20: Maintenance And Care

    LINO MAX 200. • Grease the sliding surfaces of all movable components with Renolit HLT 2. Replace damaged parts only with original SCHUNK replacement parts! A repeated functional check is to be conducted before the start- General operating conditions •...
  • Page 21: Trouble Shooting

    (see chapter 8) The clamping slides or movement Disassemble the module and replace damaged mechanism is damaged and worn parts with original SCHUNK spare parts (see chapter 8) Excess tensile load on clamping slides Reduce the load The clamping area unlocks automatically...
  • Page 22: Assembly Drawing

    Assembly drawing Assembly drawing 02|NSE-M plus 138 |en...
