2.2.4 Network Connectivity, and Data Rate
When you plug in the Ethernet cable or power supply:
• The square, green Link light above the Ethernet port indicates that the network connection has
been established (see
auto-negotiated baud rate:
• This light is yellow at 10 Mbps.
• It is orange at 100 Mbps.
Operations Guide
Figure 2-5
and
Figure

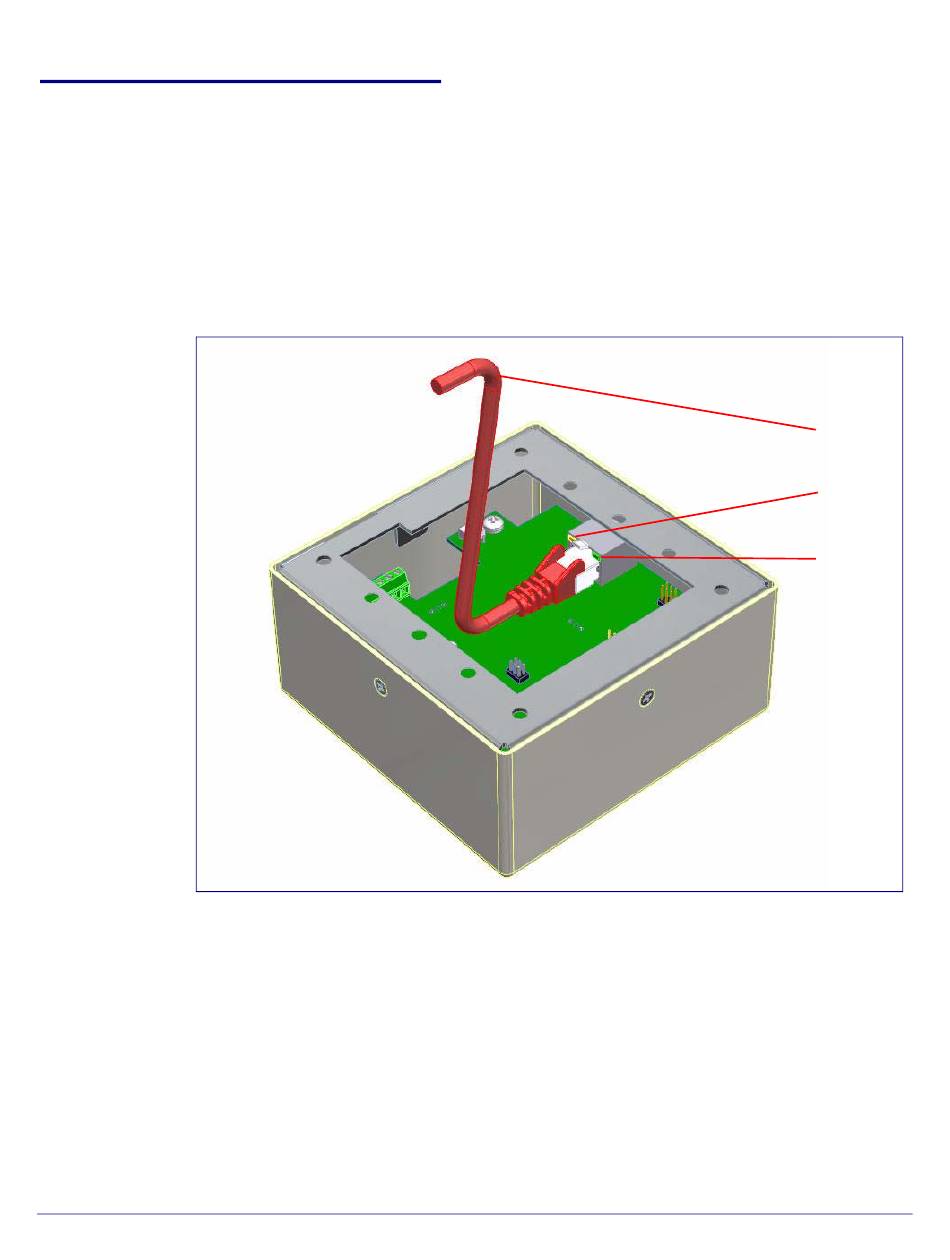

Figure 2-5. Network Connector Prior to Installation
930386E
Installing the VoIP Indoor Office Ringer
2-6). The Link light changes color to confirm the
Parts List
Ethernet
Activity
Link
CyberData Corporation
11
