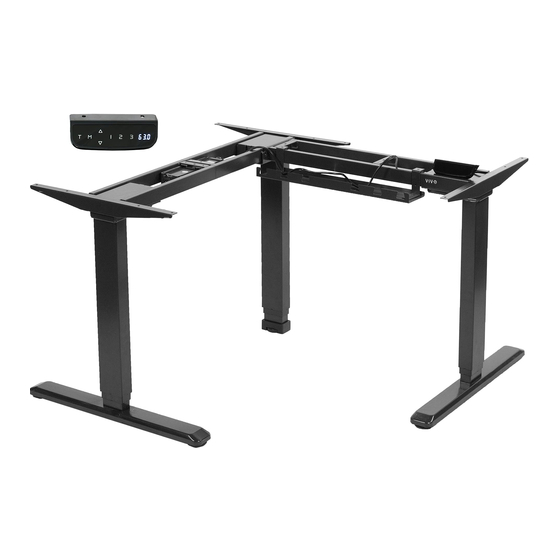

- Page 1 Black Electric Multi Motor Corner Desk Frame Instruction Manual SKU: DESK-V133E Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v133e help@vivo-us.com www.vivo-us.com 309-278-5303...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 DO NOT EXCEED WEIGHT CAPACITY. Failure to do so may result in serious injury. 330lbs (149.69kg) TOOLS NEEDED Phillips Level Drill Screwdriver ASSEMBLY STEPS STEP 1 Place the side brackets (C) upside down on a flat surface, then place telescopic crossbar (A) and extension crossbar (B) over the brackets as shown, making sure the screw posts on the brackets fit into the holes in the crossbars.
- Page 4 STEP 3 Place tabletop upside down on the floor. Place frame assembly upside down on tabletop, and adjust the crossbars to the appropriate length. STEP 4 Tighten all set screws with the Allen wrench (S-I). STEP 5 Drill 3/8" (10mm) deep pilot holes under the desktop with a 3/32" (or 3mm) drill bit, then remove the frame from the desktop.
- Page 5 STEP 7 Attach the fixing plate (G) to the frame using M4x6 flat head bolts (S-E). Tighten screws with a Phillips screwdriver. STEP 8 Connect control panel (M), lifting columns (D) and power cord (I) to the control unit (H). If needed, use the extension cord (J) to connect the farthest lifting column.
- Page 6 STEP 10 Fix the hooks (L) to the cable tray (K) with M4x6 bolts (S-F) and tighten with a Phillips screwdriver. Hang the shelf onto the frame as shown. STEP 11 Tighten installed thumbscrews to secure the cable tray (K). Press anti-vibration pads (S-H) into desktop mounting holes.
- Page 7 STEP 13 Connect the power cable to a wall outlet to power on desk for operation. Each foot pad can be adjusted independently for fine tuning. Slightly turn the foot pad to lower or raise the base. Use a level to ensure the desktop is even.
- Page 8 - 83% within < 2hr - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
