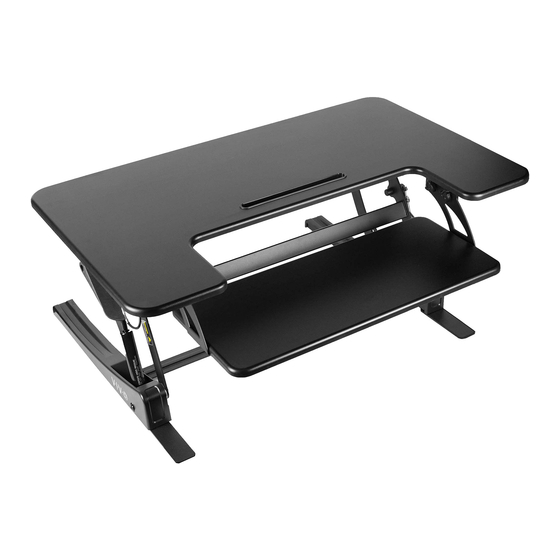

Vivo DESK-V000V Instruction Manual
36” desk riser
Hide thumbs
Also See for DESK-V000V:
- Instruction manual (12 pages) ,
- Instruction manual (2 pages) ,
- Instruction manual (4 pages)
Advertisement
Quick Links
36" Desk Riser
SKUS: DESK-V000V/VA/VD/VG/VN/VO/VW
Instruction Manual
ASSEMBLY VIDEO AVAILABLE:
Follow along step-by-step with our video walk through by scanning
the QR code with your mobile device or by following the product
link: vivo-us.com/products/desk-v000v
help@vivo-us.com
www.vivo-us.com
309-278-5303
Advertisement
Related Manuals for Vivo DESK-V000V
Summary of Contents for Vivo DESK-V000V
- Page 1 36” Desk Riser SKUS: DESK-V000V/VA/VD/VG/VN/VO/VW Instruction Manual ASSEMBLY VIDEO AVAILABLE: Follow along step-by-step with our video walk through by scanning the QR code with your mobile device or by following the product link: vivo-us.com/products/desk-v000v www.vivo-us.com help@vivo-us.com 309-278-5303...
- Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...
-
Page 3: Weight Capacity
Returns | Product Didn’t Work Out? We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense. -
Page 4: Package Contents
WEIGHT CAPACITY TOOLS NEEDED: 33lbs Phillips Screwdriver Scissors (15kg) PACKAGE CONTENTS Please consult the parts list below and ensure you have everything you need to assemble your product. If parts are missing or damaged, please contact us. A (x1) B (x2) C (x2) D (x1) Desk Riser... -
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1: Open Packaging Carefully remove the Desk Riser (A) from the packaging. TEAM LIFT WARNING: Impact Hazard! Moving Parts can Crush and Cut! A (x1) Desk Riser... - Page 6 STEP 2: Install Feet Extensions Flip Desk Riser (A) upside down, then attach Feet Extensions (B) to the frame using M5x10mm Screws (S-A). S-A (x10) B (x2) M5x10 Foot Extension...
- Page 7 STEP 3: Raise Desk Riser Press the handles on each side and lift Desk Riser (A). STEP 4: Mount Keyboard Brackets Mount Keyboard Brackets (C) to Keyboard Tray (D) using M5x10mm screws (S-A). C (x2) D (x1) S-A (x10) Keyboard Keyboard M5x10 Bracket...
- Page 8 STEP 5: Install Keyboard Tray Hang assembled keyboard tray onto pre-installed knobs, and tighten knobs to secure. NOTE: Make sure the keyboard brackets are curving towards the user, not towards the inside of the desk. STEP 6: Place Items on Desk Riser Place monitor, laptop and other items on desk surface.
- Page 9 STEP 7: Install Cable Clip Attach Cable Clip (S-B) to desk to manage keyboard and mouse cables. S-B (x1) Cable Clip STEP 8: Manage Cables Manage cables using Zip Ties (S-C). S-C (x3) Zipties...
- Page 10 ASSEMBLY COMPELTE Assembly is complete and your desk riser is now ready for use. Press both side levers to raise or lower your desk riser. When lowering without any weight on the desktop, lightly press down on riser as you lower it to allow for a smoother lowering process.
-
Page 11: Tension Adjustment
TENSION ADJUSTMENT If your desk riser lifts up or down too easily, or is too difficult, the gas spring cable can be adjusted to your desired tension. This adjustment is located in two places: 1. Levers: Behind both levers, under desktop. 2. - Page 12 TENSION ADJUSTMENT - CONT’D Option A: Desk Is Difficult to Raise/Lower | Increase Tension If the desk feels difficult to raise and lower, then you will need to increase the Gas Spring Cable is firmly pressed against tension. Gently pull the cable away from the Lever until the Inner Nut (2) the middle divider.
- Page 13 TENSION ADJUSTMENT - CONT’D Option B: Desk Raises/Lowers Too Easily | Decrease Tension If the desk is raising or lowering without the handle being pressed, then the tension needs to be is firmly pressed against the loosened. Gently push the cable towards the Lever the Outer Nut (1) middle divider.
- Page 14 WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve...
- Page 15 Call Us: 309-278-5303 Average Resolution Time: 5m 4s Chat Us: www.vivo-us.com Average Resolution Time: < 15m Email Us: help@vivo-us.com Average Resolution Time: 1HR 8M 23% within < 15m 38% within <...
- Page 16 LOVE YOUR NEW VIVO SETUP? Ready to share that new amazing setup? Want to brag about that amazing new ergonomic solution? Tag us in your photo! VIVO-us @vivo_us FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM LAST UPDATED: 09/20/2023 REV2.1LF...
