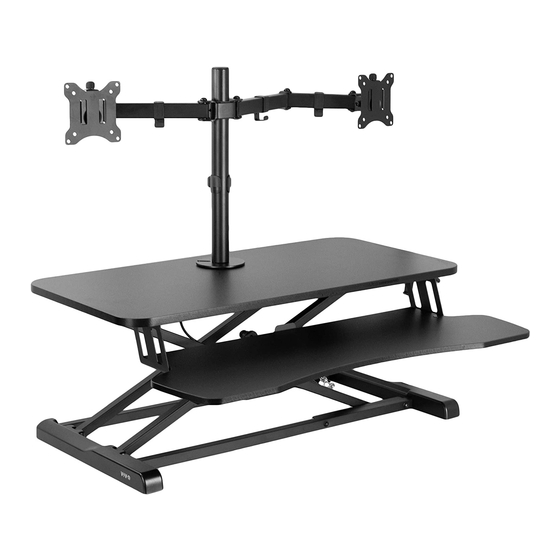

Black Desk Riser with Dual Monitor Mount
Instruction Manual
SKU: DESK-V000K-M2
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v000k-m2
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-V000K-M2
Summary of Contents for Vivo DESK-V000K-M2
- Page 1 Black Desk Riser with Dual Monitor Mount Instruction Manual SKU: DESK-V000K-M2 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v000k-m2 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. Failure to do so may result in serious injury. 17.6lbs 33lbs 4.4lbs Phillips (8 kg) (15kg) (2kg) Screwdriver PER SCREEN DESKTOP KEYBOARD TRAY ASSEMBLY STEPS STEP 1 Separate the sleeve nut w/ bolt (R) into R1 and R2. STEP 2 Apply pads (Q) to underside of keyboard tray. - Page 4 STEP 4 Raise the desk by squeezing the handles underneath the desk. STEP 5 Place keyboard tray (O) on metal brackets on desk (N). Secure keyboard tray to brackets using screws (R2) and tighten with a Phillips screwdriver. STEP 6 Apply cable clips (P) to underside of desk.
- Page 5 STEP 8 Apply rubber pads (L) to underside of stand base. Remove plug from desk surface (N). STEP 9 Position the pole (B) with stand base (I) over the grommet hole, and install to desktop using the hand bolt (J) with support plate (K).
- Page 6 STEP 11 (Continued) OPTION B: Curved / Recessed Back Monitor Install the VESA plates (C) to monitors using bolts (M-B or M-D), washers (M-E) and spacers (M-F). STEP 12 Slide the VESA plates (C) with monitors onto the arms (A). Secure using the knobs (H) with M3x8 bolts (G).
- Page 7 STEP 14 Use the cable clips (D, E) to organize cables. STEP 15 CAUTION: To prevent tipping, please be careful not to extend the arms too far forward or backward. STEP 16 Adjust desk height by squeezing the handle and pulling up or pushing down.
