Lightronics FXLD2512B5I6 Owner's Manual

Version 1.1
FEATURES AND SPECIFICATIONS
LEDS: 12, 25W each (RGBWA, 5 in 1)
Beam angle: 60ᵒ
Control system: DMX-512 + Stand Alone Modes
DMX channels: 5/9
DMX connectors: 3 pin XLR I/O
Refresh Rate: >3000 Hz
Voltage: 100 - 240 VAC 50/60Hz
Max power consumption: 330 Watts
Ingress Protection: IP20 - Indoor Use Only
Cooling: Intelligent Fans (2)
Body material: Sheet steel
Body color: Black
Size: 39.4"L x 5"W x 3.4"H
DESCRIPTION
The FXLD2512B5I6 is an RGBWA LED lighting fixture.
It is suitable for stage,
entertainment venues, and other artistic applications.
It has several stand-alone control modes and can
operate via a DMX-512 external signal.
INSTALLATION
LOCATION
Locate the unit indoors in a well ventilated area away
from moisture and heat. Keep the vent holes clear.
Holes are provided on the brackets to install a lighting
bar pipe clamp. Use a safety cable when hanging the
fixture.
POWER CONNECTIONS
RISK OF ELECTRIC SHOCK
The FXLD2512B5I6 has a blue turn and lock connector
for power input. A compatible power cable is provided
for connection to a 120 VAC, 15 Amp, 60Hz, grounded
service. Push the blue connector on the cable straight
into the blue connector on the unit and twist approx.
1/8 turn clockwise to latch it. The white turn and lock
connector on the unit is used to pass power on to
another FXLD2512B5I6 unit. A mating white connector
is also provided.
THE LINE CORD IS RATED FOR 7 AMPS MAXIMUM
THE SAFETY GROUND TERMINAL ON THE POWER
CABLE MUST BE USED.
www.lightronics.com
Lightronics Inc.
FXLD2512B5I6 LED FIXTURE
OWNER'S MANUAL
houses of worship,
CAUTION
509 Central Drive, Virginia Beach, VA 23454
DMX CONNECTIONS
A system using DMX control must be connected as a
chain of devices. In other words, the control signal
cable should proceed from the controller to the first
receiving device and then to others in one continuous
chain.
The fixture has a DMX IN and a DMX OUT connector
to be used to connect the chain. The control cable
should NOT be split into a multiple run star
arrangement with a cable running from the controller
directly to each receiving device pack.
DMX CONNECTOR PIN ASSIGNMENTS
This unit uses 3 pin XLR type connectors. The
FXLD2512B5I6 receives DMX on the 3 pin MALE
connector on one side of the unit. On the other side of
unit, the 3 pin FEMALE connector is used to connect to
the next DMX device on the control chain.
PIN #
1 DMX COMMON
2 DMX DATA -
3 DMX DATA +
DMX TERMINATION
A DMX chain should be terminated at the last receiving
device on the chain.
commonly available 1/4 Watt, 120 Ohm resistor across
the DATA - and DATA + wires at the last device. If you
have only a few fixtures very close together and a very
short run to the controller, then you may be able to
operate without the terminator.
OPERATION

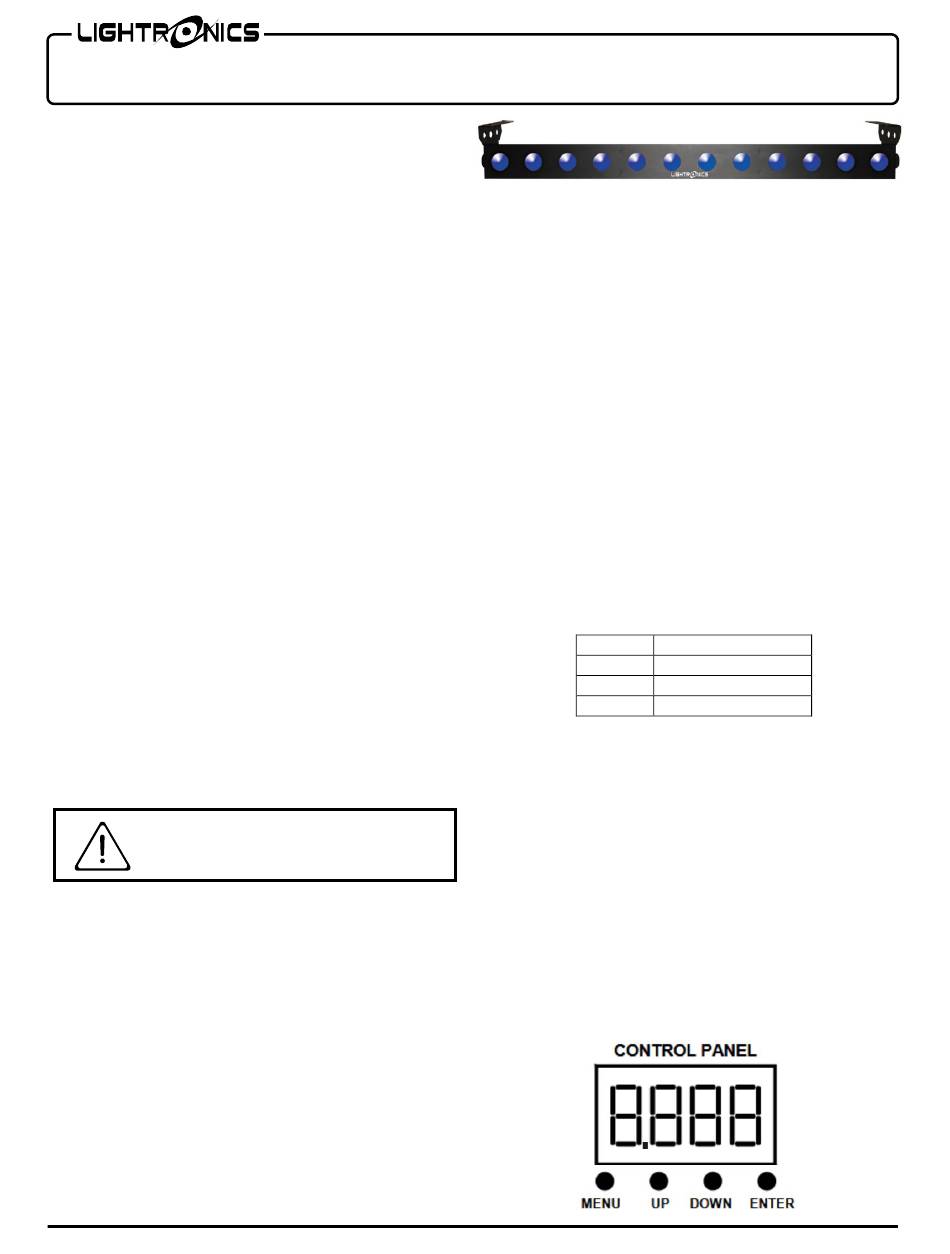

A control panel on the back of the unit is used to set
the operating options. It consists of an LED display
and four buttons (MENU, UP, DOWN, and ENTER).
Page 1 of 4
05/11/2022
SIGNAL NAME
This is done by installing a
757 486 3588
