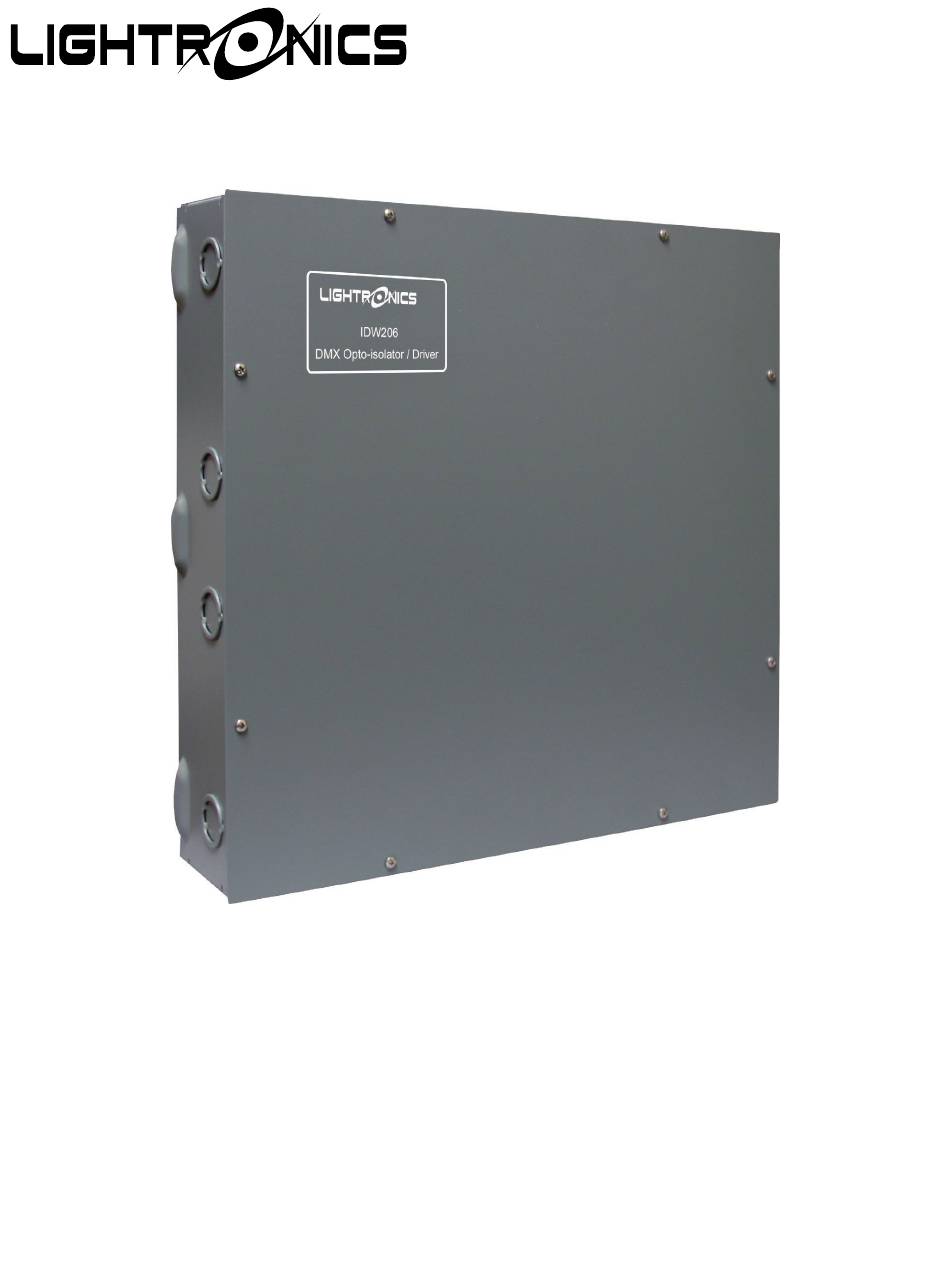

- Page 1 IDW206 DMX Optical Isolator 2 Universe - 6 Outputs Each Version 0.3 06/18/2023...

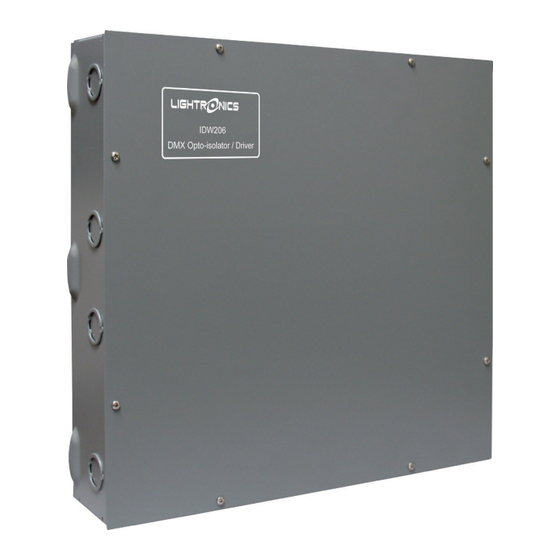

- Page 2 The unit is supplied in a wall mount metal box with DESCRIPTION appropriate mounting holes. Knockouts are provided for power and signal access. The IDW206 is an optically isolated DMX splitter for universes. Each universe The IDW206 is intended for INDOOR USE ONLY.
- Page 3 OPERATION POWER SUPPLY Operation is automatic when power is applied, and a The IDW206 operates from 120 VAC, 60Hz power and DMX input signal is connected. has a 1/4 Amp fuse. Power should be connected to the 3 pole terminal strip as shown in the diagram The circuit board contains a RED LED indicator which IDW206 FACE VIEW.
- Page 4 HANDLING OR REPLACING THE FUSE WARRANTY INFORMATION AND REGISTRATION – CLICK LINK BELOW The fuse is shown in the IDW206 FACE VIEW diagram. Replace the fuse ONLY with a 1/4 Amp, 250V, Fast Acting Fuse. The fuse is 1 1/4" long and www.lightronics.com/warranty.html...
