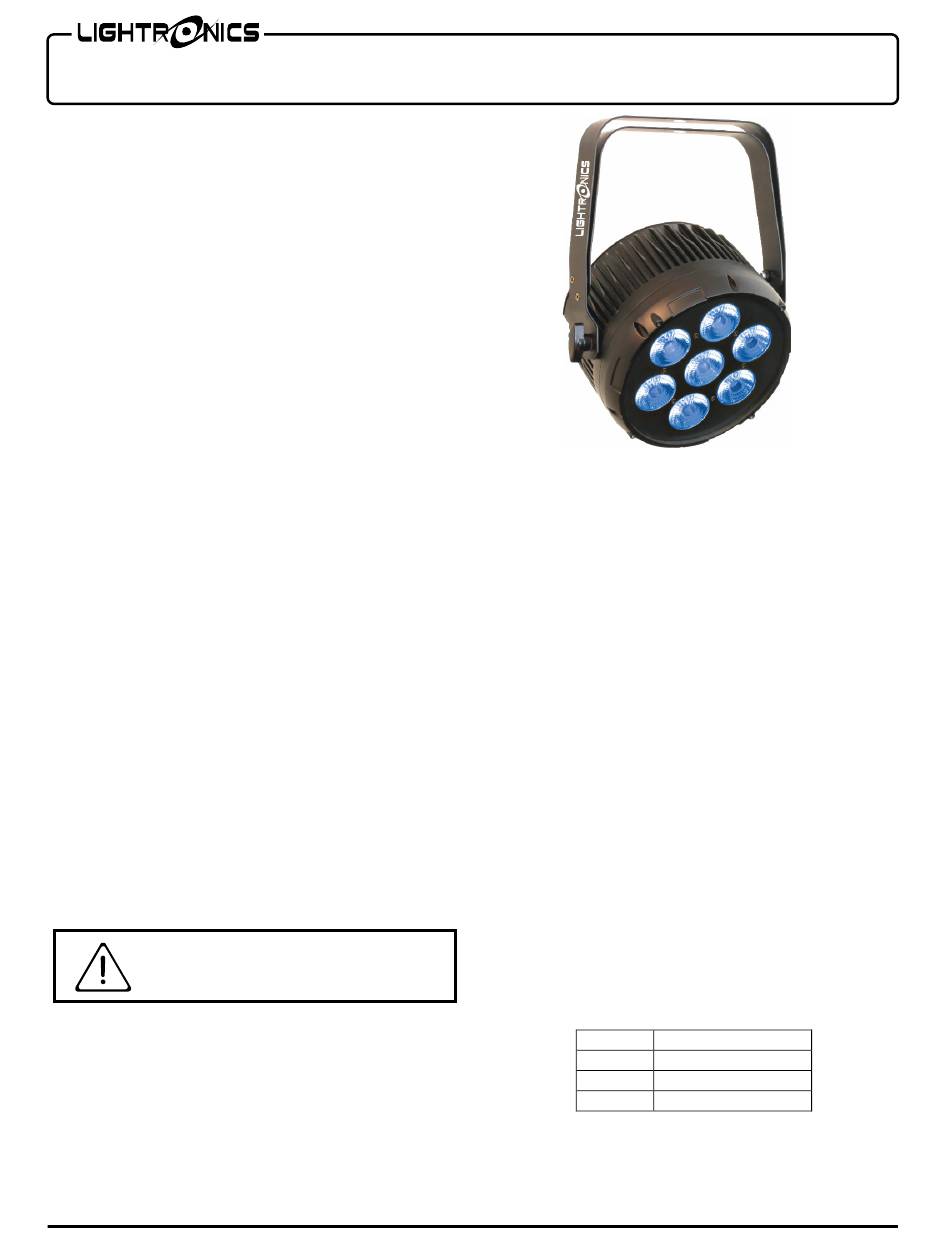

Lightronics FXLD157FR6I Owner's Manual

Version 1.1
FEATURES AND SPECIFICATIONS
LEDS: 7, 15W each (RGBWA+UV, 6in1)
White LED Color Temperature: 6500K
Beam angle: 25 º (15° Optional)
Control system: DMX-512 + Stand Alone Modes
DMX channels: 6/10
DMX connector: 3 pin XLR I/O
Refresh Rate: >3000 Hz
Voltage: 120 - 240 VAC 50/60Hz
Max power consumption: 105 Watts + Auto Switching
Power Supply
Ingress Protection: IP20 - Indoor Use Only
Cooling: Intelligent Fan
Body material: Die Cast Aluminum
Body color: Black
Size: 9.25"L x 4.65"W x 11.42"H (With Yoke)
Weight: 8.82 lbs. (4.0 kg)
DESCRIPTION
The FXLD157FR6I is a RGBWA+UV LED lighting
fixture. It is suitable for stage, houses of worship,
entertainment venues, and other artistic applications.
It has several stand-alone control modes and can
operate via a DMX-512 external signal.
A double yoke enables the fixture to be operated in
several positions.
INSTALLATION
LOCATION
Locate the unit indoors in a well ventilated area away
from moisture and heat. Keep the vent holes clear.
Holes are provided on the yokes to install a lighting bar
pipe clamp. Use a safety cable when hanging the
fixture.
POWER CONNECTIONS
RISK OF ELECTRIC SHOCK
The FXLD157FR6I has a blue turn and lock connector
for power input. A compatible power cable is provided
for connection to a 120 VAC, 15 Amp, 60Hz, grounded
service. Push the blue connector on the cable straight
into the blue connector on the unit and twist approx.
1/8 turn clockwise to latch it.
The white turn and lock connector on the unit is used
to pass power on to another FXLD157FR6I unit. A
www.lightronics.com
Lightronics Inc.
FXLD157FR6I LED FIXTURE
OWNER'S MANUAL
CAUTION
509 Central Drive, Virginia Beach, VA 23454
mating white connector is also provided.
THE LINE CORD IS RATED FOR 7 AMPS MAXIMUM.
THE SAFETY GROUND TERMINAL ON THE POWER
CABLE MUST BE USED.
DMX CONNECTIONS
A system using DMX control should be connected as a
chain of devices. In other words, the control signal
cable should proceed from the controller to the first
receiving device and then to others in one continuous
chain.
The fixture has a DMX IN and a DMX OUT connector
to be used to connect the chain. The control cable
should NOT be split into a multiple run star
arrangement with a cable running from the controller
directly to each receiving device.
DMX CONNECTOR PIN ASSIGNMENTS
The FXLD157FR6I uses 3 pin XLR connectors. DMX is
received on the MALE connector on the back of the
unit. The FEMALE connector is used to connect to the
next DMX device on the control chain.
The table below shows the pin assignments for the 3
pin DMX cable.
PIN #
1 DMX COMMON
2 DMX DATA -
3 DMX DATA +
DMX TERMINATION
A DMX chain should be terminated at the last receiving
device on the chain.
Page 1 of 4
05/11/2022
SIGNAL NAME
This is done by installing a
