Lightronics FXLE1530W Owner's Manual

Version 1.1
FEATURES AND SPECIFICATIONS
LEDs: 150 Watt Array. (Warm White)
Color Temp.: 3000 K
Beam Angle: 19º, 26º, 36º or 50º
Control System: DMX-512 + Stand Alone
DMX Channels: 1 or 2
DMX Connectors: 3 pin XLR I/O
Power Input: 100-230VAC, 50/60Hz
Max. Power Consumption: 180 Watts @ 120VAC
Standby Power Consumption: 5 Watts @ 120VAC
Ingress Protection: IP20 - Indoor Use Only
Body Material: All Metal Construction
Body Color: Black
Reflector: Glass
Gel Frame and Size "M" Gobo Holder Included
FX Accessory Slot
Sliding Yoke Assembly on 12.75" Track
Size: 28" L x 13.5" W x 20"H (with yoke)
Weight: 19 lbs.
DESCRIPTION

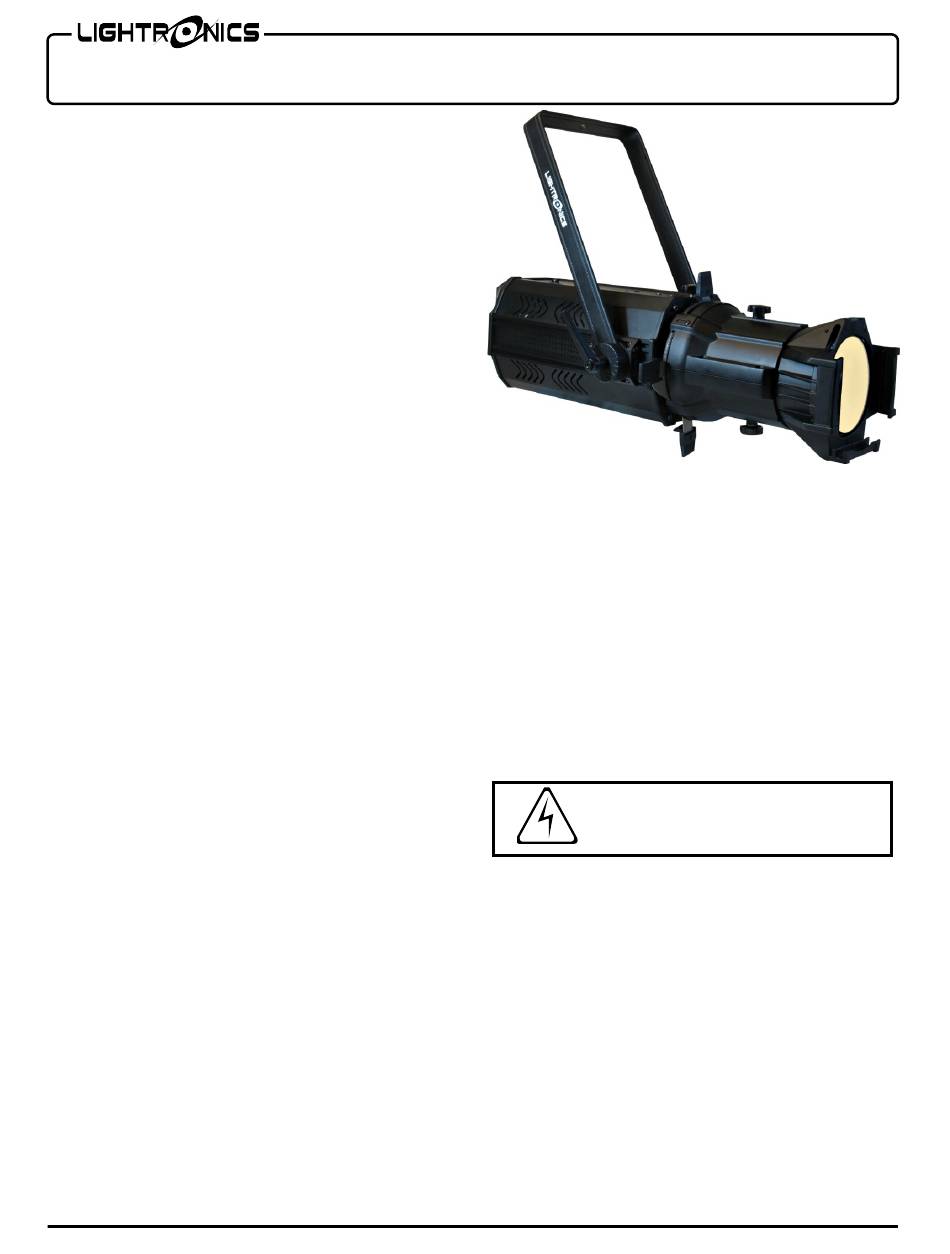

The FXLE1530W is an LED ellipsoidal fixture that is
suitable for stage, houses of worship, entertainment
venues and other artistic applications. It has automatic
stand-alone control modes and can operate via an
external DMX-512 signal.
A mounting yoke enables the fixture to be installed and
operated in various positions and orientations.
INSTALLATION
LOCATION
Locate the unit indoors in a well-ventilated area away
from moisture or heat. Maintain a minimum spacing of
20" between the unit and other objects. The maximum
ambient operating temperature is 40ºC (104ºF). Keep
the vent holes clear. Holes are provided on the yoke to
install a traditional lighting C-clamp for mounting on
batten pipe. Use a safety cable attached to the safety
eye when hanging the fixture.
YOKE ADJUSTMENT
To slide yoke along track, loosen 4 screws on both
side brackets with #2 Phillips screwdriver, adjust yoke
and retighten screws once in desired location.
LENS TUBE ADJUSTMENT
To focus beam, loosen the knobs on the top and
bottom of barrel, extend/retract lens tube as needed
and tighten knobs. Support lens tube in process.
www.lightronics.com
Lightronics Inc.
FXLE1530W LED FIXTURE
OWNER'S MANUAL
GOBO/FX SLOT ALIGNMENT
To rotate barrel, loosen the two 3mm hex socket head
cap screws on both sides of body behind shutter
handles. Loosen both adjustment knobs at top and
bottom of fixture behind the shutter handles. Once the
GOBO or FX slot is aligned, tighten screws and knobs.
POWER CONNECTIONS
The FXLE1530W has a blue turn and lock connector
for power input. A compatible power cable is provided
for connection to a 120 VAC, 15 Amp, 60Hz, grounded
service.
Push the blue connector on the cable straight into the
blue connector on the unit and twist approx. 1/8 turn
clockwise to latch it. Do not power the unit from a
dimmer pack. The white turn and lock connector on the
unit is used to pass power on to another FXLE1530W
unit. A mating white connector is also provided.
Power is applied once the power cord is connected to
a live power source. There is no on/off switch. Connect
power cord to fixture first, then outlet.
THE SAFETY GROUND PIN ON THE POWER CORD
MUST BE USED.
Connect a maximum of six FXLE1530W fixtures
together with power connectors using 120VAC.
