Lightronics FXLE3030W Owner's Manual

Version 1.1
FEATURES AND SPECIFICATIONS
LEDs: 300 Watt Array. (Warm White)
Color Temp.: 3000 K
Beam Angle: 19º or 26º or 36º (50º Optional)
Control System: DMX-512 + Stand Alone
DMX Channels: 1 or 2
DMX Connectors: 3 pin XLR I/O
Power Input: 100-230VAC, 50/60Hz
Max. Power Consumption: 300 Watts @ 120VAC
Ingress Protection: IP20 - Indoor Use Only
Body Material: All Metal Construction
Body Color: Black or White Available
Reflector: Glass
Gel Frame and Size "M" Gobo Holder Included
FX Accessory Slot
Sliding Yoke Assembly on 12.75" Track
Size: 28" L x 13.5" W x 20"H (with yoke)
Weight: 23 lbs.
DESCRIPTION

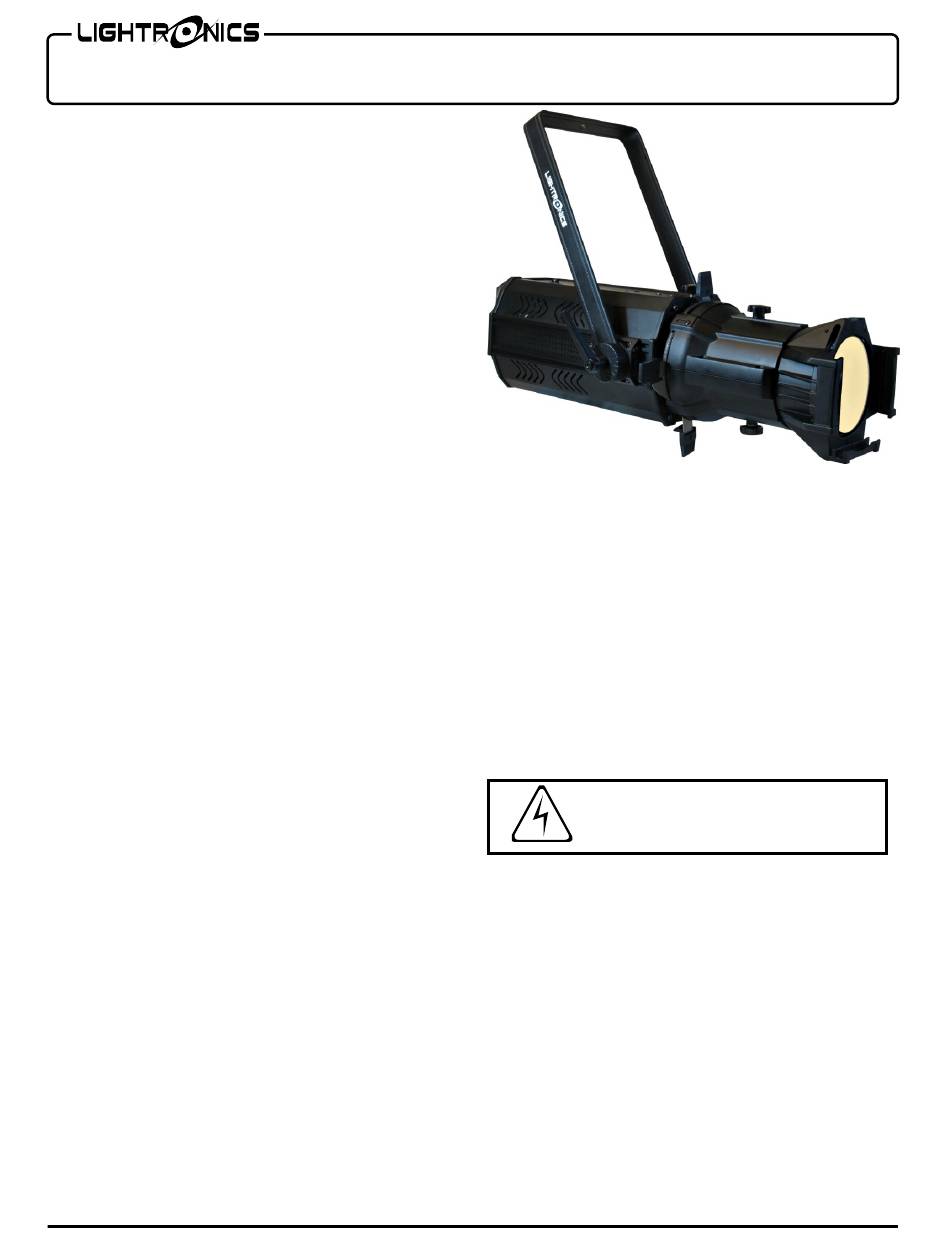

The FXLE3030W is an LED ellipsoidal fixture that is
suitable for stage, houses of worship, entertainment
venues and other artistic applications. It has automatic
stand-alone control modes and can operate via an
external DMX-512 signal.
A mounting yoke enables the fixture to be installed and
operated in various positions and orientations.
INSTALLATION
LOCATION
Locate the unit indoors in a well-ventilated area away
from moisture or heat. Maintain a minimum spacing of
20" between the unit and other objects. The maximum
ambient operating temperature is 40ºC (104ºF). Keep
the vent holes clear. Holes are provided on the yoke to
install a traditional lighting c-clamp for mounting on
batten pipe. Use a safety cable attached to the safety
eye when hanging the fixture.
YOKE ADJUSTMENT
To slide yoke along track, loosen 4 screws on both
side brackets with #2 Phillips screwdriver, adjust yoke
and retighten screws once in desired location.
LENS TUBE ADJUSTMENT
To focus beam, loosen the knobs on the top and
bottom of barrel, extend/retract lens tube as needed
and tighten knobs. Support lens tube in process.
www.lightronics.com
Lightronics Inc.
FXLE3030W LED FIXTURE
OWNER'S MANUAL
GOBO/FX SLOT ALIGNMENT
To rotate barrel, loosen the two 3mm hex socket cap
screws on both sides of body behind the shutter
handles. Loosen both adjustment knobs at top and
bottom of fixture behind the shutter handles. Once
GOBO or FX slot is aligned, retighten screws and
knobs.
POWER CONNECTIONS
The FXLE3030W has a blue turn and lock connector
for power input. A compatible power cable is provided
for connection to a 120 VAC, 15 Amp, 60Hz, grounded
service.
Push the blue connector on the cable straight into the
blue connector on the unit and twist approx. 1/8 turn
clockwise to latch it. Do not power the unit from a
dimmer pack. The white turn and lock connector on the
unit is used to pass power on to another FXLE3030W
unit. A mating white connector is also provided.
Power is applied once the power cord is connected to
a live power source. There is not an on/off switch.
Connect power cord to the fixture first, then the outlet.
When using 120VAC, only connect a maximum of
four FXLE3030W fixtures together with power
connectors.
THE SAFETY GROUND PIN ON THE POWER CORD
MUST BE USED.
509 Central Drive, Virginia Beach, VA 23454
DANGER
RISK OF ELECTRIC SHOCK
Page 1 of 3
02/08/2022
757 486 3588
