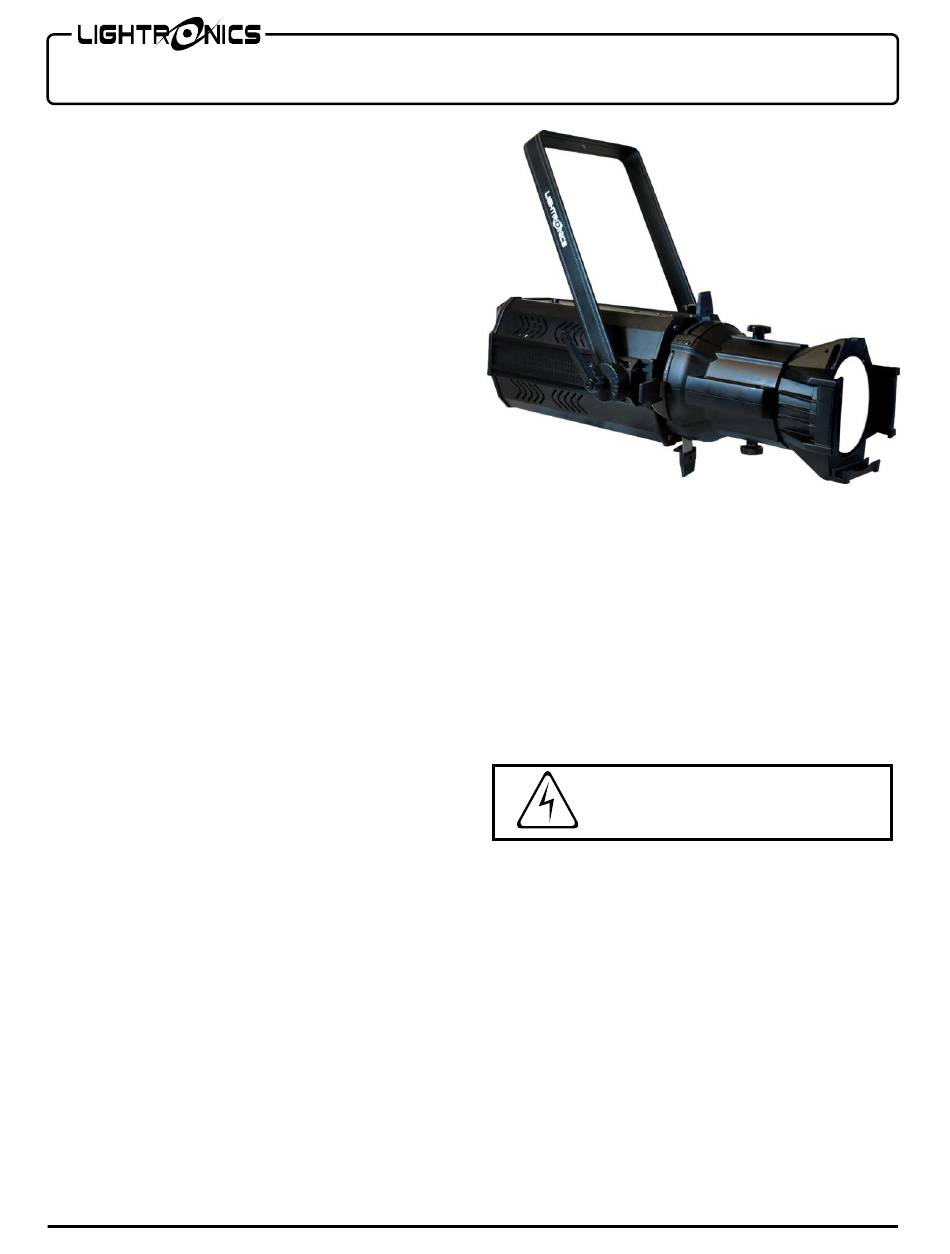

Lightronics FXLE3030W Owner's Manual

Version 1.0
FEATURES AND SPECIFICATIONS
LEDs: 300 Watt Array (Warm White)
Color Temperature: 3000 K
Beam Angle: 19º, 26º or 36º (50º Optional)
Control System: DMX512 + Stand Alone
DMX Channels: 1 or 2
DMX Connectors: 3 pin XLR I/O
Power Input: 100-230VAC, 50/60Hz
Max. Power Consumption: 300 Watts
Body Material: All Metal Construction
Body Color: Black or White Available
Reflector: Glass
Gel Frame and Size "M" Gobo Holder Included
FX Accessory Slot
Sliding Yoke Assembly on 12.75" Track
Size: 28"L x 13.5"W x 20"H (with yoke)
Weight: 23 lbs
DESCRIPTION

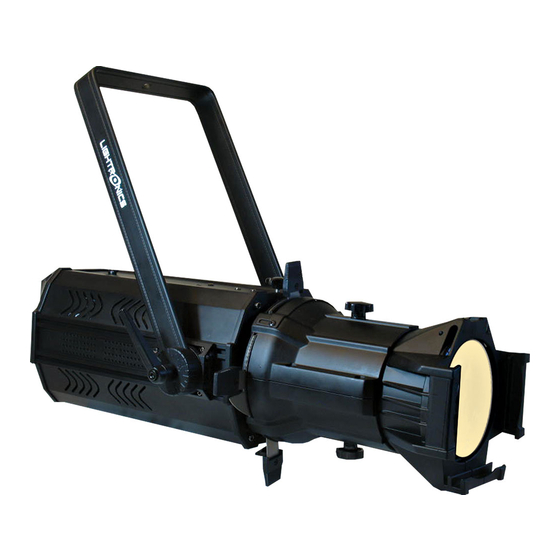

The FXLE3030W is an LED ellipsoidal fixture that is
suitable for stage, houses of worship, entertainment
venues and other artistic applications. It has automatic
stand-alone control modes and can operate via an
external DMX512 signal.
A mounting yoke enables the fixture to be installed and
operated in various positions and orientations.
INSTALLATION
LOCATION
The FXLE3030W is rated IP20 and is intended for
INDOOR USE ONLY.
Locate the unit in a well-ventilated area away from
moisture or heat. Maintain a minimum spacing of 20"
between the unit and other objects.
ambient operating temperature is 40ºC (104ºF). Keep
the vent holes clear. Holes are provided on the yoke to
install a traditional lighting c-clamp for mounting on
batten pipe. Use a safety cable attached to the safety
eye when hanging the fixture.
GOBO/FX SLOT ALIGNMENT
To rotate barrel, loosen the two 3mm hex socket cap
screws on both sides of body behind shutter handles.
Loosen both adjustment knobs at top and bottom of
fixture behind the shutter handles. Once GOBO or FX
slot is aligned, retighten screws and knobs.
www.lightronics.com
Lightronics Inc.
FXLE3030W LED FIXTURE
OWNERS MANUAL
YOKE ADJUSTMENT
To slide yoke along track, loosen 4 screws on both
side brackets with a #2 Phillips screwdriver, adjust
yoke and retighten screws once in desired location.
POWER CONNECTIONS
The FXLE3030W has a line cord for connection to a
100-230VAC, 50/60Hz, grounded service. Do not
power the unit from a dimmer pack.
The maximum
When using 120VAC, only connect a maximum of
four FXLE3030W fixtures together with power
connectors.
The safety ground pin on the power cord must be
used.
DMX CONNECTIONS
A system using DMX control should be connected as a
chain of devices.
cable should originate at the controller to the first
receiving device and then to others in a continuous
"daisy chain" fashion. An optically isolated DMX splitter
is recommended when installing the FXLE3030W in a
system with various other DMX devices.
509 Central Drive, Virginia Beach, VA 23454
DANGER
RISK OF ELECTRIC SHOCK
In other words the control signal
Page 1 of 4
09/23/2019
757 486 3588
