Lightronics FXLE1530W Owner's Manual

Version 1.0
FEATURES AND SPECIFICATIONS
LEDs: 150 Watt Array (Warm White)
Color Temperature: 3000 K
Beam Angle: 19º, 26º, 36º or 50º
Control System: DMX512 + Stand Alone
DMX Channels: 1 or 2
DMX Connectors: 3 pin XLR I/O
Power Input: 100-230VAC, 50/60Hz
Max. Power Consumption: 180 Watts @ 120VAC
Standby Power Consumption: 5 Watts @ 120VAC
Body Material: All Metal Construction
Body Color: Black
Reflector: Glass
Gel Frame and Size "M" Gobo Holder Included
FX Accessory Slot
Sliding Yoke Assembly on 12.75" Track
Size: 28"L x 13.5"W x 20"H (with yoke)
Weight: 19 lbs.
DESCRIPTION

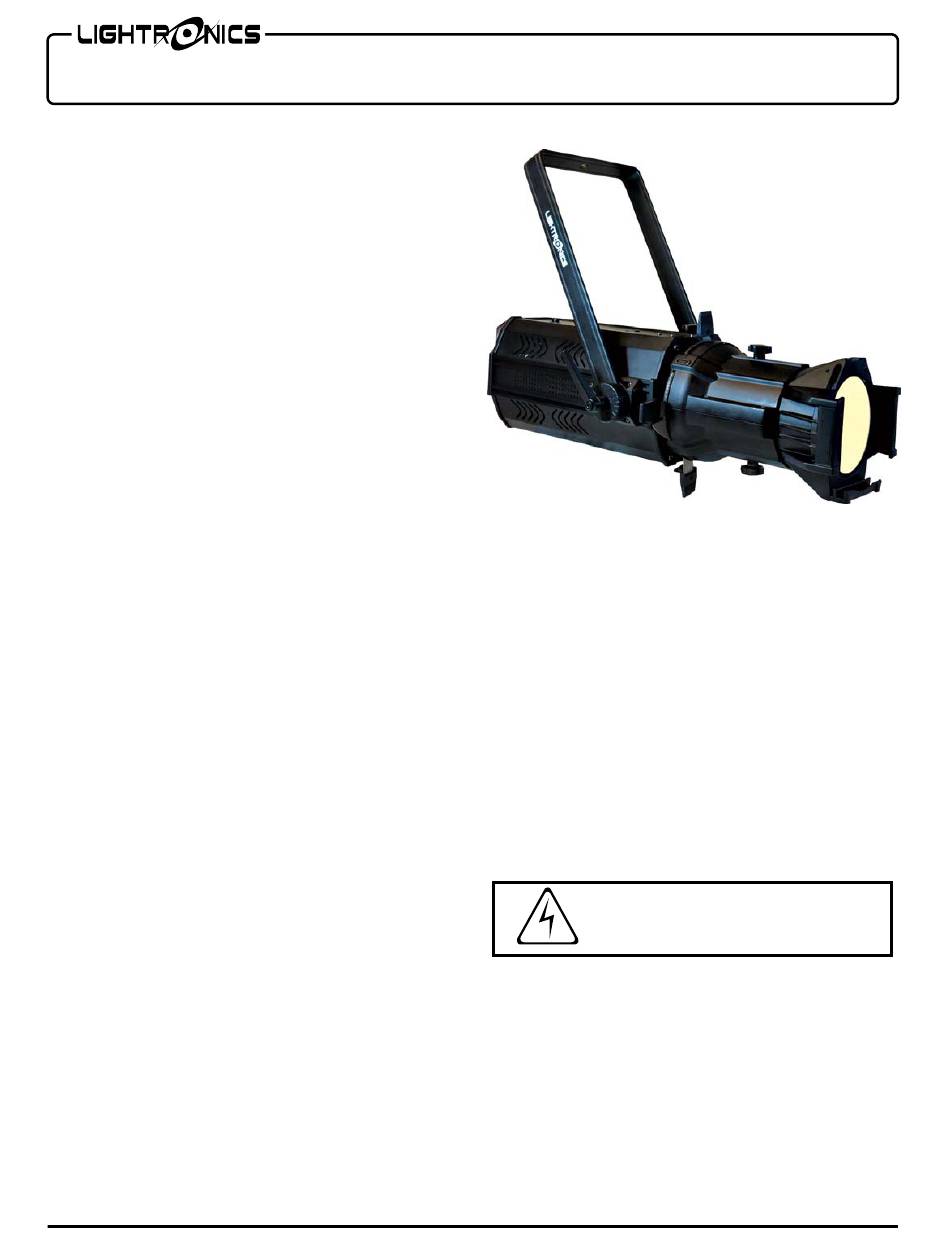

The FXLE1530W is an LED ellipsoidal fixture that is
suitable for stage, houses of worship, entertainment
venues and other artistic applications. It has automatic
stand-alone control modes and can operate via an
external DMX512 signal.
A mounting yoke enables the fixture to be installed and
operated in various positions and orientations.
INSTALLATION
LOCATION
The FXLE1530W is rated IP20 and is intended for
INDOOR USE ONLY.
Locate the unit in a well-ventilated area away from
moisture or heat. Maintain a minimum spacing of 20"
between the unit and other objects.
ambient operating temperature is 40ºC (104ºF). Keep
the vent holes clear. Holes are provided on the yoke to
install a traditional lighting C-clamp for mounting on
batten pipe. Use a safety cable attached to the safety
eye when hanging the fixture.
GOBO/FX SLOT ALIGNMENT
To rotate barrel, loosen the two 3mm hex socket head
cap screws on both sides of body behind shutter
handles. Loosen both adjustment knobs at top and
bottom of fixture behind the shutter handles. Once the
GOBO or FX slot is aligned, retighten screws and
knobs.
www.lightronics.com
Lightronics Inc.
FXLE1530W LED FIXTURE
OWNERS MANUAL
LENS TUBE ADJUSTMENT
To focus beam, loosen the knobs on the top and
bottom of barrel, extend/retract lens tube as needed for
intended beam and tighten knobs. Support lens tube in
process.
YOKE ADJUSTMENT
To slide yoke along track, loosen 4 screws on both
side brackets with a #2 Phillips screwdriver, adjust
yoke and retighten screws once in desired location.
POWER CONNECTIONS
The FXLE1530W has a line cord for connection to a
100-230 VAC, 50/60Hz, grounded service. Do not
power the unit from a dimmer pack.
The maximum
When using 120VAC, only connect a maximum of
six FXLE1530W fixtures together with power
connectors.
The safety ground pin on the power cord must be
used.
DMX CONNECTIONS
A system using DMX control should be connected as a
509 Central Drive, Virginia Beach, VA 23454
DANGER
RISK OF ELECTRIC SHOCK
Page 1 of 4
12/01/2020
757 486 3588
