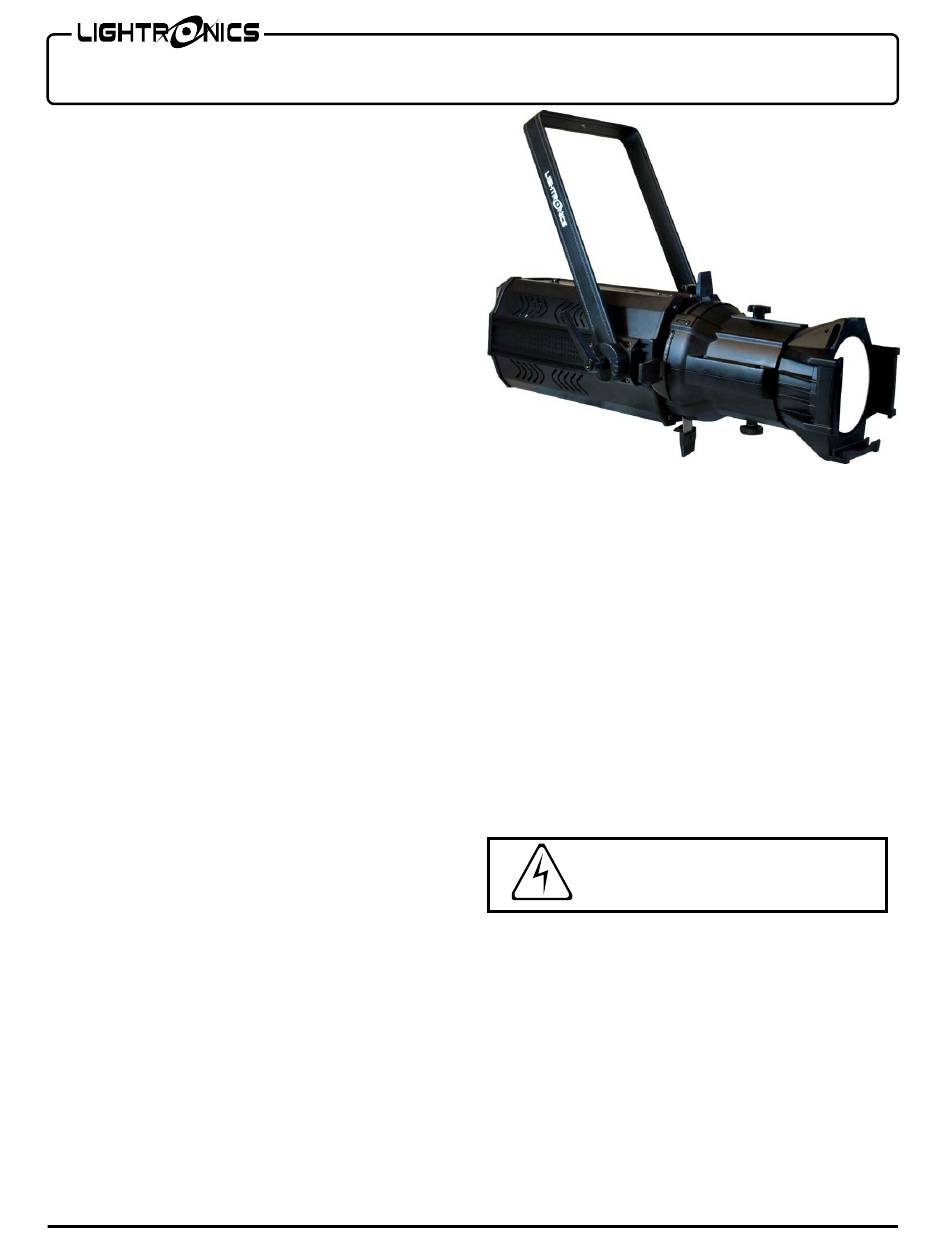

Lightronics FXLE30C4N Owner's Manual

Version 1.1
FEATURES AND SPECIFICATIONS
LEDs: 300 Watt 4-in-1 Quad-Color, RGBW array
White Color Temp.: 2950K-10800K
CRI: 93 CQS: 92
Beam Angle: 19º, 26º or 36º
Control System: DMX-512 + Stand Alone
DMX Channels: 4 or 9 channel mode
DMX Connectors: 3 pin XLR I/O
Power Input: 100-230VAC, 50/60Hz
Max. Power Consumption: 330 Watts @ 120VAC
Standby Power Consumption: 6 Watts @ 120VAC
Ingress Protection: IP20 - Indoor Use Only
Body Material: All Metal Construction
Body Color: Black or White Available
Reflector: Glass
Gel Frame and Size "B" Gobo Holder Included
FX Accessory Slot
Sliding Yoke Assembly on 12.75" Track
Size: 28" L x 13.5" W x 20"H (with yoke)
Weight: 23 lbs.
DESCRIPTION

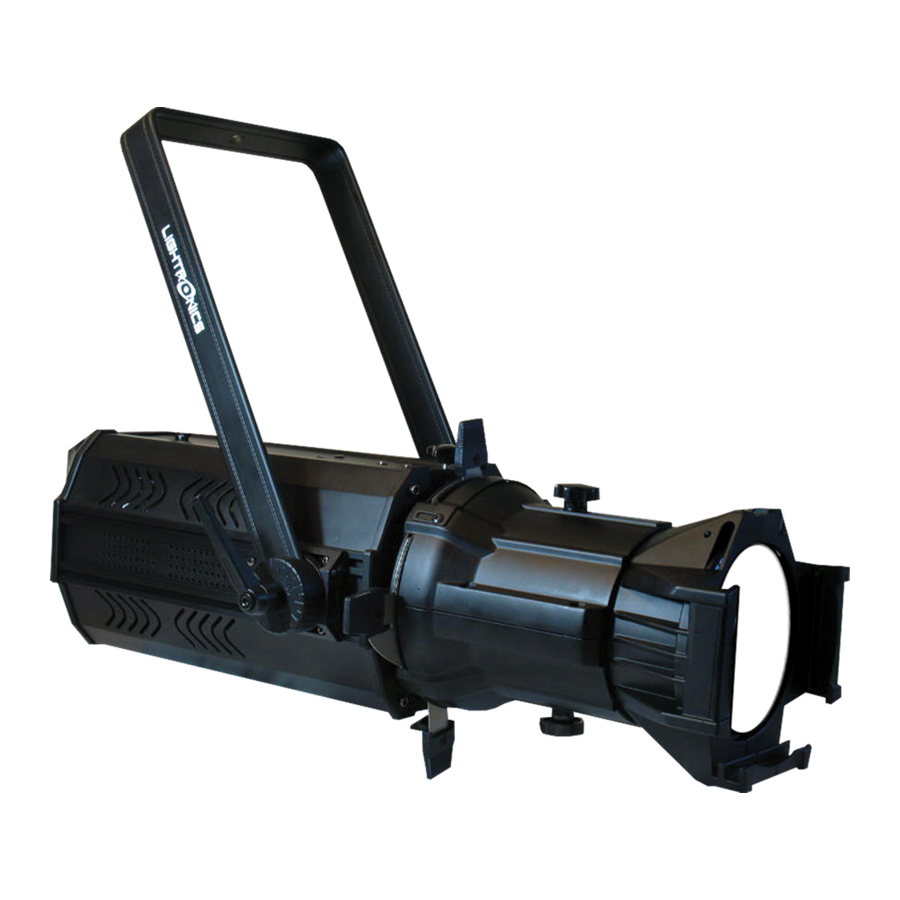

The FXLE30C4N is a four color LED ellipsoidal fixture
that is suitable for stage, houses of worship,
entertainment venues and other artistic applications. It
has automatic stand-alone control modes and can
operate via an external DMX-512 signal.
A mounting yoke enables the fixture to be installed and
operated in various positions and orientations.
INSTALLATION
LOCATION
Locate the unit indoors in a well-ventilated area away
from moisture or heat. Maintain a minimum spacing of
20" between the unit and other objects. The maximum
ambient operating temperature is 40ºC (104ºF). Keep
the vent holes clear. Holes are provided on the yoke to
install a traditional lighting C-clamp for mounting on
batten pipe. Use a safety cable attached to the safety
eye when hanging the fixture.
GOBO/FX SLOT ALIGNMENT
To rotate barrel, loosen the two 3mm hex socket head
screws on both sides of body behind the shutter
handles. Then loosen both adjustment knobs at top
and bottom of fixture behind the shutter handles. Once
GOBO or FX slot is aligned, retighten screws and
knobs.
www.lightronics.com
Lightronics Inc.
FXLE30C4N LED FIXTURE
OWNER'S MANUAL
LENS TUBE ADJUSTMENT
To focus beam, loosen the knobs at top and bottom of
the barrel, extend/retract tube as needed for intended
beam and tighten knobs. Support lens tube in process.
YOKE ADJUSTMENT
To slide yoke along track, loosen 4 screws on both
side brackets with #2 Phillips screwdriver, adjust yoke
and retighten screws once in desired position.
POWER CONNECTIONS
The FXLE30C4N has a blue turn and lock connector
for power input. A compatible power cable is provided
for connection to a 120 VAC, 15 Amp, 60Hz, grounded
service.
Push the blue connector on the cable straight into the
blue connector on the unit and twist approx. 1/8 turn
clockwise to latch it. Do not power the unit from a
dimmer pack. The white turn and lock connector on the
unit is used to pass power on to another FXLE30C4N
unit. A mating white connector is also provided.
The safety ground pin on the power cord must be
used.
When using 120VAC, only connect a maximum of
four FXLE30C4N fixtures together with power
connectors.
509 Central Drive, Virginia Beach, VA 23454
DANGER
RISK OF ELECTRIC SHOCK
Page 1 of 4
