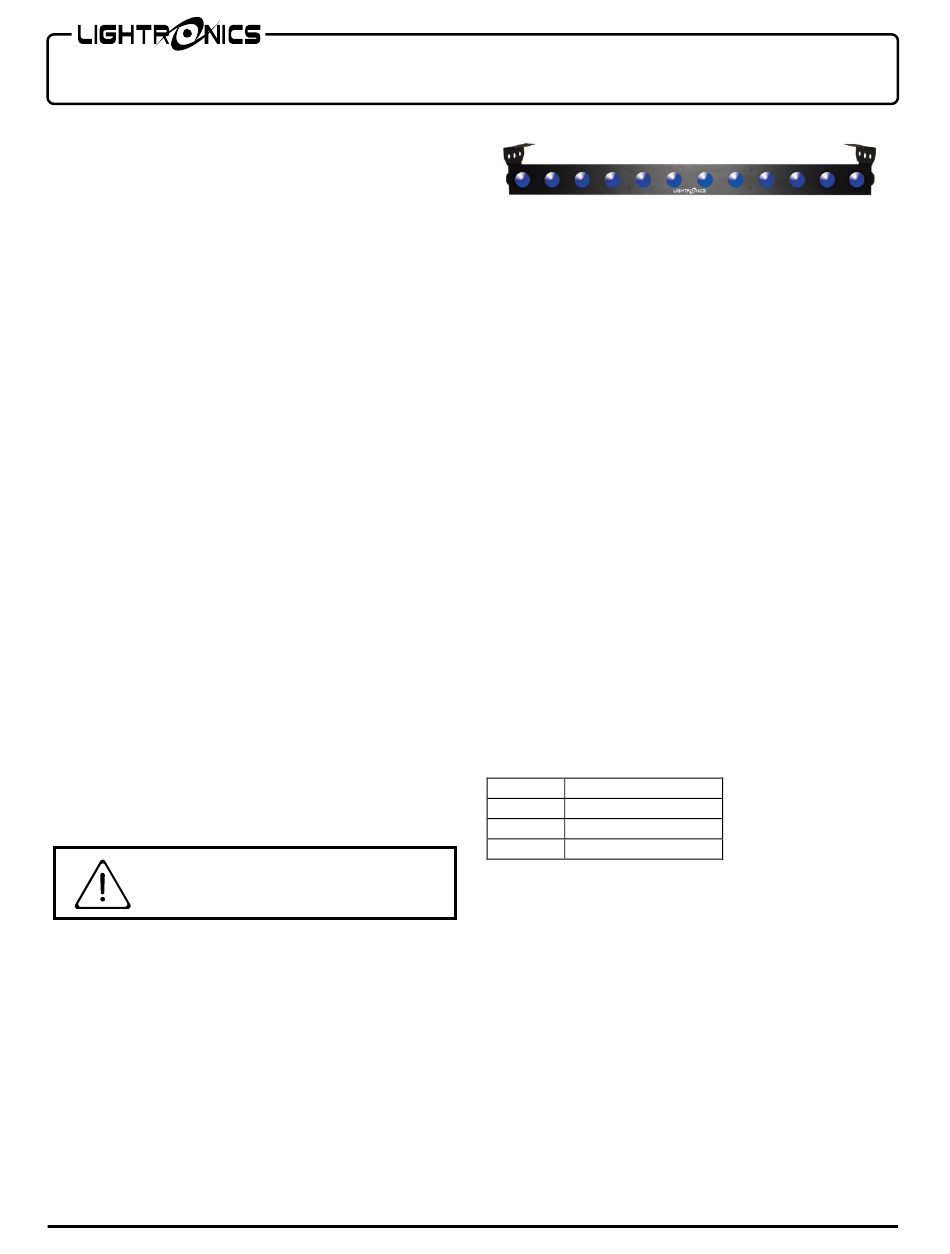

Lightronics FXLD2512B5I6 Owner's Manual

Version 1.0
FEATURES AND SPECIFICATIONS
LEDS: 12, 25W each (RGBWA, 5in1)
Beam angle: 60°
Control system: DMX512 + Stand Alone Modes
DMX channels: 5/9
DMX connectors: 3 pin XLR I/O
Refresh Rate: >3000 Hz
Voltage: 100 - 240 VAC 50/60Hz
Max power consumption: 330 Watts
Cooling: Intelligent Fan
Body material: Sheet steel
Body color: Black
Size: 39.4"L x 5"W x 3.4"H
DESCRIPTION
The FXLD2512B5I6 is an RGBWA LED lighting fixture. It
is suitable for stage, houses of worship, entertainment
venues, and other artistic applications. It has several stand-
alone control modes and can operate via a DMX512 external
signal.
INSTALLATION
LOCATION
The FXLD2512B5I6 is rated IP20 and is intended for
INDOOR USE ONLY.
Locate the unit in a well ventilated area away from moisture
and heat. Keep the vent holes clear. Holes are provided on
the brackets to install a lighting bar pipe clamp. Use a safety
cable when hanging the fixture.
POWER CONNECTIONS
RISK OF ELECTRIC SHOCK
The FXLD2512B5I6 has a blue turn and lock connector for
power input. A compatible power cable is provided for
connection to a 120 VAC, 15 Amp, 60Hz, grounded service.
Push the blue connector on the cable straight into the blue
connector on the unit and twist approx. 1/8 turn clockwise to
latch it. The white turn and lock connector on the unit is
used to pass power on to another FXLD2512B5I6 unit. A
mating white connector is also provided.
Caution is advised since the line cord is rated for approx. 7
Amps maximum.
www.lightronics.com
Lightronics Inc.
FXLD2512B5I6 LED FIXTURE
OWNERS MANUAL
CAUTION
509 Central Drive, Virginia Beach, VA 23454
THE SAFETY GROUND TERMINAL ON THE POWER
CABLE MUST BE USED.
DMX CONNECTIONS
A system using DMX control must be connected as a chain
of devices. In other words, the control signal cable should
proceed from the controller to the first receiving device and
then to others in a continuous "daisy chain" fashion.
The fixture has a DMX IN and a DMX OUT connector to be
used to connect the chain. The control cable should NOT be
split into a multiple run star arrangement with a cable
running from the controller directly to each receiving device
pack.
DMX CONNECTOR PIN ASSIGNMENTS
There are two different connectors which can be used for
DMX control. They are both XLR type connectors.
This unit uses 3 pin XLR type connectors. The
FXLD2512B5I6 receives a DMX signal on the 3 pin MALE
connector on one side of the unit. On the other side of unit,
the 3 pin FEMALE connector is used to connect to the next
DMX device on the control chain.
3 Pin Pinout
PIN # SIGNAL NAME
1 DMX COMMON
2 DMX DATA -
3 DMX DATA +
DMX TERMINATION
A DMX chain should be terminated at the last receiving
device on the chain. This is done by installing a commonly
available 1/4 Watt, 120 Ohm resistor across the DATA - and
DATA + wires at the last device. If you have only a few
fixtures very close together and a very short run to the
controller then you may be able to operate without the
terminator.
