Version 0.1

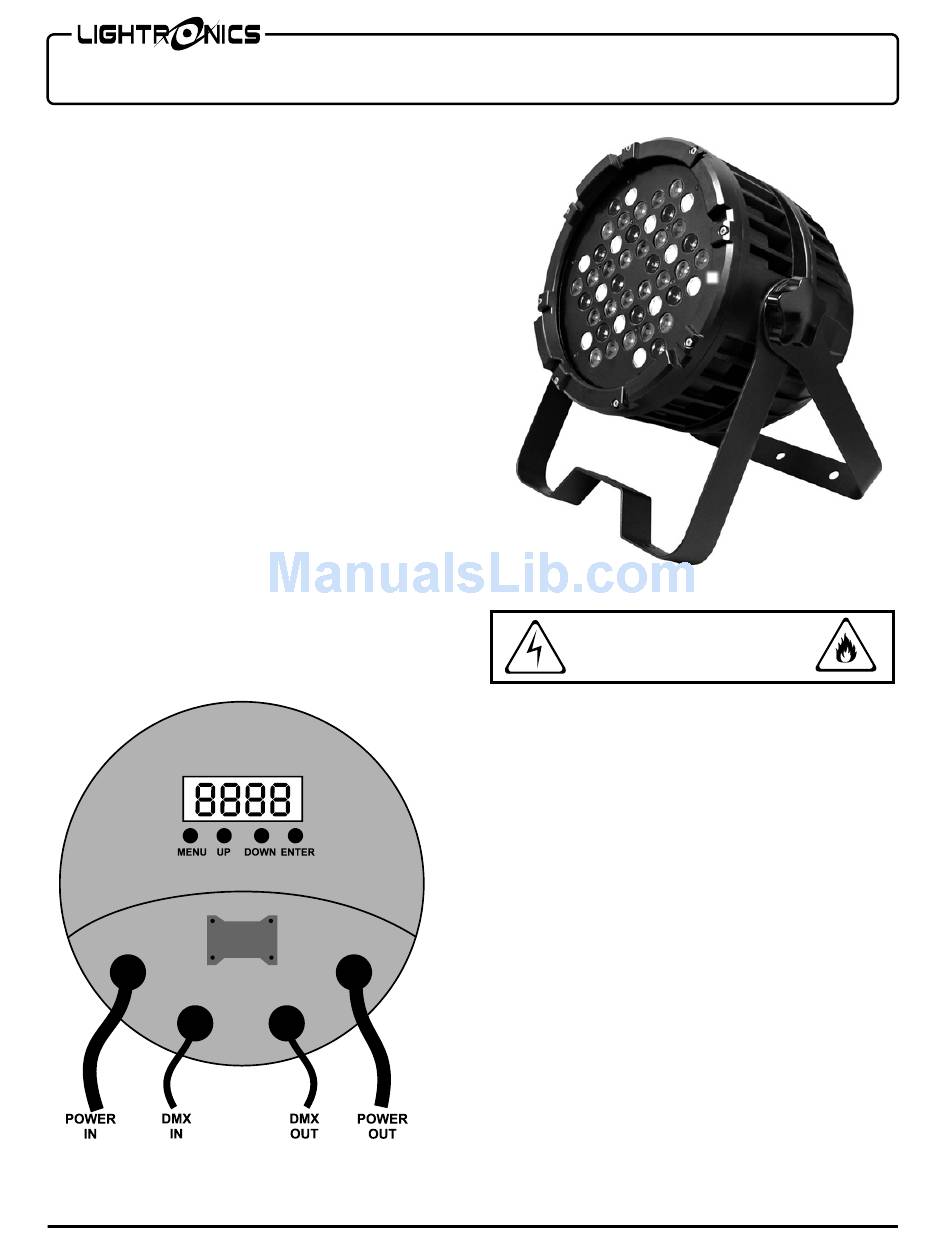

FEATURES AND SPECIFICATIONS
LEDS: 48 Five Watt LEDs (RGBW)
Beam angle: 25 º
Control system: DMX-512 + Stand Alone
DMX channels: 3, 4, 5, or 8
DMX connectors: 3 pin
Voltage: 100 - 250 VAC, 50/60Hz
Max power consumption: 300 Watts
IP Rating: IP 65
Body Size: 9 3/4"D x 10 3/4"W x 10 3/4"H
Body material: Die Cast Aluminum
Body color: Black
Weight: 26.4 lbs
DESCRIPTION
The FXLD548C4O is a RGBW LED lighting fixture.
It is suitable for stage, disco, night club, and other
artistic applications. It has several stand alone control
modes, a master/slave mode, and can operate via a
DMX-512 external signal.
A double yoke enables the fixture to be operated in
several positions.
INSTALLATION
www.lightronics.com
Lightronics Inc.
FXLD548C4O LED FIXTURE
OWNERS MANUAL
LOCATION
The FXLD548C4O is rated IP65 and can be used
outdoors. The maximum operating temp. is 104 deg F.
Locate the unit in a well ventilated area. The unit can
be run in any position as long as ventilation is present.
Keep the unit at least 18" from any flammable
materials.
Holes are provided on the yokes to install a lighting bar
pipe clamp. Use a safety cable if hanging the fixture.
POWER CONNECTIONS
The FXLD548C4O has a power input cable and a
power adapter cable for connection to a 120 VAC, 15
Amp, 60Hz, grounded electrical service.
The unit also has a power output cable. This cable can
be used to supply power to another nearby
FXLD548C4O. You can power a MAXIMUM of 6
fixtures this way.
The power cable ground terminals must be used.
509 Central Drive Virginia Beach, Va 234354
DANGER
RISK OF ELECTRIC SHOCK
RISK OF FIRE
Page 1 of 6
02/15/2012
757 486 3588
