Crestron DM-TX-200-C-2G Quick Start

DM-TX-200-C-2G
Wall Plate DigitalMedia 8G+® Transmitter 200

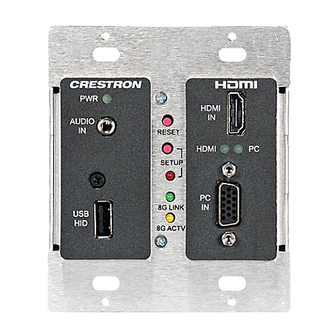

The Crestron® DM-TX-200-C-2G
provides a remote wall plate or floor box input connection for HDMI® and
VGA sources as part of a complete DigitalMedia™ System. It includes a
USB HID device port, allowing a mouse/keyboard to be connected for
controlling a computer or other host device at a different location. The
DM-TX-200-C-2G mounts in a double-gang electrical box.
In the Box
1 DM-TX-200-C-2G,
Wall Plate DigitalMedia 8G+ Transmitter 200
Additional Items
4 Screw, #6-32 x 3/4 in., Truss Head, Combo (2009211)
is a DigitalMedia 8G+® transmitter that

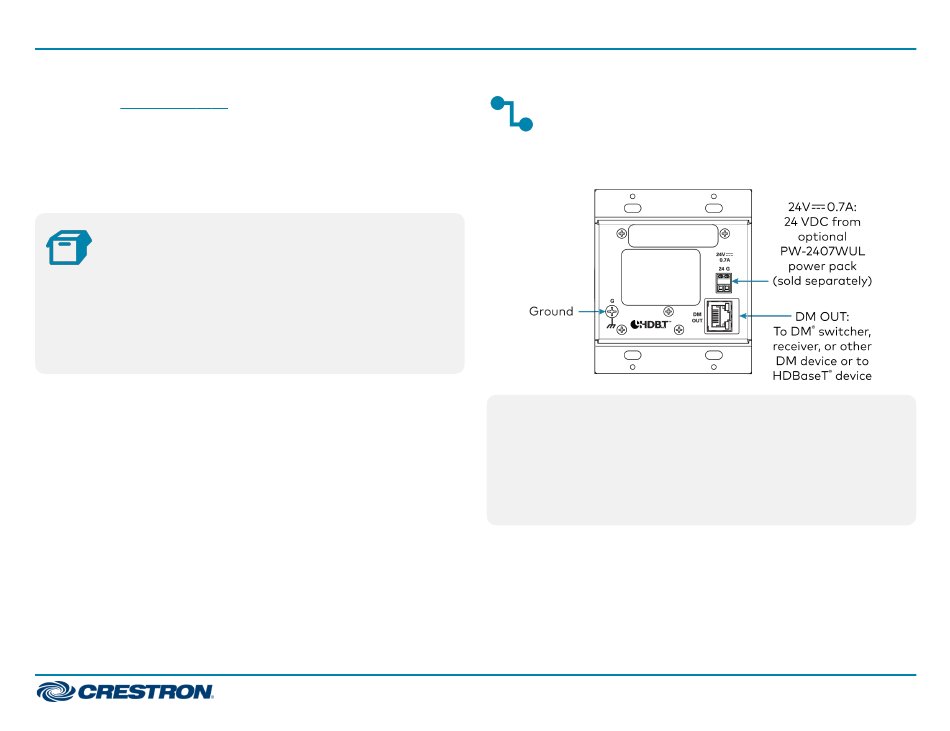

Connect the Rear Panel
Connect the rear panel of the transmitter before installing the unit into
an electrical box (not included) or floor box (not included).
NOTE: The DM OUT port is a Power over DM (PoDM) and HDBaseT®
PoE (Power over Ethernet) powered device (PD) port. To receive PoDM
or HDBaseT PoE, the DM-TX-200-C-2G requires a connection to a
DigitalMedia switcher or other equipment that has a PoDM or
HDBaseT PoE power sourcing equipment (PSE) port. Any wiring
connected to a PoDM or HDBaseT PoE PSE port is for intrabuilding
use only and should not be connected to a line that runs outside of the
building in which the PSE is located.
Quick Start
1
