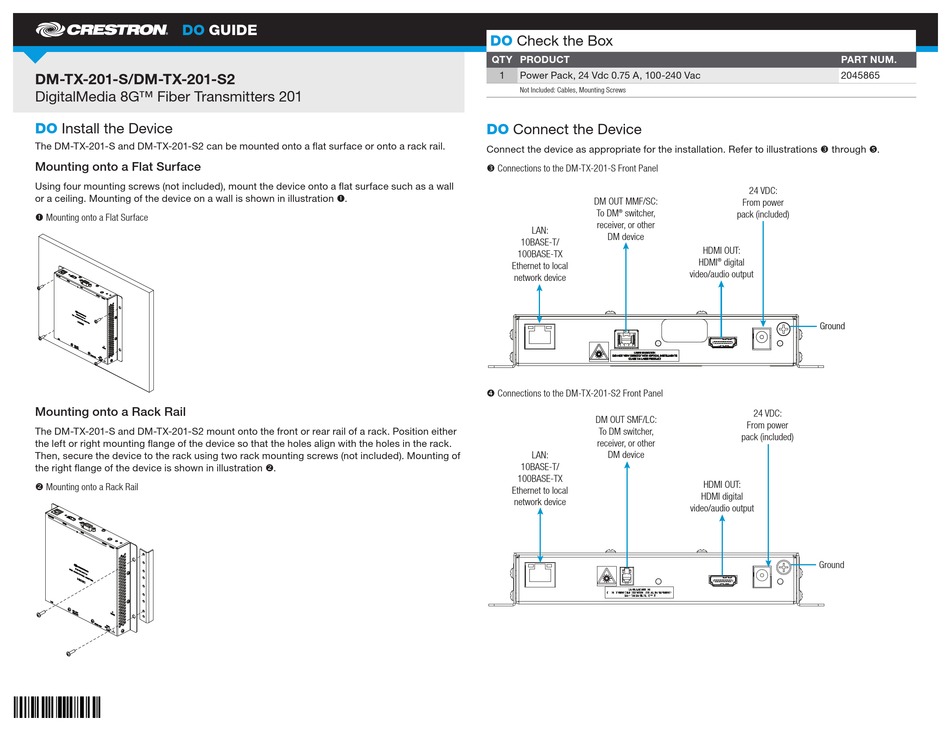

DO GUIDE

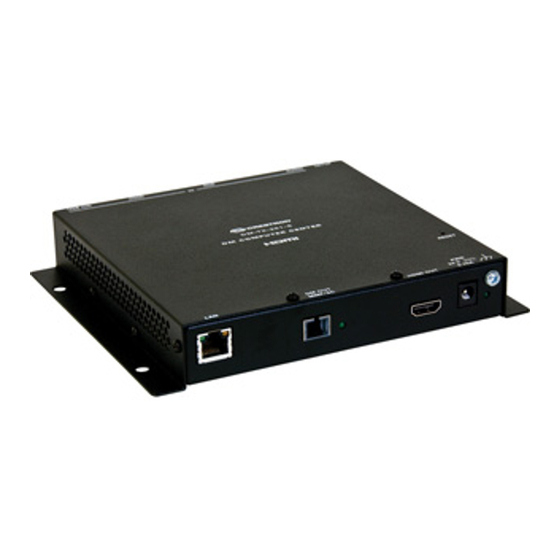

DM-TX-201-S/DM-TX-201-S2
DigitalMedia 8G™ Fiber Transmitters 201
DO Install the Device
The DM-TX-201-S and DM-TX-201-S2 can be mounted onto a flat surface or onto a rack rail.
Mounting onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat surface such as a wall
or a ceiling. Mounting of the device on a wall is shown in illustration .
 Mounting onto a Flat Surface
Mounting onto a Rack Rail
The DM-TX-201-S and DM-TX-201-S2 mount onto the front or rear rail of a rack. Position either
the left or right mounting flange of the device so that the holes align with the holes in the rack.
Then, secure the device to the rack using two rack mounting screws (not included). Mounting of
the right flange of the device is shown in illustration .
 Mounting onto a Rack Rail
DO Check the Box
QTY PRODUCT
1 Power Pack, 24 Vdc 0.75 A, 100-240 Vac
Not Included: Cables, Mounting Screws
DO Connect the Device
Connect the device as appropriate for the installation. Refer to illustrations  through .
 Connections to the DM-TX-201-S Front Panel
DM OUT MMF/SC:
To DM switcher,
®
receiver, or other
LAN:
DM device
10BASE-T/
100BASE-TX
Ethernet to local
network device
 Connections to the DM-TX-201-S2 Front Panel
DM OUT SMF/LC:
To DM switcher,
receiver, or other
LAN: DM device
10BASE-T/
100BASE-TX
Ethernet to local
network device
PART NUM.
2045865
24 VDC:
From power
pack (included)
HDMI OUT:
HDMI digital
®
video/audio output
Ground
24 VDC:
From power
pack (included)
HDMI OUT:
HDMI digital
video/audio output
Ground
