DO GUIDE

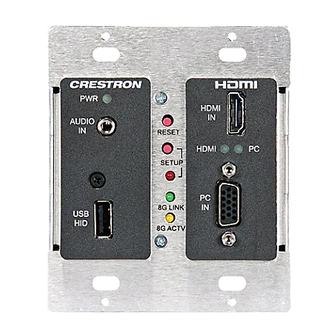

DM-TX-200-C-2G
Wall Plate DigitalMedia 8G+

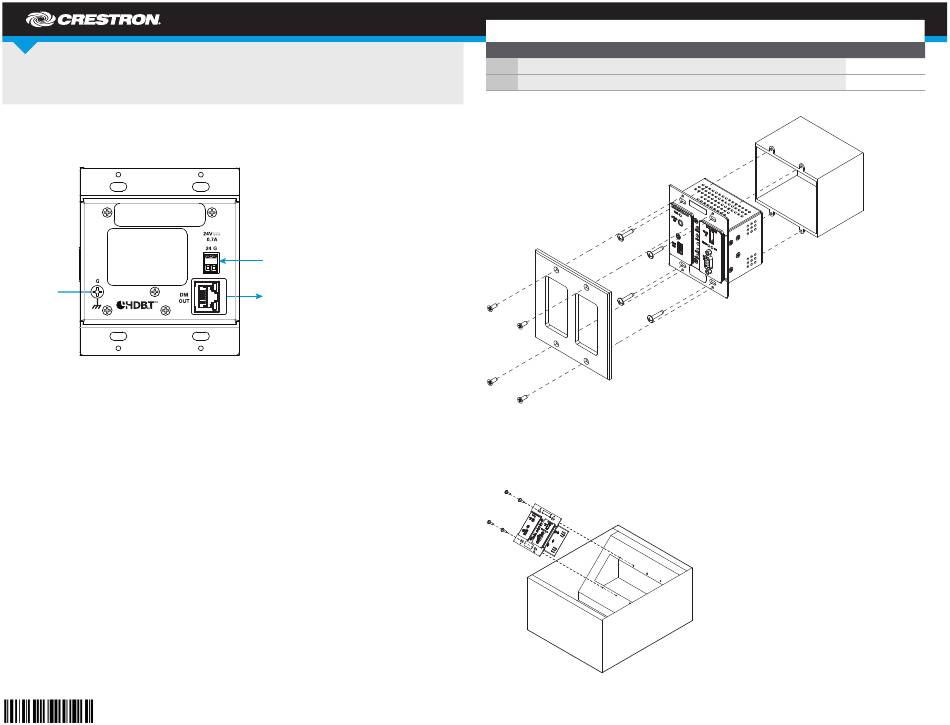

DO Make Connections to the Rear Panel
Make connections to the rear panel of the Crestron
into an electrical box (not included) or floor box (not included).
Ground
NOTE: The DM OUT port is a Power over DM (PoDM) and HDBaseT
powered device (PD) port. To receive PoDM or HDBaseT PoE, the DM-TX-200-C-2G requires a
connection to a DigitalMedia™ switcher or other equipment that has a PoDM or HDBaseT PoE
power sourcing equipment (PSE) port. Any wiring that is connected to a PoDM or HDBaseT PoE
PSE port is for intrabuilding use only and should not be connected to a line that runs outside of
the building in which the PSE is located.
DO Install the DM-TX-200-C-2G
Install the DM-TX-200-C-2G into a 2-gang electrical box or into a 6-inch floor box.
Installation into an Electrical Box
Install the DM-TX-200-C-2G into a 2-gang electrical box in a wall, floor, or ceiling. A minimum
mounting depth of 2-1/2 inches (64 mm) is required.
To install the DM-TX-200-C-2G into an electrical box, do the following:
1. Using a Phillips head screwdriver, attach the DM-TX-200-C-2G to the electrical box using
the four included #6-32 x 3/4-inch truss combo head screws.
2. Attach a decorator-style faceplate (not included) to the front panel of the DM-TX-200-C-2G
using four screws (not included).
Transmitter 200
®
DM-TX-200-C-2G before installing the unit
®
24 Vdc from
power pack
(included)
To DM ® switcher,
receiver, or other
DM device or to
HDBaseT ® device
PoE (Power over Ethernet)
®
DO Check the Box
QTY PRODUCT
1 Power Pack, 24 Vdc 0.75 A, 100-240 Vac
4 Screw, #6-32 x 3/4", Truss Head, Combo
Installation into a Floor Box
Install the DM-TX-200-C-2G into a 2-gang opening in a 6-inch (153 mm) deep floor box.
Using a Phillips head screwdriver, attach the DM-TX-200-C-2G to an installed floor box using
the four included #6-32 x 3/4-inch truss combo head screws.
PART NUM.
2045866
2009211
