DM-TX-201-C
DigitalMedia 8G+® Transmitter 201

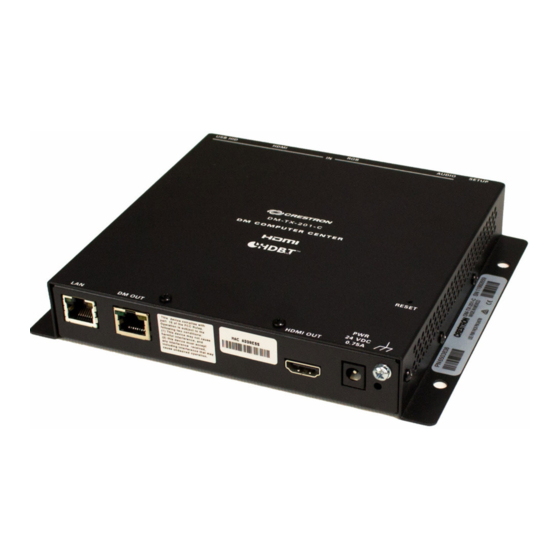

The Crestron®
DM-TX-201-C
provides a versatile interface for computers
and high-definition AV sources as part of a complete Crestron
DigitalMedia™ system. It functions as a DM 8G+® transmitter and
switcher, providing HDMI®, VGA, and analog audio inputs along with
Ethernet and USB HID ports for a total connectivity solution.
In the Box
1
DM-TX-201-C, DigitalMedia 8G+® Transmitter 201
Install the Transmitter
The DM-TX-201-C can be mounted onto a flat surface or onto a rack rail.
Mount onto a Flat Surface
Using four mounting screws (not included), mount the device onto a flat
surface such as a wall or a ceiling.
Quick Start
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the DM-TX-201-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Crestron DM-TX-201-C

Summary of Contents for Crestron DM-TX-201-C

  • Page 1 DigitalMedia™ system. It functions as a DM 8G+® transmitter and switcher, providing HDMI®, VGA, and analog audio inputs along with The DM-TX-201-C can be mounted onto a flat surface or onto a rack rail. Ethernet and USB HID ports for a total connectivity solution.

  • Page 2: Connect The Transmitter

    Quick Start DM-TX-201-C DigitalMedia 8G+® Transmitter 201 Mount onto a Rack Rail The DM-TX-201-C can be mounted onto a front or rear rack rail. To Connect the Transmitter mount the device: Connect the device as required for the application. 1. Position either of the mounting flanges so that the holes align with the holes in the rack rail.
  • Page 3 Quick Start DM-TX-201-C DigitalMedia 8G+® Transmitter 201 Front and Rear Panel Connections...

  • Page 4: Upgrade The Firmware

    DigitalMedia 8G+® Transmitter 201 Upgrade the Firmware Determine the IP Address Before using the device, upgrade the firmware. The latest firmware can be The physical configuration of the DM-TX-201-C within a DigitalMedia 8G+ downloaded from the DM-TX-201-C product page on the Crestron system determines how the IP address of the transmitter is set: website (www.crestron.com).
  • Page 5 Service Providers (CSPs) under a limited nonexclusive, nontransferable Software Development Tools License Agreement. Crestron product operating system software is licensed to Crestron dealers, CSPs, and end-users under a separate End-User License Agreement. Both of these Agreements can be found on the Crestron website at www.crestron.com/legal/software_license_agreement. www.crestron.com/model/6503838 The product warranty can be found at www.crestron.com/warranty.
