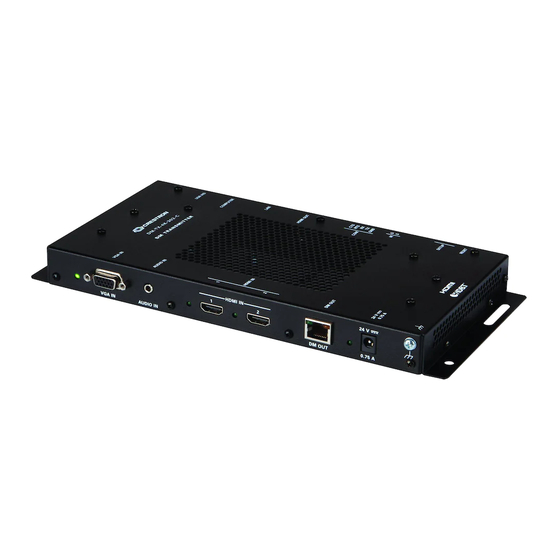

- Page 1 DM-TX-4K-202-C/DM-TX-4K-302-C 4K DigitalMedia 8G+ Transmitters ® Supplemental Guide Crestron Electronics, Inc.
- Page 2 Crestron disclaims any proprietary interest in the marks and names of others. Crestron is not responsible for errors in typography or photography.
-
Page 3: Table Of Contents
Contents Introduction Physical Description Side View, Left ......................2 Side View, Right ...................... 4 Configuration EDID Configuration ....................5 HDBaseT Configuration................... 7 USB HID Control Configuration ................8 HDCP 2.2 Compliance Troubleshooting Appendix: Pin Assignments Contents • i Supplemental Guide – DOC. 7932A... -
Page 5: Introduction
In addition to the HDMI inputs, the DM-TX-4K-302-C provides one VGA input and one analog audio input. The DM-TX-4K-202-C and DM-TX-4K-302-C also function as control modules, providing RS-232 and IR control ports. An Ethernet port and a USB HID port are also provided. -
Page 6: Physical Description
The following illustration shows the left side of the DM-TX-4K-302-C. NOTE: The left side of the DM-TX-4K-202-C provides the same connectors and indicators as the DM-TX-4K-302-C with the exception of the VGA IN connector and indicator and the AUDIO IN connector. - Page 7 DM-TX-4K-302-C if no USB device connects to the USB HID port. Unlike for the DM-TX-4K-302-C, standard PoDM or HDBaseT PoE can be used to power a USB device connected to the USB HID port of the DM-TX-4K-202-C. Power LED: Green LED, indicates operating power supplied via PoDM+, PoDM, ...
-
Page 8: Side View, Right
Side View, Right The following illustration shows the right side of the DM-TX-4K-302-C. NOTE: The right side of the DM-TX-4K-202-C provides the same connectors, controls, and indicators as the right side of the DM-TX-4K-302-C. Side View, Right (DM-TX-4K-302-C Shown) ... -
Page 9: Configuration
For detailed information, refer to the Crestron Toolbox™ help file. 1. Connect to the DM-TX-4K-202-C or DM-TX-4K-302-C. 2. Open the Setup window of the HDMI input for the DM-TX-4K-202-C or the Setup window of the HDMI or VGA input for the DM-TX-4K-302-C. - Page 10 EDID Configuration Dialog Box for HDMI Input (DM-TX-4K-302-C Dialog Box Shown) EDID Configuration Dialog Box for VGA Input (DM-TX-4K-302-C Only) 6 • DM-TX-4K-202-C/DM-TX-4K-302-C: 4K DigitalMedia 8G+ Transmitters Supplemental Guide – DOC. 7932A...
-
Page 11: Hdbaset Configuration
HDBaseT compliant device without requiring a DigitalMedia receiver. SIMPL Windows allows an HDBaseT receiver device to be added to the DM-TX-4K-202-C or DM-TX-4K-302-C. The HDBaseT receiver device adds a COM port to the DM-TX-4K-202-C or DM-TX-4K-302-C and enables two-way serial communication. -
Page 12: Usb Hid Control Configuration
USB signals from the device connected to the USB HID port of the DM-TX-4K-202-C or DM-TX-4K-302-C to the host device that is connected to the USB HID compliant port of a DigitalMedia device. To configure USB routing, set the <USB_HID_Control>... -
Page 13: Troubleshooting
Ensure that the VGA breakout Component or composite connections are faulty. cable connections are video may not be displayed, correct. may be intermittent, or may be missing color. (Continued on following page) DM-TX-4K-202-C/DM-TX-4K-302-C: 4K DigitalMedia 8G+ Transmitters • 9 Supplemental Guide – DOC. 7932A... - Page 14 NOTE: If, for any reason, the factory default settings of the DM-TX-4K-202-C or DM-TX-4K-302-C must be restored, do the following: From the Tools menu in the Crestron Toolbox application, select Text Console and enter the following command: restore y 10 •...
-
Page 15: Appendix: Pin Assignments
NUMBER COLOR Pin 8 Pin 1 Orange/White 5 Blue/White Orange Green Green/White Brown/White Blue Brown LAN Pin Assignments NUMBER SIGNAL NUMBER SIGNAL Pin 8 Pin 1 TX– RX– DM-TX-4K-202-C/DM-TX-4K-302-C: 4K DigitalMedia 8G+ Transmitters • 11 Supplemental Guide – DOC. 7932A... - Page 16 Crestron Electronics, Inc. Supplemental Guide – DOC. 7932A 15 Volvo Drive Rockleigh, NJ 07647 (2047277) Tel: 888.CRESTRON 11.16 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
