Installation Steps

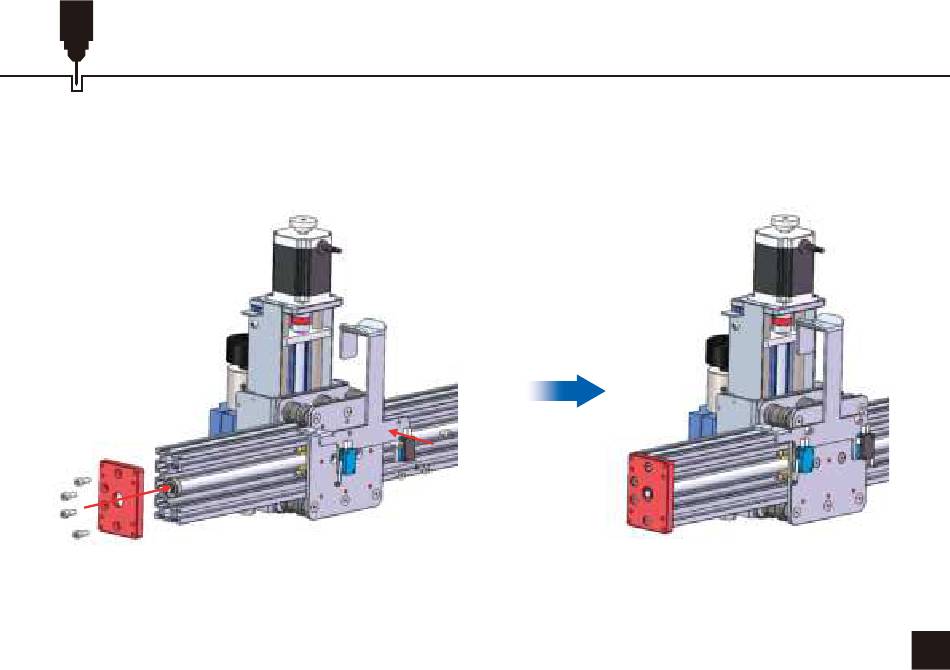

Step 5: Firstly, remove the side panel of the X-axis gantry (the side without the shaft), then slide on the X-Z assemble
so that the holes on the rear plate are aligned with the holes on the slider. With the X-Z assembly installed, put the side
panel back on and re-install all screws.
11
