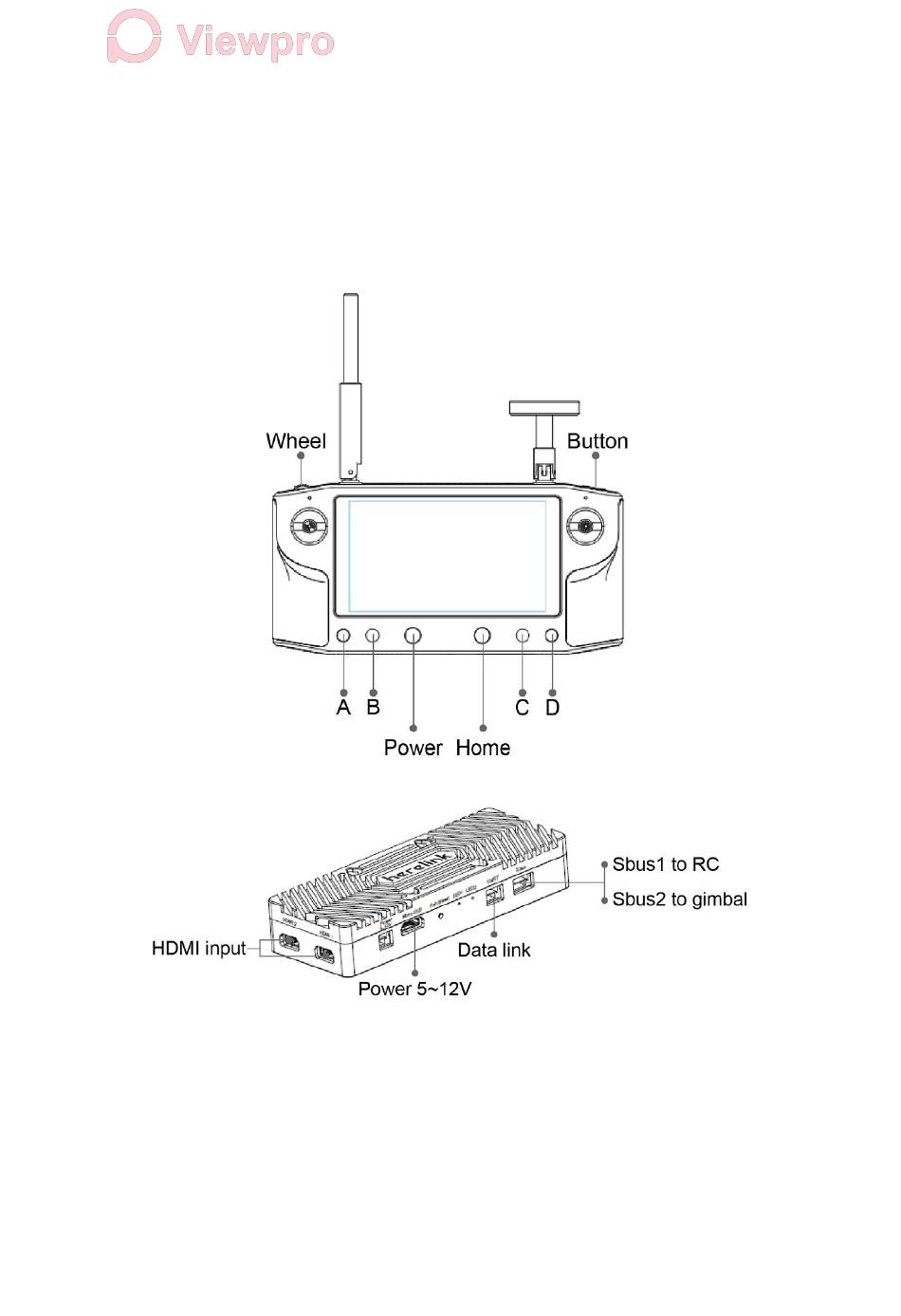

- Page 1 Herelink Dual Control Manual 1. Herelink Remote Control and Receiver Interfaces 2. Remote Control Frequency Settings with Receiver 2.1 Swipe down the notification bar from the top and click in turn Herelink Settings - Radio - Pair 1 of 8...
- Page 2 2.2 Hold down the Pair/Reset button on the receiver for 3 seconds and release, Herelink will display the frequency alignment result. 3. Set the Primary and Secondary Controller 3.1 Slide down the notification bar from the top, click Herelink Settings - Joystick, open the Dual Cont button and then open MAIN, indicating that the remote control is set as the main controller (aircraft control).
- Page 3 3.2 Connect to WIFI (must be 5GHZ band) 3.3 Find the set 3.4 Swipe down to the bottom to see the WIFI IP address 3 of 8...
- Page 4 4. Remote control calibration The primary and secondary controllers need to be calibrated before use. Follow the following steps 4.1 Herelink Settings - Joystick, select flight Mode directly below the screen, 1 for Japanese hand, 2 for American hand. 4 of 8...
- Page 5 5. Master Channel Function Mapping (operate on the main controller) A. Set Key Combinations 1. Click Herelink Settings - Buttons, Add (A short press, B short press, Home short press), and leave the right side M and T unchecked (as combination) 2.
- Page 6 1. Connect the SBUS cable (GND and SBUS) of the gimbal camera control box to SBUS2 of the receiver, and power on the device. 2. Herelink Settings - Joystick 3. Map the CH# of X2, Y2, Z2, R2, W2 to 17, 18, 19, 21, 20 4.
- Page 7 7. Display Video on Secondary Controller QGC The Herelink main controller can stream video by connecting to 5G Wifi using Herelink IP on the network. 1. Slide notification bar, press and hold the "Wifi" logo to jump to the Wifi interface, and then click Settings on the right 2.
- Page 8 3. Open QGC on secondary controller. Click the Q icon in the upper left corner and select General. 4. Scroll down to find the Video and select RTSP Video Stream as the Video source. RTSP URL input rtsp://<IP address of the master WIFI>: 8554/fpv_stream 5.
