Viewpro Z40K Quick Start Manual

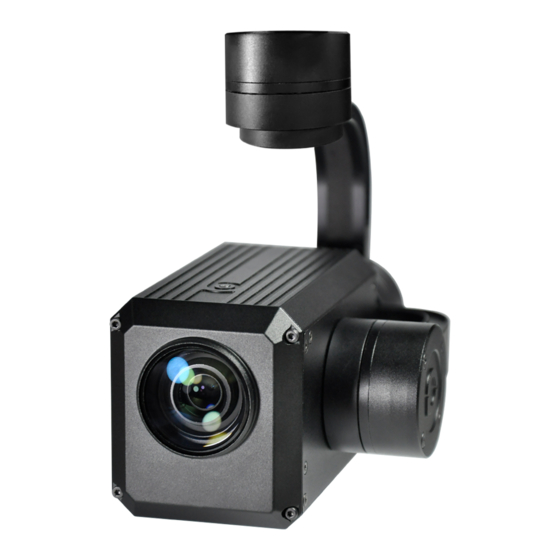

40x 4k object tracking gimbal camera
Hide thumbs Also See for Z40K:

Advertisement

Quick Links

Download this manual See also: User Manual

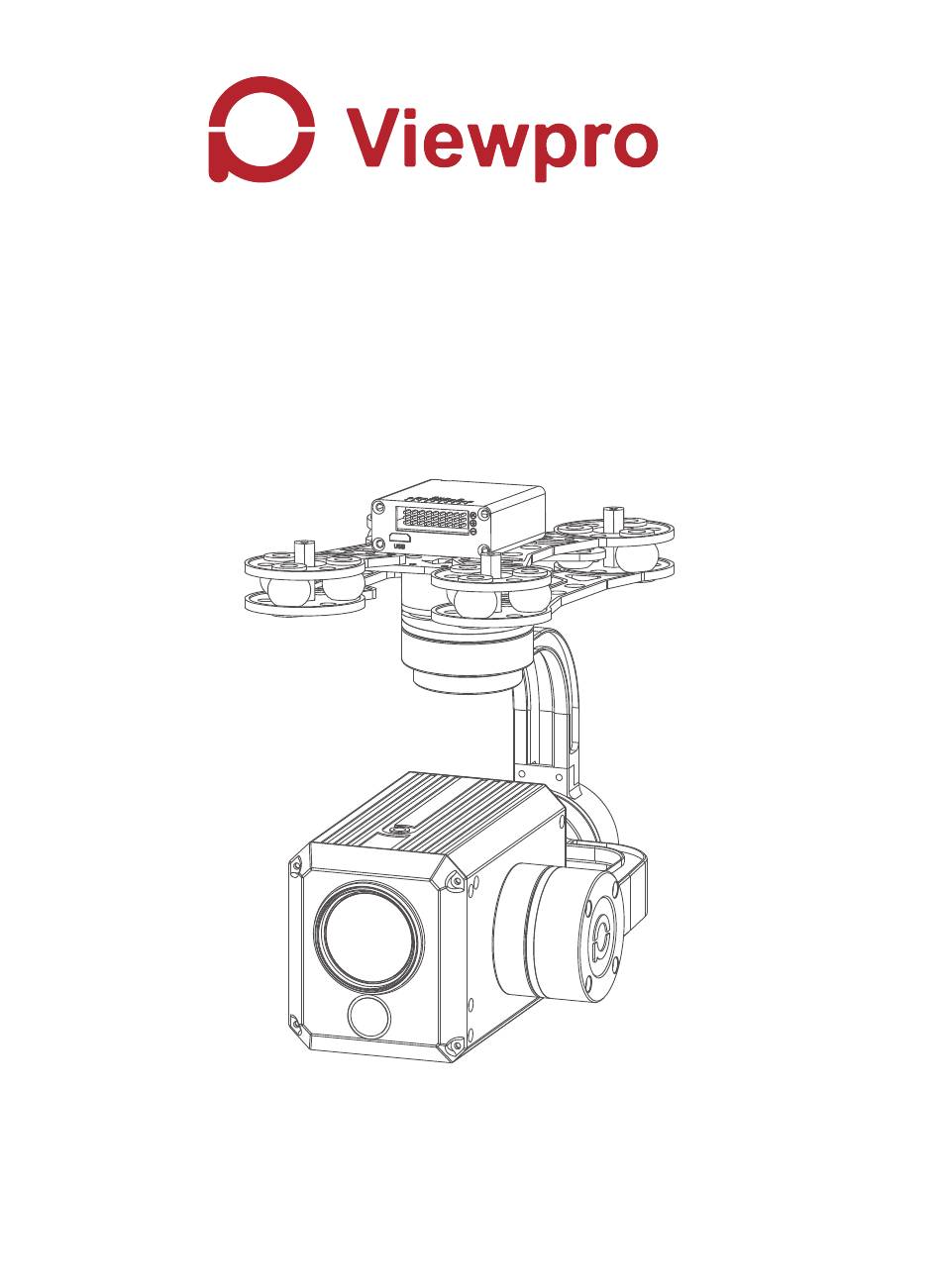

Quick Start Guide
Z40K
40x 4K Object Tracking Gimbal Camera
Images are for reference only, please subject to the actual product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Z40K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viewpro Z40K

Summary of Contents for Viewpro Z40K

  • Page 1 Quick Start Guide Z40K 40x 4K Object Tracking Gimbal Camera Images are for reference only, please subject to the actual product.
  • Page 2 Z40K Z40K is a 25.9MP 4K camera with 3-axis gimbal. It's powered by Panaso- nic 1/2.3” COMS module, has up to 40x optical zoom. The high-end camera module and advanced pinpoint anti-vibration system bring you extreme stable high image quality at anytime. Specially designed for long distance inspections and aerial photography.
  • Page 3 In the Box Gimbal camera*1 Damping board*2 Copper cylinders*4 Anti shedding buckle*4 Button head hexagon screw*16 5mm*12 8mm*4 Gimbal Camera Dimension Unit :mm...
  • Page 4 Instaling Install the camera as shown Connection of Control Box and Wiring Instruction Control Box position 1.Insert SD card SD card: max 128G，class10 FAT32 or exFAT format SD card position 2.connect HDMI to display HDMI : micro HDMI OUTPUT 3S~4S 1080P 60fps default HDMI position...
  • Page 5 3. Connect the signal line as below 1 2 3 S.bus/ Rx Roll/Tx Pitch Mode Zoom Focus Pic/Rec Multi S.bus/Rx Roll/Tx Pitch Futaba Mode Zoom R6208 S B Focus Pic/Rec Multi 4. Power supply with 12V, red line is positive and black is negative. RX1 RX2 RX3 TX1 TX2 TX3 1 2 3...

  • Page 6: Function Description

    Function Description Signal functions PWM in 5V output USER BOARD TTL 115200/8/1/N S.bus/Rx: connect to Rx2 for track function. Roll/ Tx: connect to Tx2 for track function. Pitch: PWM in, pitch control...
  • Page 7 Pitch: PWM in, pitch control 1 pitch up 2 pitch stop We have protocol for c o n t ro l t h e g i m ba l and camera, please contact our technical 3 pitch down s u p p o r t f o r d e t a i l doc.
  • Page 8 Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
  • Page 9 Pic/ Rec picture / Start record, stop record Switch 2 to 1: Camera mode change; Picture mode: the number is quantity of photos that SD card can storage; Record mode: the time is recording time left. Switch 2 to 3: A.
  • Page 10 Hardware Parameter Working voltage Input voltage 3S ~ 4S Output voltage 5V (connect with PWM) Dynamic current 450mA @ 12V Idle current 330mA @ 12V Power consumption ≤5.4W Working environment temp. ~ +60 ℃ ℃ Output micro HDMI(HD output 1080P 60fps) Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format) Control method...
  • Page 11 Focus Auto/Manual/One-time automatic focus Focus speed Lens initialization Built-in User presetting bit 20 sets Image rotation 180°, Horizontal/Vertical mirror image Facial recognition √ Not support Packing Information N.W. 630g Product meas. 153*96*140mm Accessories 1pc gimbal camera device, 16pcs screws / Box G.W.
