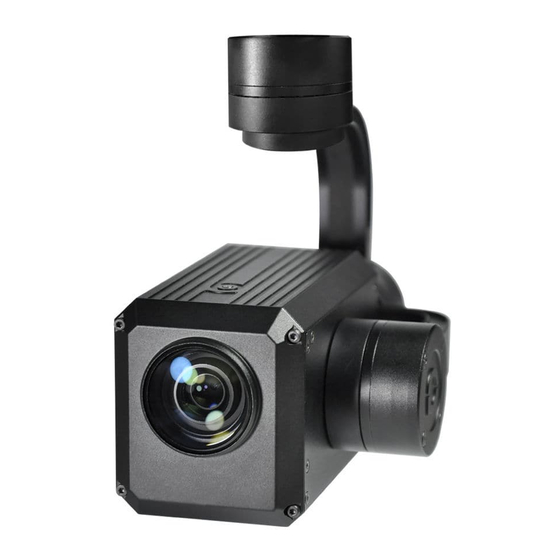

- Page 1 User manual Z25K 25x 4K UHD Video Gimbal Camera Compatible with DJI M200/M210/M210RTK and V2 Images are for reference only, please subject to the actual product.
-
Page 2: Table Of Contents
Contents Z25K High-precision Camera Camera introduction..................1 Camera description..................1 Mechanics@Electronic characteristics............2 Application description..................2 1. Menu instruction........................ 2. Payload Settings........................ 2.1 Gimbal Speed......................2.2 OSD Display Options....................2.3 OSD Type Options...................... 2.4 Gimbal Angles Setting....................3. Main functions instruction....................3.1 Camera Settings...................... -
Page 3: Camera Introduction
The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. With advanced OIS function, Z25K can compensate the subtle movements of the UAV to keep the camera stable even under 25 times optical zoom. It can be used on DJI drones M200 / M210 / M210RTK and V2, and controlled directly by APP DJI PILOT. -
Page 4: Mechanics@Electronic Characteristics
Application Description DJI Pilot After mounting Z25K on DJI drone and connecting with remote control, you can operate the gimbal camera via APP DJI Pilot. The gimbal attitude angles (tilt and pan) can be controlled by DJI remote control. Control method please refer to DJI related user manual. -
Page 5: Payload Settings
2. Payload Settings 2.1 Gimbal Speed: Gimbal speed is adjustable. When it’s 0%, the speed will adjust automatically, quick speed for wide end, slow speed for tele end. When you adjust it to 1% manually, the speed will be low even in wide end. - Page 6 2.2 Camera Options: Options Picture 16:9 and 4:3 will definit the recorded picture ratio. You can choose Definition and Time OSD off to get a clear screen. You can choose Definition and Time OSD off to get a clear screen.
-
Page 7: Gimbal Angles Setting
2.3 Gimbal Angles Setting: Input the pitch / yaw angle degrees to get exact attitude angles directly. 2.4 OIS (Optical Image Stabilization) Turn on the OIS function, it could effectively keep the image stable during flying. -
Page 8: Camera Options
3. Video Storage 3.1 SD card: resolution 3840*2160 pure video without OSD. Support up to 128G. Note: SD card format requirement Format: FAT ＜2G 2～32G Format: SDHC FAT32 32～128G Format: SDXC EXFAT Not support NTFS 3.2 Camera Options: Picture modes Picture 16:9: total pixel is 25.9MP Picture 4:3: total pixel is 20.4MP... - Page 9 Hardware Parameter Working voltage Input voltage 3S ~ 4S Dynamic current 450mA @ 12V Idle current 330mA @ 12V Power consumption ≤5.4W Working environment temp. ~ +60 ℃ ℃ Output Skyport Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format) Control method DJI Pilot Gimbal Spec...
- Page 10 Gain Auto White balance Auto/Manual Control system UART/IR/PWM Communication protocol PELCO-D, Hitachi protocol or VISCA Focus Auto/Manual/One-time automatic focus Focus speed Lens initialization Built-in User presetting bit 20 sets Image rotation 180°, Horizontal/Vertical mirror image Facial recognition √ Packing Information N.W.
