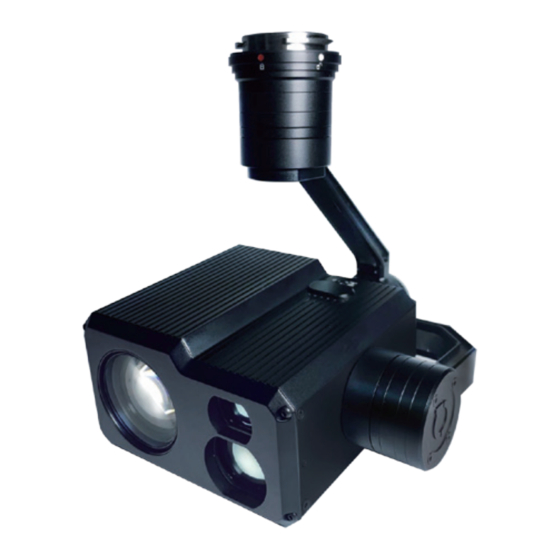

- Page 1 User manual X30TM 30x Zoom Laser Ranger Object Tracking Gimbal Camera Compatible with DJI M200/M210/M210RTK Images are for reference only, please subject to the actual product.
-
Page 2: Table Of Contents
Contents X30TM High-precision Camera 1. Camera introduction..................1 2. Camera description..................1 3. Mechanics@Electronic characteristics............2 4. Application description.................2 5. Specification....................9... -
Page 3: Camera Introduction
30 times optical zoom, object tracking, laser rangefinder and so on. The speed of X30TM gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast speed mode for wide end, which makes the gimbal control sensitive and quick. -
Page 4: Mechanics@Electronic Characteristics
Application Description DJI Pilot After mounting X30TM on DJI drone and connecting with remote control, you can operate the gimbal camera via APP DJI Pilot. The gimbal attitude angels (tilt and pan) can be controlled by DJI remote control. Control method please refer to DJI related user manual. - Page 5 1.1 Camera settings - Photo mode settings: You can choose single shot, burst mode or interval mode. 1.2 Payload Settings:...
- Page 6 Gimbal Speed: Gimbal speed is adjustable. When it’s 0%, the speed will be adjust automatically, quick speed for wide end, slow speed for tele end. When you adjust it to 1% manually, the speed will be low even in wide end. The high the percentage is, the quicker the speed will be. OSD Options: You can DIY you on-screen-display (OSD).
- Page 7 Digital Zoom Options: The EO camera of X30TM has 6 times digital zoom. Press T continually will get digital zoom automatically after 30x full optical zoom. Or choose digital zoom from Payload settings directly. The zoom times number will become blue when it’s in digital zoom status.
- Page 8 Camera Settings: Choose defog or flip the screen when necessary.
- Page 9 Input the pitch / yaw angle degrees to get exact attitude angles directly. 2. Main functions instruction 2.1 Night vision With a great low illumination, X30TM can perforance very well even in a dark environment. Switch to night mode to have a better images.
- Page 10 2.3 Laser rangefinder X30TM build-in infrared (IR) laser rangefinder, can resolve the geo graphic position and distance of the object automatically after GPS signal is synced from the UAV. The target is the object in the middle point of the screen. When the object distance is less than 5 meters...
-
Page 11: Specification
Specification Hardware Parameter Working voltage Input voltage 4S ~ 6S Dynamic current 450mA @ 12V Idle current 330mA @ 12V Power consumption ≤ 5.4W Working environment temp. ~ +60 ℃ ℃ Output Skyport Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format) Control method DJI Pilot Gimbal Spec... - Page 12 Camera Object Tracking Update rate of deviation pixel 50Hz Output delay of deviation pixel <10ms Minimum object contrast Minimum object size 16*16 pixel Maximum object size 160*160 pixel Tracking speed ±32 pixel/frame Object memory time 100 frames (4s) The mean square root values of pulse <...
