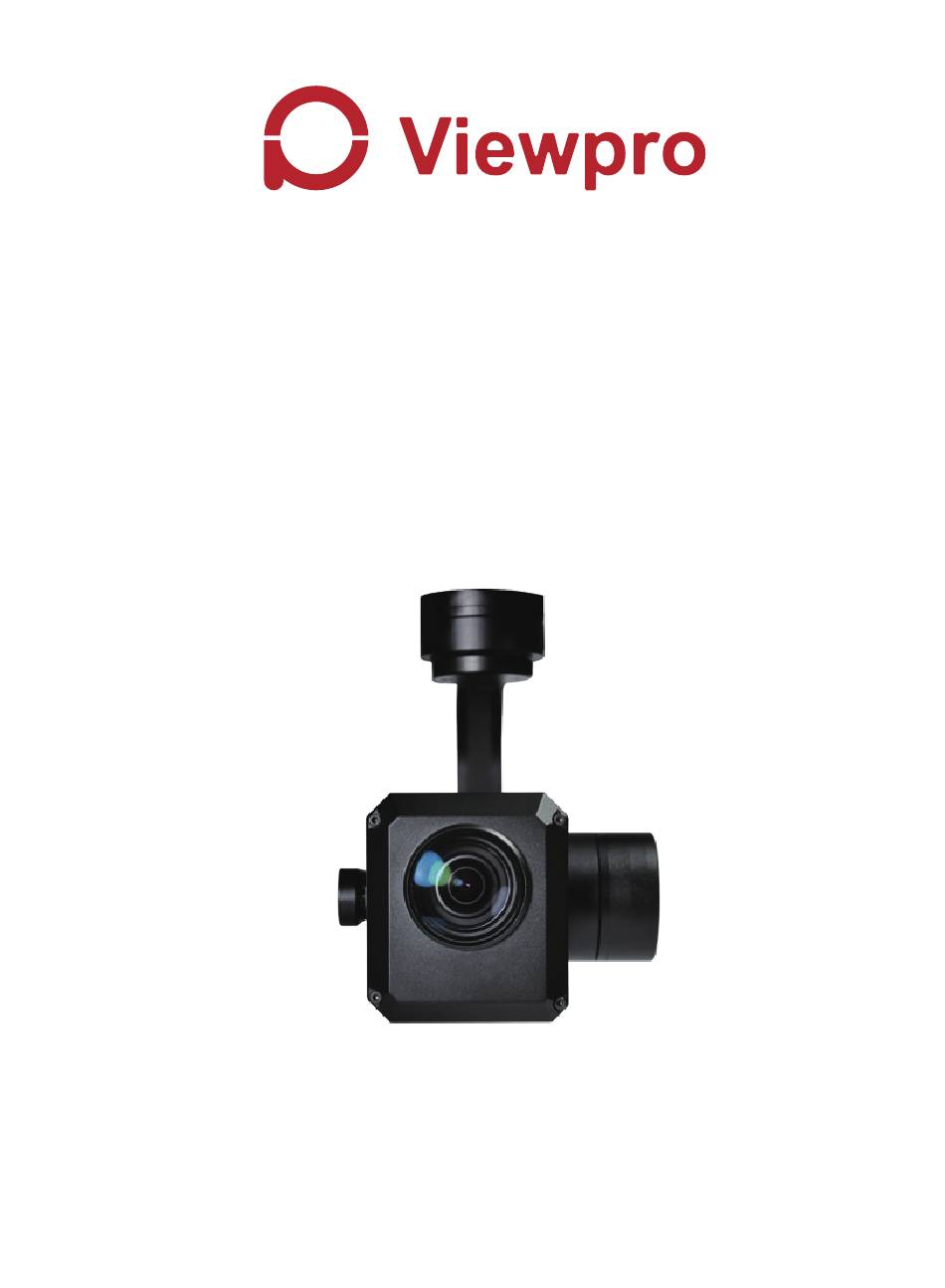

- Page 1 User manual Z40K 40x 4K UHD Object Tracking Gimbal Camera Compatible with DJI M200/M210/M210RTK Images are for reference only, please subject to the actual product.
-
Page 2: Table Of Contents
Contents Z40K High-precision Camera Camera introduction..................1 Camera description..................1 Mechanics@Electronic characteristics............2 Application description..................2 1. Menu instruction........................ 2. Payload Settings........................ 2.1 Gimbal Speed......................2.2 OSD Display Options....................2.3 OSD Type Options...................... 2.4 Gimbal Angles Setting....................3. Main functions instruction....................3.1 Camera Settings...................... -
Page 3: Camera Introduction

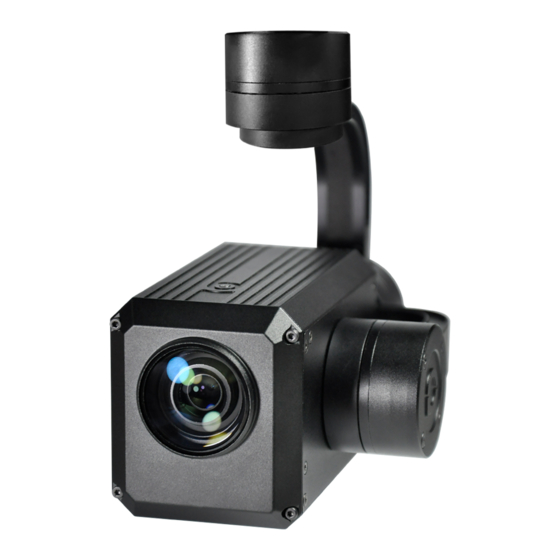

The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. With advanced OIS function, Z40K can compensate the subtle movements of the UAV to keep the camera stable even under 20 times optical zoom. It can be used on DJI drones M200 / M210 / M210RTK and controlled directly and fully by APP DJI PILOT. -
Page 4: Mechanics@Electronic Characteristics
Application Description DJI Pilot After mounting Z40K on DJI drone and connecting with remote control, you can operate the gimbal camera via APP DJI Pilot. The gimbal attitude angles (tilt and pan) can be controlled by DJI remote control. Control method please refer to DJI related user manual. -
Page 5: Payload Settings
2. Payload Settings 2.1 Gimbal Speed: Gimbal speed is adjustable. When it’s 0%, the speed will adjust automatically, quick speed for wide end, slow speed for tele end. When you adjust it to 1% manually, the speed will be low even in wide end. -
Page 6: Osd Display Options
2.2 OSD Display Options: You can DIY your on-screen-display (OSD). Choose Display ALL, or you can choose to display the items that you want only. Hide All: 2.3 OSD Type Options: You can choose to display FOV (Field of View) or Zoom times, GPS co-ordinate of UAV of the object. -
Page 7: Gimbal Angles Setting
2.4 Gimbal Angles Setting: Input the pitch / yaw angle degrees to get exact attitude angles directly. 3.Main functions instruction 3.1 Camera Settings In the APP, you can choose different camera options according to your application demands. 3.1.1 Camera Options: Photo modes: Picture 16:9: total pixel is 25.9MP Picture 4:3: total pixel is 20.4MP... - Page 8 Definition On: Pixel information showing on screen Definition Off: No pixel information showing...
-
Page 9: Video Record Modes
Note: For the ultra high definition reason, it will take about 3-4 seconds to perform the storage after a shooting. When the shooting and storage are performed, the camera icon on screen will become red and a green frame will display on screen with a shooting sound. The RXXXX number after the camera icon indicates the storage space left per picture quantity. - Page 10 TF OSD On: “R xxxxx” showing on screen “R xxxxx” indicates the storage time left for video TF OSD Off: No “R xxxxx” on screen...
-
Page 11: Video Storage
3.2 Video Storage Micro SD card(TF card): resolution 1920*1080, with OSD. Support up to 128G. SD card: resolution 3840*2160 pure video without OSD. Support up to 32G. -
Page 12: Ois(Optical Image Stabilization) Function
3.3 OIS (Optical Image Stabilization) function Turn on the OIS function, it could effectively keep the image stable during flying, even in the condition of larger optical zoom. 3.4 Object Tracking Start tracking: Enable tracking function, the single touch on the screen to pick tracking object. Stop tracking: Payload Settings –... -
Page 13: Specification
Specification Hardware Parameter Working voltage Input voltage 3S ~ 4S Output voltage 5V (connect with PWM) Dynamic current 450mA @ 12V Idle current 330mA @ 12V Power consump�on ≤5.4W Working environment temp. -40℃ ~ +60℃ Output Skyport Local-storage SD card*2 (Up to 128G, class 10, FAT32 or ex FAT format) Control method DJI Pilot Gimbal Spec... - Page 14 Focus speed Lens ini�aliza�on Built-in User prese�ng bit 20 sets Image rota�on 180°, Horizontal/Ver�cal mirror image Micro SD card could support Object Tracking Update rate of devia�on pixel 50Hz Output delay of devia�on pixel <15ms Minimum object contrast Minimum object size 16*16 pixel Maximum object size 160*160 pixel...
