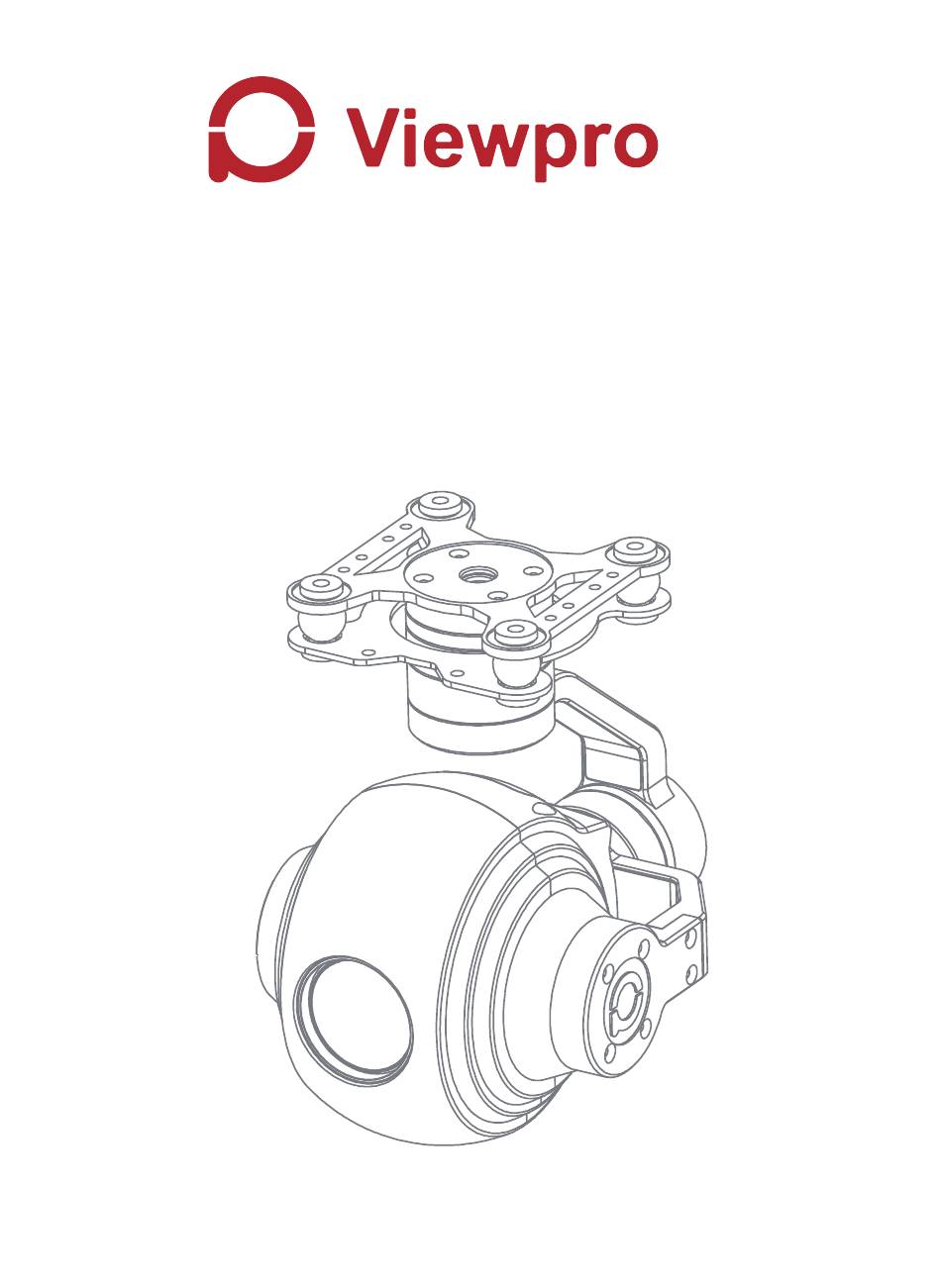

- Page 1 Quick Start Guide Q10T 10x Optical Zoom Object Tracking Gimbal Camera Images are for reference only, please subject to the actual product.
- Page 2 UAV. Yaw axis could realize 360° continuous rotation with Ethernet or SDI output. At the same time, Q10T can achieve target tracking. The image is stable even at 10 times optical zoom. Q10T have been widely used in various fields like public security, electric power, fire, zoom aerial photography and other industries in the application of drones.
- Page 3 In the Box Gimbal camera*1 Damping board*2 Anti shedding buckle*4 Copper cylinders*4 Button head hexagon screw*16 USB to TTL*1 5mm*12 8mm*4 Gimbal Camera Dimension Uint: mm...
- Page 4 Installing Install the holder camera as shown Connection of Control Box and Wiring Instruction Control Box position 1. Insert SD card SD card: max 128G ，class10 SD card position FAT32 or exFAT format 3S~4S 2. Connect HDMI to display HDMI: micro HDMI OUTPUT HDMI position 1080P 60fps default...
- Page 5 3. Connect the signal line as below 1 2 3 S.bus/ Rx Roll/Tx Pitch Mode Zoom Focus Pic/Rec Multi S.bus/Rx Roll/Tx Pitch Futaba Mode Zoom R6208 S B Focus Pic/Rec Multi 8 /B 4. Power supply with 12V, red line is positive and black is negative. RX1 RX2 RX3 TX1 TX2 TX3 1 2 3...
-
Page 6: Function Description
Function Description Signal functions PWM in 5V output USER BOARD TTL 115200/8/1/N Pitch: PWM in, pitch control... - Page 7 Pitch: PWM in, pitch control 1 pitch up 2 pitch stop We have protocol for c o n t ro l t h e g i m ba l and camera, please contact our technical 3 pitch down s u p p o r t f o r d e t a i l doc.
- Page 8 Mode: Change the speed / home position Position 1: Lowest speed for pitch and yaw. Position 2: Middle speed for pitch and yaw. Position 3: Highest speed for pitch and yaw. The speed is continuously quickly from 1 to 3. One click: Home position.
- Page 9 Pic/ Rec picture / Start record, stop record Switch 2 to 1: Start record / stop record. Start record, the OSD display rec hh:mm:ss. Stop record, the OSD display STBY. Switch 2 to 3: Take a picture. OSD display ’REC IMG’ a second. Multi: Tracking control 1: Switch 2 to 1: start tracking.
- Page 10 Hardware Parameter Working voltage Input voltage 3S ~ 4S Output voltage 5V (connect with PWM) Dynamic current 320mA @ 12V Idle current 240mA @ 12V Power consumption ≤ 3.85W Working environment temp. ~ +50 ℃ ℃ Output micro HDMI(HD output 1080P 60fps/30fps) / IP Local-storage SD card (Up to 128G, class 10, FAT32 or ex FAT format) Control method...
- Page 11 Camera Object Tracking Update rate of deviation pixel 50Hz Output delay of deviation pixel <15ms Minimum object contrast Minimum object size 16*16 pixel Maximum object size 160*160 pixel Tracking speed ±32 pixel/frame Object memory time The mean square root values of pulse noise <...
