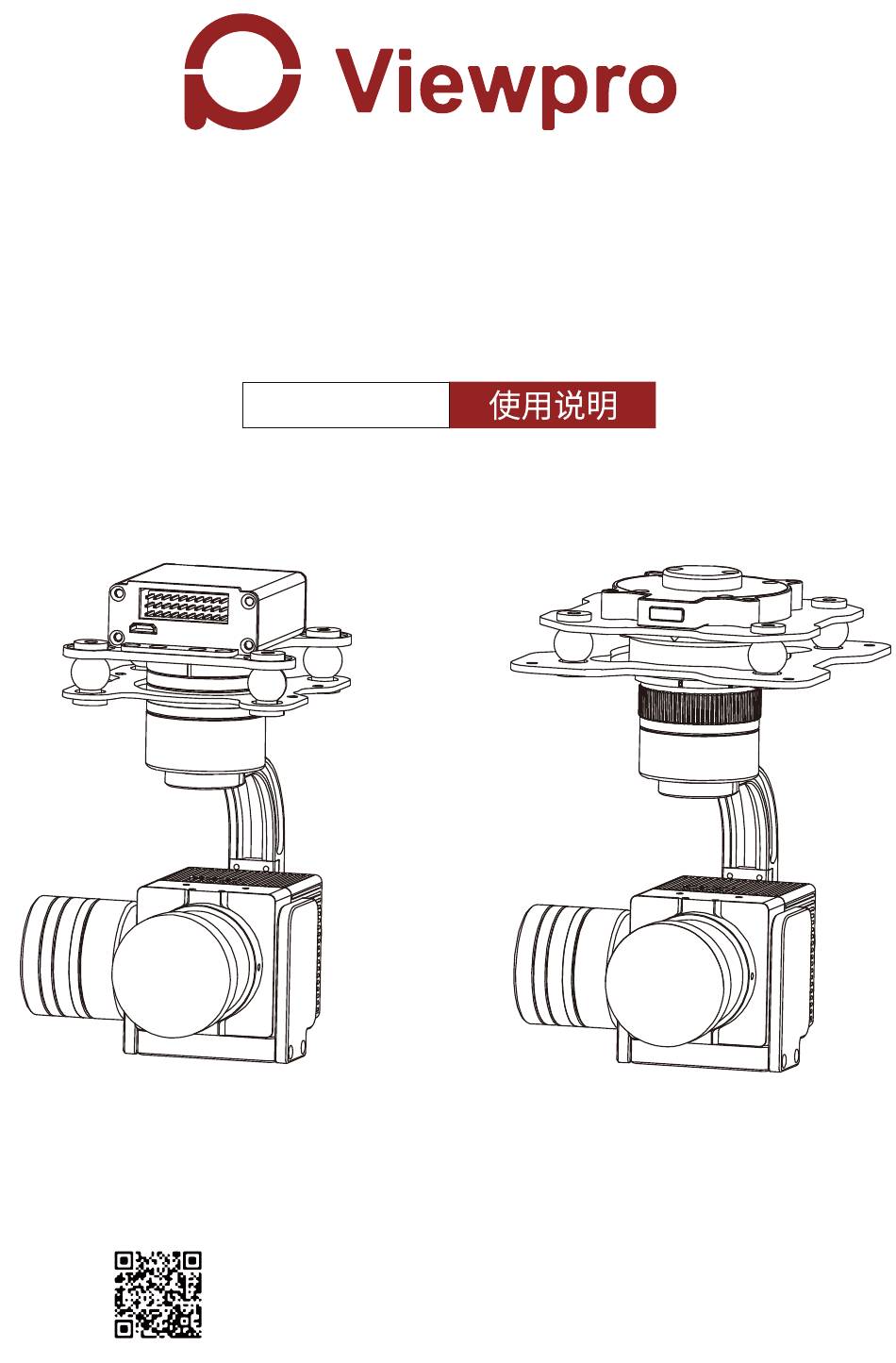

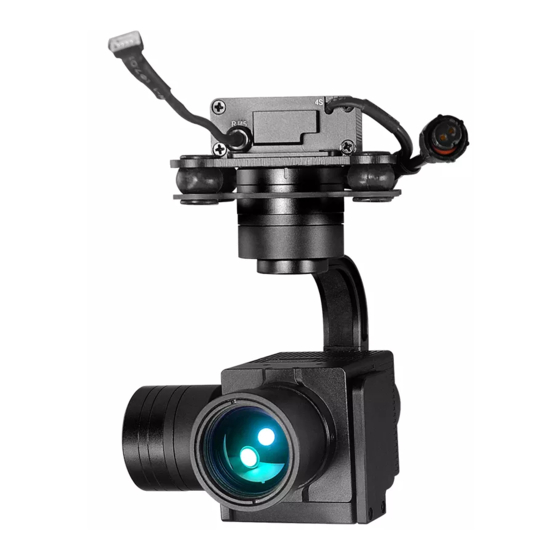

- Page 1 ZIR25T 25mm Single Thermal Object Tracking Gimbal Camera User Manual User Manual Standard Version Viewport Version 标准版 快拆版 For more details please scan the QR code or visit our website: www.viewprotech.com...
-
Page 2: Disclaimer And Warning
The integrated design of damping system and gimbal can greatly reduce mechanical vibration. ZIR25T is widely used in UAV industries of public security, electric power, fire fighting, zoom aerial photography and other industrial applications. -
Page 3: Standard Version
1.2 In the Box A. Standard Version Gimbal Camera USB to TTL Cable x 1 pc x 1 pc Copper Cylinder M3 Screw x 4 pcs x 8 pcs Power Cable x 1 pc B. Viewport Version Gimbal Camera USB to TTL Cable x 1 pc x 1 pc Copper Cylinder... -
Page 4: Installation Instruction
TTL / S.BUS Control Cable x 1 pc TTL Connect Cable x 3 pcs Ethernet Cable x 1 pc 2. Installation Instruction 2.1 Overview [10] [12] [11] Control Box Back Side (Standard Version) [10] [13] [12] Viewport [11] (Viewport Version) - Page 5 [8] Roll axis motor [1] Control box [2] Upper damping board [9] Pitch axis motor [3] Lower damping board [10] 3-6S power interface [4] Infrared thermal camera [11] Micro HDMI interface [5] Damping ball [12] Ethernet interface [6] Yaw axis motor [13] Viewport unlock button [7] TF card slot Please ensure that there isn’t any obstacle while the...
- Page 6 2.2.2 Control Box Printing (Viewport Version) Front Side POWER Left Side ETHERNET UART & S.BUS Right Side...
- Page 7 2.3 Device Dimensions (Standard Version) Unit: mm 69.9 24.5 60.0 69.7 69.9 51.3 79.3 122.9...
- Page 8 2.3 Device Dimensions (Viewport Version) Unit: mm 78.0 Control Box 91.0 91.0 91.0 81.5 81.5 122.9 79.3...
- Page 9 2.4 Install Mounting Part (1) Find out the arrow on the gimbal which indicating the yaw heading of the payload (i.e. the lens direction when the camera power on), and synchronize with the direction specified by the UAV. (2) Fix one end of the copper cylinder on the screw hole of lower damping board, and use M3 screw to fasten it.
- Page 10 2.5 Viewport Release Instruction × 1. Make sure the two white stripes indicated in above picture are aligned with each other. (If the stripes are not aligned to each other, please pinch the connector part and turn it to left manually)
- Page 11 2. Align the white dot (unlock icon) to the red triangle (below unlock button), push the gimbal into the Viewport completely and then rotate the gimbal camera anticlockwise. 3. When you hear "click" sound (when red dot is aligned to the red triangle) means the gimbal camera and Viewport has been locked.
- Page 12 2.6 Install TF Card TF (Micro SD card): Install the TF card to the card slot (Re. 2.1 Overview). Support max 128GB. Request Class 10 (10m/s) transmis- sion speed or higher and FAT32 or exFAT format. Make sure device is power off when inserting the TF card, hot plugging is not supported.
-
Page 13: Signal Control
Above output mode is optional, HDMI and SDI output cannot coexist at the same time. Please subject to your actual product. When using user interface software Viewlink for network connection, the network of external device (computer) should be the IP address: 192.168.2.2 (choose the last byte among 2~254, can not be 119 same as the gimbal), subnet mask: 255.255.255.0, Default gateway: 192.168.2.1, and all firewalls of the... - Page 14 PWM IN 5V OUTPUT Remote Controller Receiver Connection Diagram (Standard Version) Receiver Remote Controller Connection Diagram (Viewport Version)
- Page 15 3.1.2 PWM Control Operation Instruction 1) Pitch (PWM Pitch channel in to control Pitch. Joystick, rotary knob or 3-gear switch on remote control are optional. 3-gear switch as example.) Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Pitch Up Pitch Stop Pitch Down...
- Page 16 Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Position 1: Low speed mode, control pitch / yaw with this mode at lowest speed Position 2: Middle speed mode, control pitch / yaw with this mode at middle speed Position 3: High speed mode, control pitch / yaw with this mode at highest speed...
- Page 17 4) Zoom (PWM Zoom channel in to control Zoom. Joystick, rotary knob or 3-gear switch on remote control are optional. 3-gear switch as example.) Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear IR digital zoom No control IR color palette switch Switch from Position 2 to 1: IR color switching: white hot, black hot, pseudo color.
- Page 18 Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Switch from Position 2 to 1: Take a picture OSD display 'REC IMG' a second. Switch from Position 2 to 3: Start record / repeat operation to stop record Start record, the OSD display rec hh:mm:ss.
- Page 19 3.2 Serial Port / TTL Control TTL communication requirements: TTL signal is 3.3V, baud rate: 115200, data bit 8, stop bit 1, no parity, HEX send and receive. Connection Diagram (PC - USB to TTL Cable- Gimbal Camera as example): Gimbal Camera Cable RX (White)
-
Page 20: S.bus Control
TTL control protocol file. ViewLink is a user interface developed by Viewpro for Viewpro gimbal cameras, you can download it from Viewpro website (www.viewpro- tech.com) or ask distributors for installation package. - Page 21 5V OUTPUT Remote Control Receiver Wiring Diagram Standard Version Receiver Remote Control Wiring Diagram Viewport Version...
- Page 22 (please contact with our technical support for the setting instruction.) 3.4 TCP control For Viewpro gimbal cameras with Ethernet output, the default IP address is: 192.168.2.119, control port: 2000. You can send the corresponding protocol to realize TCP control after connecting.
-
Page 23: Specification
4. Specification Hardware Parameter Working voltage Input voltage 3S ~ 6S Output voltage 5V (connect with PWM) Dynamic current 600mA @ 12V Idle current 500mA @ 12V Working environment -20℃ ~ +60℃ temp Output micro HDMI(1080P 60fps) / IP (720p) TF card (Up to 128G, class 10, FAT32 or ex Local-storage FAT format) - Page 24 Vibration angle Pitch/Roll: ±0.02°, Yaw：±0.02° One-key to center √ Thermal Imager Spec Lens size 25mm Horizontal FOV 24.6° Vertical FOV 18.5° Diagonal FOV 30.4° Detective Distance 735 meters (Man: 1.8x0.5m) Recognize Distance 184 meters (Man: 1.8x0.5m) Verified Distance 92 meters (Man: 1.8x0.5m) Detective Distance 2255 meters...
- Page 25 Emissivity correction 0.01~1 NETD ≤50mK (@25℃) MRTD ≤650mK (@characteristic frequency) Auto adjust image brightness and contrast Image enhancement ratio Color palette White, iron red, pseudo color Auto Non-uniform Yes (no shutter) correction Digital zoom 1x ~ 4x Sync correct time Temperature bar (psudo color display) max temp, min temp, FOV center temp Thermometry type...
- Page 26 IP output resolution is set to 1920*1080; The video frame rate saved in the TF card is the same with the one set during IP output. The frame rate is 25fps or 30fps for optional. 3. Does ZIR25T support simultaneous TCP control for multiple devic- A: Yes...
