Viewpro Q20K User Manual

20x optical zoom 4k output gimbal camera

Advertisement

Quick Links

Q20K 20x Optical Zoom
4K Output Gimbal Camera
User Manual
Standard Version
Viewport Version
标准版
快拆版
For more details please scan the QR code
or visit our website:
www.viewprotech.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Q20K and is the answer not in the manual?

Questions and answers

Summary of Contents for Viewpro Q20K

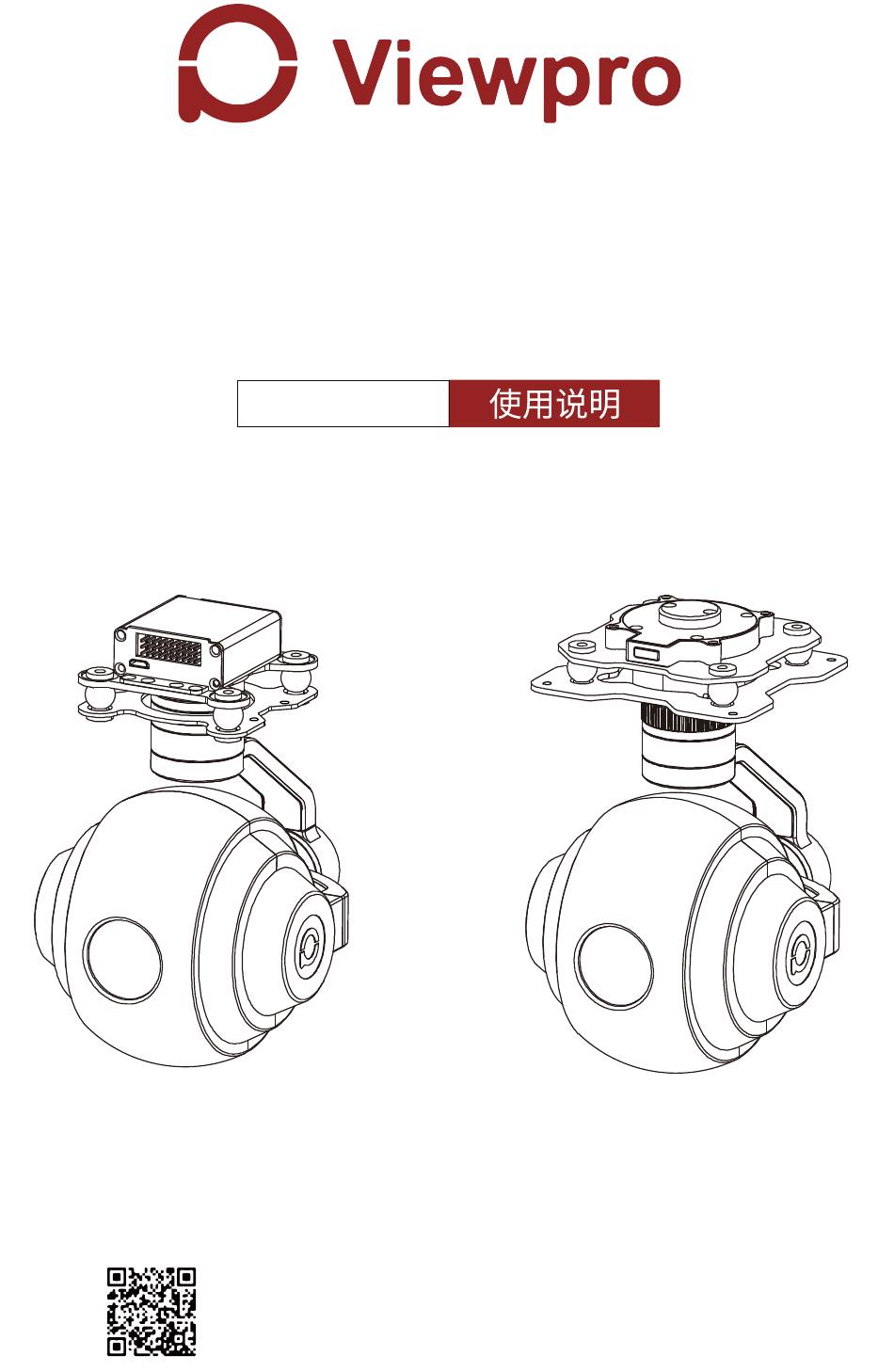

  • Page 1 Q20K 20x Optical Zoom 4K Output Gimbal Camera User Manual Standard Version Viewport Version 标准版 快拆版 For more details please scan the QR code or visit our website: www.viewprotech.com...
  • Page 2: Disclaimer And Warning

    The 3 axis gimbal can achieve stabilization in yaw, roll and pitch. The integrated design of damping system and gimbal can greatly reduce mechanical vibration. Q20K is widely used in UAV industries of public security, zoom aerial photography and real time broadcasting.
  • Page 3: Standard Version

    1.2 In the Box A. Standard Version Gimbal Camera USB to TTL Cable x 1 pc x 1 pc Copper Cylinder M3 Screw x 4 pcs x 8 pcs Power Cable x 1 pc B. Viewport Version Gimbal Camera USB to TTL Cable x 1 pc x 1 pc Copper Cylinder...
  • Page 4: Installation Instruction

    TTL / S.BUS Control Cable x 1 pc TTL Connect Cable x 3 pcs 2. Installation Instruction 2.1 Overview [10] Control Box Back Side (Standard Version) [11] Viewport [10] (Viewport Version)
  • Page 5 [1] Control box [7] Roll axis motor [2] Upper damping board [8] Pitch axis motor [3] Lower damping board [9] 3-6S power interface [4] 4K zoom camera [10] Micro HDMI interface [5] Damping ball [11] Viewport unlock button [6] Yaw axis motor Please ensure that there isn’t any obstacle while the motor rotating.
  • Page 6 2.2.2 Control Box Printing (Viewport Version) Front Side POWER Left Side ETHERNET UART & S.BUS Right Side...
  • Page 7 2.3 Device Dimensions (Standard Version) Unit: mm 19.5 14.0 45.0 60.0 69.9 69.7 105.0 140.6...
  • Page 8 2.3 Device Dimensions (Viewport Version) Unit: mm φ52.1 78.0 91.0 Control Box 91.0 81.5 81.5 23.0 140.6 105.0...
  • Page 9 2.4 Install Mounting Part (1) Find out the arrow on the gimbal which indicating the yaw heading of the payload (i.e. the lens direction when the camera power on), and synchronize with the direction specified by the UAV. (2) Fix one end of the copper cylinder on the screw hole of lower damping board, and use M3 screw to fasten it.
  • Page 10 2.5 Viewport Release Instruction × 1. Make sure the two white stripes indicated in above picture are aligned with each other. (If the stripes are not aligned to each other, please pinch the connector part and turn it to left manually)
  • Page 11 2. Align the white dot (unlock icon) to the red triangle (below unlock button), push the gimbal into the Viewport completely and then rotate the gimbal camera anticlockwise. 3. When you hear "click" sound (when red dot is aligned to the red triangle) means the gimbal camera and Viewport has been locked.
  • Page 12: Signal Control

    2.7 Image Output Interface HDMI: micro HDMI 4K output. 3. Signal Control 3.1 PWM Control Control the gimbal camera functions by the multiplex pulse width modulation signal outputted by PWM channel of the remote control receiver. The camera needs up to 6 control channels of PWM (to expand tracking function use up to 7 PWM channels).
  • Page 13 Receiver Remote Controller Connection Diagram (Viewport Version) 3.1.2 PWM Control Operation Instruction 1) Pitch (PWM Pitch channel in to control Pitch. Joystick, rotary knob or 3-gear switch on remote control are optional. 3-gear switch as example.) Position 1 Position 2 Position 3 Low Gear Middle Gear...
  • Page 14 2) Yaw (PWM Yaw channel in to control Yaw. Joystick, rotary knob or 3-gear switch on remote control are optional. 3-gear switch as example.) Position 1 Position 2 Position 3 Low Gear Middle Gear High Gear Yaw Left Yaw Stop Yaw Right 3) Mode (PWM Mode channel in to adjust speed control/one key to Home position etc functions.
  • Page 15 Function of continuous switching: 3.1) Operate 1 time continuously and quickly, from position 2 - 3 - 2, to Home position. 3.2) Operate 2 times continuously and quickly, from position 2 - 3 - 2 - 3 - 2, the camera lens looks vertically down. 3.3) Operate 3 times continuously and quickly, from position 2 - 3 - 2 - 3 - 2 - 3 - 2, to disable Follow Yaw Mode (gimbal yaw not follows by frame)
  • Page 16 3.2 Serial Port / TTL Control TTL communication requirements: TTL signal is 3.3V, baud rate: 115200, data bit 8, stop bit 1, no parity, HEX send and receive. Connection Diagram (PC - USB to TTL Cable- Gimbal Camera as example): Gimbal Camera Cable RX (White)
  • Page 17: S.bus Control

    TTL control protocol file. ViewLink is a user interface developed by Viewpro for Viewpro gimbal cameras, you can download it from Viewpro website (www.viewpro- tech.com) or ask distributors for installation package.
  • Page 18 5V OUTPUT Remote Control Receiver Wiring Diagram Standard Version Receiver Remote Control Wiring Diagram Viewport Version...
  • Page 19: Specification

    S.Bus control mode: default S.Bus signal channel 9-15 to control gimbal camera functions (the function of channel is consistent with corresponding channel in PWM function description) Channel 9: Yaw Control Channel 10: Pitch Control Channel 11: Mode Control Channel 12: Zoom Control Channel 13: Focus Control(not support) Channel 14: Pic/Rec Control(not support) Channel 15: Multi Backup...
  • Page 20 Dynamic current 500mA @ 12V Idle current 350mA @ 12V Working environment -20℃ ~ +60℃ temp Output micro HDMI Local-storage None Control method PWM / TTL Gimbal Spec Pitch/Tilt: -160°~160°, Roll: ±60°, Mechanical Range Yaw/Pan:±300° Controllable Range Pitch/Tilt: -45°~90°, Yaw/Pan: ±290° Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°...
  • Page 21 Min. working distance 80 mm (Wide end), 800 mm (Tele end) Angle of view ( H ) 70.2°(Wide end) ~ 4.1°(Tele end) Sync system Internal / External S/N ratio 50dB Recommended 100 to 100000 lux illumination 1.6 lux (1/30 sec, 50%, ICR off, High Sensitivity mode Off ) 0.4 lux (1/30 sec, 50%, ICR Off, High Sensitivity mode On)
  • Page 22 2266g Package meas. 260*180*280mm 5. FAQ 1. How to deal with whitening visible image of Q20K in foggy weath- A: Enable defogging mode 2. How to change output frame rate of Q20K? A: By sending serial command: Set output to 4K 25fps:81 01 04 24 72 01 0E FF Set output to 4K 30fps:81 01 04 24 72 01 0D FF...
