LARSON
CLASS-A MONOBLOCK POWER AMPLIFIER
REVISION P A – MARCH 2022
R

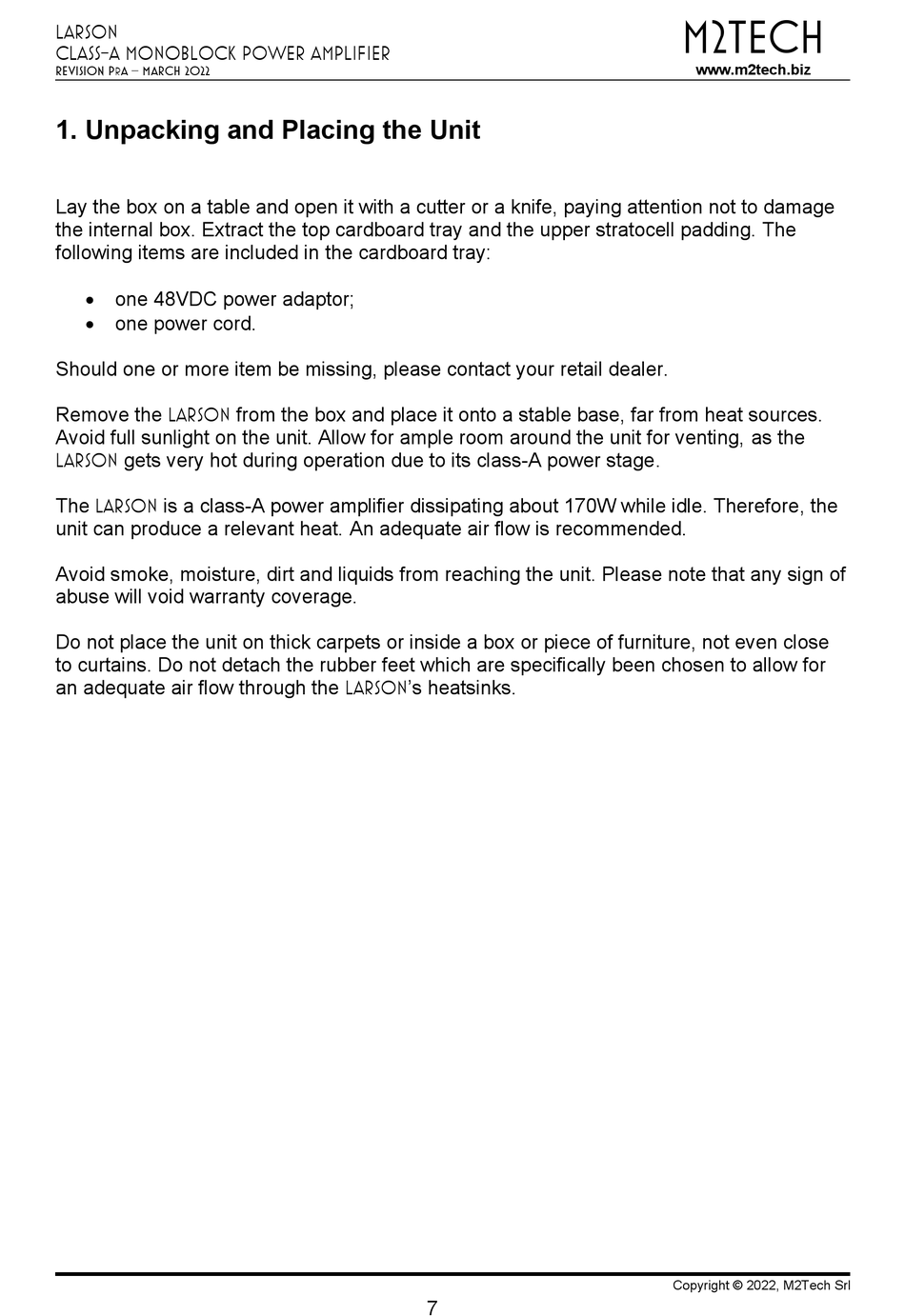

1. Unpacking and Placing the Unit

Lay the box on a table and open it with a cutter or a knife, paying attention not to damage
the internal box. Extract the top cardboard tray and the upper stratocell padding. The
following items are included in the cardboard tray:
 one 48VDC power adaptor;
 one power cord.
Should one or more item be missing, please contact your retail dealer.
Remove the LARSON from the box and place it onto a stable base, far from heat sources.
Avoid full sunlight on the unit. Allow for ample room around the unit for venting, as the
LARSON gets very hot during operation due to its class-A power stage.
The LARSON is a class-A power amplifier dissipating about 170W while idle. Therefore, the
unit can produce a relevant heat. An adequate air flow is recommended.
Avoid smoke, moisture, dirt and liquids from reaching the unit. Please note that any sign of
abuse will void warranty coverage.
Do not place the unit on thick carpets or inside a box or piece of furniture, not even close
to curtains. Do not detach the rubber feet which are specifically been chosen to allow for
an adequate air flow through the LARSON's heatsinks.
7
