Step 1
Assembly of the main frame
1) Screw together the Main Frame(1) to the Back Cushion Tube (3) and Connect
Tube (4), secured with M8x55 hex bolt (9-8pcs), M8 washer (11-16pcs) and
M8 nylon nut (12-8pcs).
2) Insert the Handle Bar(2) into the Main Frame(1),Locked with Knob(7).
Step 2
Assembly of the Cushion
1) Attach the Back Cushion (5) to the Back cushion Tube (3), secured with
M8x20 bolt (10-2pcs).
2) Attach the Arm Cushion (6) to the Main Frame (1), secured with M8x55 hex
bolt (9-4pcs) and M8 washer (11-4pcs).

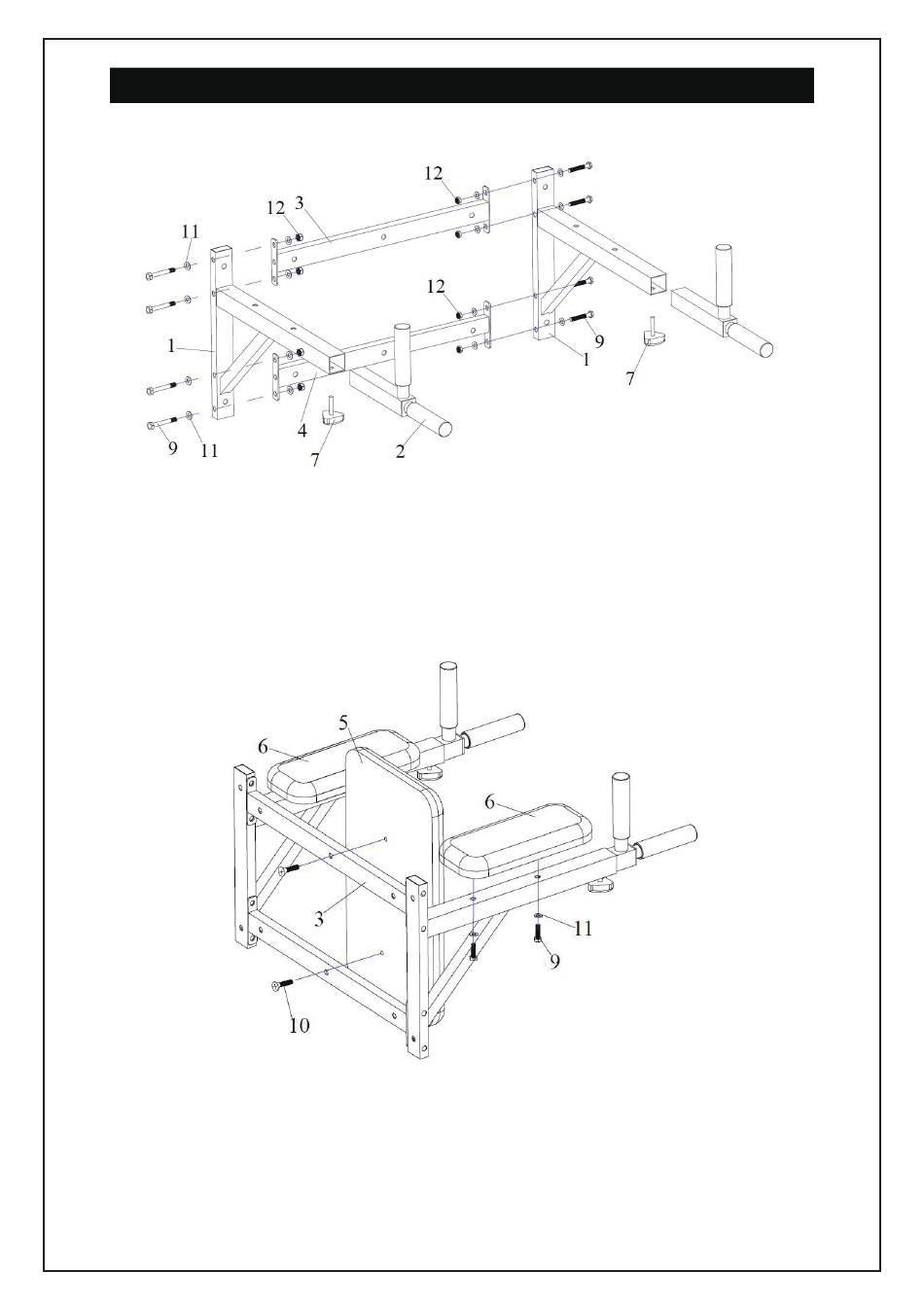

ASSEMBLY DRAWING
-3-
