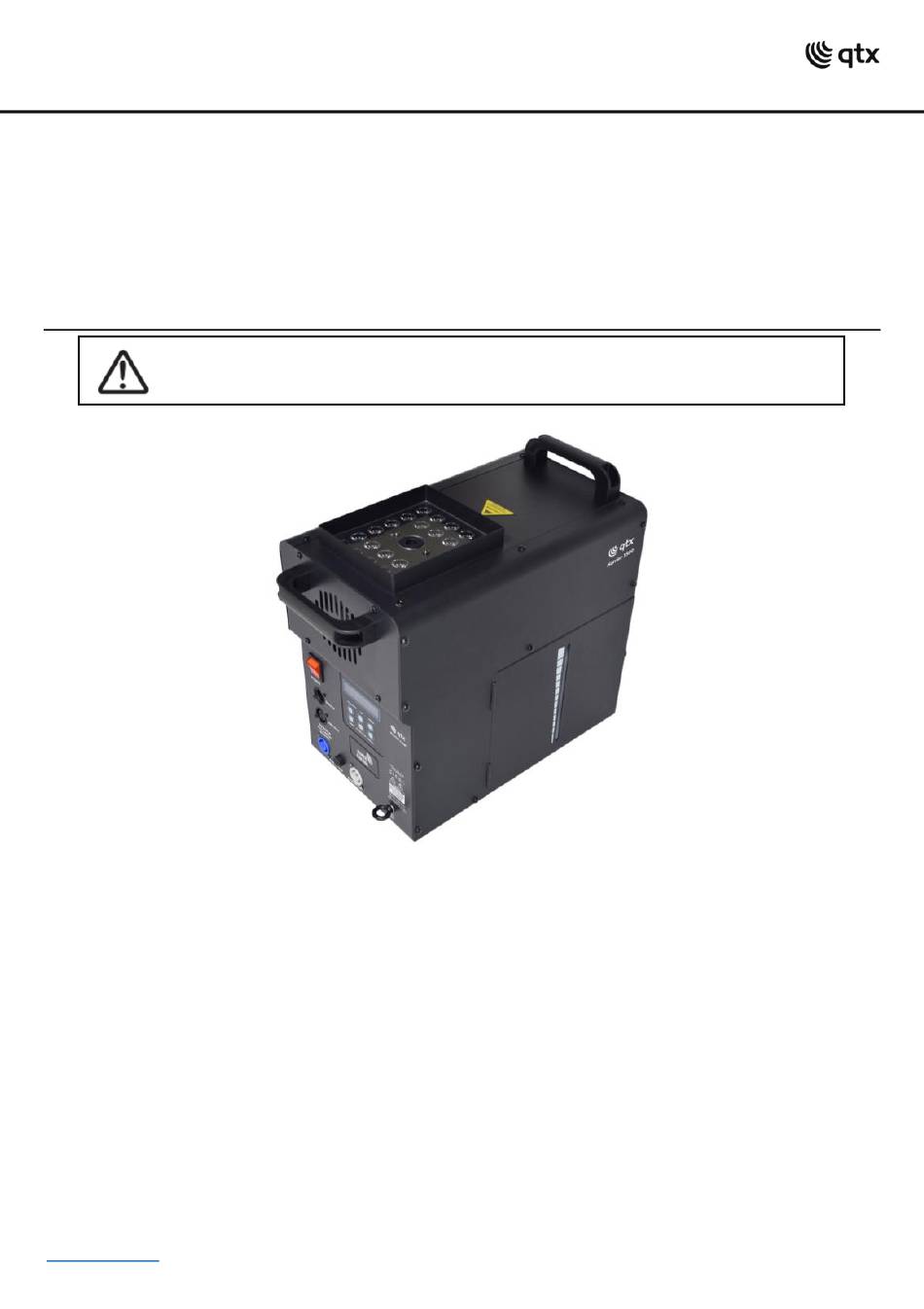

Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty

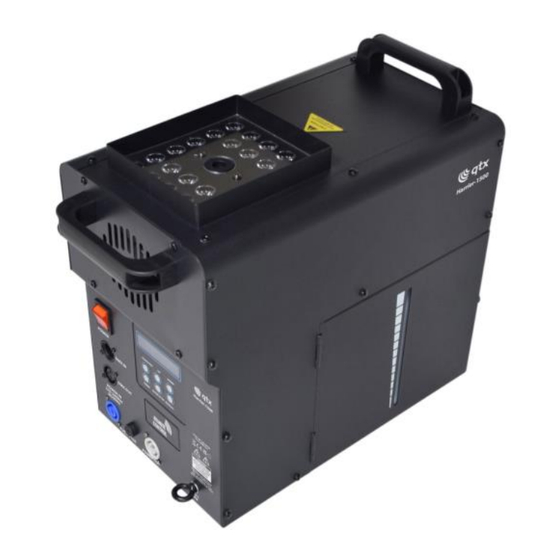

The Harrier-1500's innovative design means it can provide either vertical or horizontal jets of
smoke to rapidly fill larger venues. This powerful smoke effect can then be highlighted with an
array of colours from the 24 bright LEDs housed in the unit. The smoke and light effects are
easily controlled using either the control panel on the unit, the included keyfob-style RF
wireless remote or by 7-channel DMX connection. The 2.5 litre fluid bottle can be removed for
easy refilling and there is a slot window to indicate the current fluid level.
Innovative design provides either vertical or horizontal powerful smoke jet
Nine powerful 3W LEDs add a bright colourful light show to the fog effect
24 bright 3W LEDs add a colourful light show to the smoke effect
In-built control panel with LCD display
433Mhz keyfob-style RF wireless remote
7-Channel DMX connectivity
Removable 2.5 litre fluid tank
integrated low fluid protection switch ensures the unit can't be damaged if left
running when the tank is empty
www.avsl.com
Vertical/Horizontal LED Fog Jet Machine 1500W
Harrier-1500
Order ref: 160.487UK
User Manual
160.487UK Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Harrier-1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Qtx Harrier-1500

  • Page 1 Damage caused by misuse is not covered by the warranty The Harrier-1500's innovative design means it can provide either vertical or horizontal jets of smoke to rapidly fill larger venues. This powerful smoke effect can then be highlighted with an array of colours from the 24 bright LEDs housed in the unit.
  • Page 2 Clean the fog mechanism periodically by operating with distilled water. It is also recommended to use fog machine cleaning fluid (160.670UK) periodically. Recommended Fluids: For the Harrier-1500, we strongly recommend the following fluid which has been specifically formulated to perform best with any heater-based fog machines. QTX ref code...
  • Page 3: Operation

    Rear Panel: Setting Up: Unpack the Harrier-1500 unit. Open the fluid door, unscrew the cap of the tank and remove to fill with fog fluid. Replace the bottle and screw the cap securely, making sure that the pipes are fed down to the bottom of the bottle to ensure a consistent flow of fluid.
  • Page 4 Down Decrease function or setting value Timer Sets up the timing for the fog output Volume Sets up the volume for the fog output Manual Press and release for fog on demand (max. 15 secs) The LCD panel on the rear of the unit will display the following outputs: Function Display Content...
  • Page 5: Specifications

    If the LCD panel display is set to DMX mode (d001-d512), the unit will operate by DMX control as follows: Channel Value Content No Fog 6-255 Start to fog LEDs off 6-127 Colour change mode 128-255 Colour fade mode Invalid 6-255 Speed adjust for CH2 selection (slow to fast) Invalid...
  • Page 6: Troubleshooting

    Troubleshooting: No power to unit Check mains voltage is correct and socket is switched on Check power lead is OK and connected properly Check mains fuse in unit and fuse in plug top If fuse blowing repeatedly, refer to qualified service personnel Power to unit but no Check fluid level in tank fog output...
