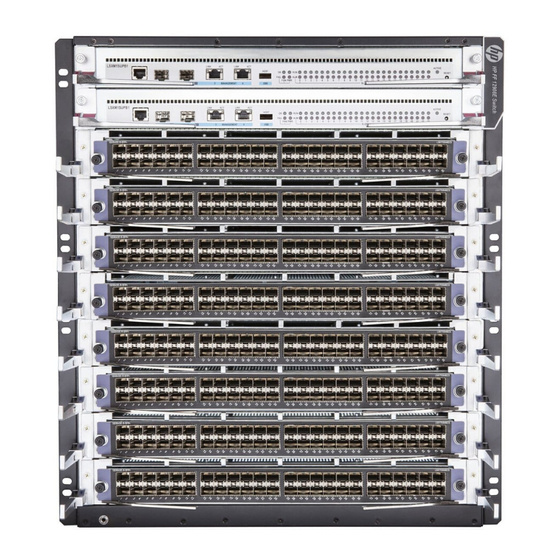

H3C S12500X-AF Switch Series
Installation Guide
New H3C Technologies Co., Ltd.
http://www.h3c.com
Document version: 6W115-20201222

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S12500X-AF Series and is the answer not in the manual?

Questions and answers

Summary of Contents for H3C S12500X-AF Series

  • Page 1 H3C S12500X-AF Switch Series Installation Guide New H3C Technologies Co., Ltd. http://www.h3c.com Document version: 6W115-20201222...
  • Page 2 The information in this document is subject to change without notice. All contents in this document, including statements, information, and recommendations, are believed to be accurate, but they are presented without warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions contained herein.
  • Page 3 Preface This installation guides you through installation of your S12500X-AF switch, including preparing for installation, installing the device, installing FRUs, connecting the device to the network, troubleshooting, and replacement procedures. This preface includes the following topics about the documentation: • Audience.
  • Page 4 Convention Description Multi-level menus are separated by angle brackets. For example, File > Create > > Folder. Symbols Convention Description An alert that calls attention to important information that if not understood or followed WARNING! can result in personal injury. An alert that calls attention to important information that if not understood or followed CAUTION: can result in data loss, data corruption, or damage to hardware or software.
  • Page 5 It is normal that the port numbers, sample output, screenshots, and other information in the examples differ from what you have on your device. Documentation feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments.
  • Page 6: Table Of Contents

    Contents 1 Preparing for installation ·········································································· 1-1 Safety recommendations ································································································································ 1-1 General safety recommendations ··········································································································· 1-1 Electricity safety ······································································································································ 1-1 Handling safety ······································································································································· 1-1 ESD prevention ······································································································································· 1-2 Laser safety ············································································································································· 1-2 Examining the installation site ························································································································· 1-2 Weight support ········································································································································ 1-2 Temperature ············································································································································...
  • Page 7: Preparing For Installation

    Preparing for installation H3C S12500X-AF Switch Series includes the following models: • S12501X-AF • S12502X-AF • S12504X-AF • S12508X-AF • S12512X-AF • S12516X-AF Safety recommendations To avoid possible bodily injury and equipment damage, read Compliance and Safety Manual provided with the switch and all safety recommendations in this chapter carefully before installation.
  • Page 8: Esd Prevention

    (cards, power modules, and transceiver modules). Additionally, the floor and slide rail loading plan must also consider system expansion, such as adding more cards. For more information, see H3C S12500X-AF Switch Series Hardware Reference.
  • Page 9: Humidity

    Table1-1 Temperature requirements Temperature Range Operating temperature 0°C to 40°C (32°F to 104°F) Storage temperature –40°C to +70°C (–40°F to +158°F) Humidity Maintain appropriate humidity in your equipment room, as described in Table1-2. • Lasting high relative humidity can cause poor insulation, electricity leakage, mechanical property change of materials, and metal corrosion.
  • Page 10: Emi

    Identify the number of power modules. The total maximum output power of all power modules must be higher than the system power consumption. For more information about available power modules, see H3C S12500X-AF Switch Series Hardware Reference. Verify that the power system at the installation site meets the requirements of the power modules, including the input method and rated input voltage.
  • Page 11: Space

    Figure1-1 Airflow through the switch (S12516X-AF switch) (1) Chassis air intake direction (2) Chassis air exhaust direction Space For easy installation and maintenance, follow these space requirements: • Reserve a minimum of 1.2 m (3.94 ft) of clearance between the rack and walls or other devices. •...
  • Page 12 Applicable Product code Description Quantity device models S12512X-AF mounting brackets 2150A0CL 1 pair S12512X-AF 2150A0AX S12508X-AF mounting brackets 1 pair S12508X-AF...
  • Page 13 Applicable Product code Description Quantity device models S12504X-AF mounting brackets 2150A0BW 1 pair S12504X-AF S12502X-AF mounting brackets 2150A0D6 1 pair S12502X-AF S12501X-AF mounting brackets 2150A0EH 1 pair S12501X-AF S12501X-AF rack mount rail kit 1 pair of slide rails and 2150A05N S12501X-AF 1 pair of chassis rails S12500X-AF MPU filler panel...
  • Page 14 Applicable Product code Description Quantity device models S12500X-AF LPU filler panel • S12516X-AF: 16 • S12512X-AF: 12 All S12500X-AF 2113A0YV • switch models S12508X-AF: 8 • S12504X-AF: 4 S12502X-AF LPU filler panel 2124A01H S12502X-AF S12501X-AF LPU filler panel 2114A0AV S12501X-AF S12502X-AF power module filler panel 2114A0A4 S12502X-AF...
  • Page 15 Applicable Product code Description Quantity device models • S12516X-AF: 30 pairs • S12512X-AF: 14 pairs • S12508X-AF: 14 M6 screw and cage nut pairs 26020141 All S12500X-AF • switch models S12504X-AF: 12 26020075 pairs • S12502X-AF: 4 pairs • S12501X-AF: 10 pairs Releasable cable tie All S12500X-AF...
  • Page 16 Contents 2 Installing the switch ·················································································· 2-1 Confirming installation preparations ················································································································ 2-1 Installing the switch in a rack ·························································································································· 2-2 Switch dimensions and rack requirements ······························································································ 2-2 Attaching mounting brackets and chassis rails to the switch ·································································· 2-6 Attaching slide rails to the rack ··············································································································· 2-7 Installing cage nuts for attaching mounting brackets ············································································...
  • Page 17: Installing The Switch

    The heaviest device is placed at the bottom of the rack. • The rack can provide power as required by the device. For information about the system power consumption and power module specifications, see H3C S12500X-AF Switch Series Hardware Reference. •...
  • Page 18: Installing The Switch In A Rack

    Installing the switch in a rack Switch dimensions and rack requirements Figure2-1 S12516X-AF switch dimensions 30 mm 12 mm (1.18 in) (0.47 in) 931 mm (36.65 in) 875 mm (34.45 in) 102 mm (4.02 in) (1) Fan tray handle (2) Mounting bracket (3) Cable management bracket...
  • Page 19 Figure2-2 S12512X-AF switch dimensions 30 mm 12 mm (1.18 in) (0.47 in) 753 mm (29.65 in) 875 mm (34.45 in) 102 mm (4.02 in) (1) Fan tray handle (2) Mounting bracket (3) Cable management bracket Figure2-3 S12508X-AF switch dimensions 12 mm 30 mm (0.47 in) (1.18 in)
  • Page 20 Figure2-4 S12504X-AF switch dimensions (with the LSXM104XFAN fan trays) 12 mm 30 mm (0.47 in) (1.18 in) 264 mm (10.39 in) 875 mm (34.45 in) 102 mm (4.02 in) (1) Fan tray handle (2) Mounting bracket (3) Cable management bracket Figure2-5 S12504X-AF switch dimensions (with the LSXM104XFANH fan trays) 12 mm 69 mm...
  • Page 21 Figure2-7 S12501X-AF switch dimensions 27.6 mm (1.09 in) 88.1 mm (3.47 in) 883.6 mm (34.79 in) 92 mm (3.62 in) (1) Power module latch (2) Mounting bracket (3) Cable management bracket To mount the switch in an enclosed rack, make sure the rack meets the requirements described in Table2-1.
  • Page 22: Attaching Mounting Brackets And Chassis Rails To The Switch

    Chassis dimensions Rack requirements bracket to the front end of the cable management bracket 875 mm (34.45 in) from the rear-facing surface of the mounting  bracket to the fan tray handle • Depth (fully configured) with the LSXM104XFAN fan trays installed—1016 mm (40 in) 102 mm (4.02 in) from the rear-facing surface of the mounting ...
  • Page 23: Attaching Slide Rails To The Rack

    Use M4 screws provided with the switch to attach the mounting brackets to the chassis. Determine the installation position of the chassis rails based on the rack depth. Table2-2 Rack depth and chassis rail installation position Rack depth Chassis rail installation position 552 to 799 mm (21.73 to 31.46 in) Positon a 617 to 864 mm (24.29 to 34.02 in)
  • Page 24 Applicable slide rails Switch Chassis weight (full model configuration) Model Adjustment range Occupied space 500 to 800 mm (19.69 LSTM2KSGD0 2 RU to 31.50 in) 630 to 900 mm (24.80 LSXM1BSR 1 RU to 35.43 in) S12508X-AF 220 kg (485.01 lb) 500 to 800 mm (19.69 LSTM2KSGD0 2 RU...
  • Page 25 NOTE: • The LSXM1BSR slide rail accessories include the left slide rail, right slide rail, and front plate. • One rack unit (RU) has two standard installation holes and one auxiliary installation hole in the middle. The space between a standard installation hole and an auxiliary installation hole is wider than the space between two adjacent standard installation holes.
  • Page 26 Figure2-11 Installing the LSXM1BSR slide rails Attaching the LSTM2KSGD0 slide rails (for the S12512X-AF and S12508X-AF switches) Read the signs on the slide rails to identify the right and left slide rails and their front and rear ends. Figure2-12 Right slide rail 1RU (Rack Unit) = 44.45 mm (1.75 in) (1) Guide rail (2) Sign...
  • Page 27 Table2-5 Description for signs on the slide rails Sign Meaning Remarks Front end of the left slide rail Mount this end to the front left rack post. Front end of the right slide rail Mount this end to the front right rack post. Mark the slide rail installation positions on the rack posts.
  • Page 28 Figure2-13 Installing the LSTM2KSGD0 slide rails Attaching the LSVM1BSR10 slide rails (for the S12504X-AF switch) Read the signs on the slide rails to identify the right and left slide rails and their front and rear ends. Figure2-14 Right slide rail (1) Sign (2) Guide rail (3) Ventilation holes...
  • Page 29 Mark the slide rail installation position on the rack posts. Make sure the positioning tab at the bottom of the slide rail is inserted into the lowest square  hole within the 2 RU space on a rack post. The installation holes on the slide rail are aligned with the square holes in the rack post.
  • Page 30 Attaching the LSVM1BSR10 slide rails (for the S12502X-AF switch) Read the signs on the slide rails to identify the front and rear ends of the slide rails. When installing a slide rail, make sure the "FRONT" mark is near the front rack post. Insert the positioning tab at each side of a slide rail into the lowest square hole within the 2 RU installation space on the front and rear rack posts.
  • Page 31: Installing Cage Nuts For Attaching Mounting Brackets

    Align the installation holes in the slide rail with the cage nuts on the rack post, and use M6 screws to secure the slide rail to the rack post. See callout 2 in Figure2-17. Repeat the proceeding steps to install the other slide rail. Make sure the two slide rails are at the same height.
  • Page 32 Figure2-18 Marking cage nut installation holes for attaching mounting brackets (for the S12516X-AF switch) 2-16...
  • Page 33 Figure2-19 Marking cage nut installation holes for attaching mounting brackets (for the S12512X-AF switch) 2-17...
  • Page 34 Figure2-20 Marking cage nut installation holes for attaching mounting brackets (for the S12508X-AF switch) Figure2-21 Marking cage nut installation holes for attaching mounting brackets (for the S12504X-AF switch) 2-18...
  • Page 35: Mounting The Switch In A Rack

    Figure2-22 Marking cage nut installation holes for attaching mounting brackets (for the S12502X-AF switch) Figure2-23 Marking cage nut installation holes for attaching mounting brackets (for the S12501X-AF switch) Mounting the switch in a rack CAUTION: • Hold the chassis handles to move the switch. The S12502X-AF does not have any chassis handles.
  • Page 36 The name plate of the chassis covers the middle two mounting screw holes in the right mounting brackets. Screw installation is not needed for these two mounting holes. Figure2-24 Mounting the S12501X-AF switch in a rack (1) Slide the chassis steadily into the rack along the guide rails (2) Use screws to secure the mounting brackets to the rack Rack-mounting other S12500X-AF switch models Orient the chassis with its rear facing towards the front of the rack.
  • Page 37 Figure2-25 Mounting the S12516X-AF switch in the rack (1) Chassis handle (2) Slide the chassis into the rack (3) Use M6 screws to secure the mounting brackets to the rack Figure2-26 Mounting the S12512X-AF switch in the rack (1) Chassis handle (2) Slide the chassis into the rack (3) Use M6 screws to secure the mounting brackets to the rack 2-21...
  • Page 38 Figure2-27 Mounting the S12508X-AF switch in the rack (1) Chassis handle (2) Slide the chassis into the rack (3) Use M6 screws to secure the mounting brackets to the rack 2-22...
  • Page 39 Figure2-28 Mounting the S12504X-AF switch in the rack (1) Chassis handle (2) Slide the chassis into the rack (3) Use M6 screws to secure the mounting brackets to the rack 2-23...
  • Page 40: Grounding The Switch

    Figure2-29 Mounting the S12502X-AF switch in the rack (1) Slide the chassis into the rack (2) Use M6 screws to secure the mounting brackets to the rack Grounding the switch CAUTION: • Reliably grounding the switch is crucial to lightning protection and EMI protection. Ground the switch reliably before you use it.
  • Page 41 Connect the ring terminal of the grounding cable to a grounding post of the grounding strip, and fasten the grounding cable to the grounding strip with the hex nut. Figure2-30 Connecting the grounding cable to a grounding strip (1) Use the grounding screws to attach the two-hole grounding lug to the grounding point (2) Grounding sign (3) Grounding strip (4) Grounding post...
  • Page 42 Figure2-31 Connecting the grounding cable to a grounding strip for an S12501X-AF switch (1) Grounding sign (2) Use grounding screws to attach the two-hole grounding lug to the grounding point (3) Grounding strip (4) Grounding post (5) Ring terminal (6) Hex nut 2-26...
  • Page 43 Contents 3 Installing FRUs ························································································ 3-1 Attaching an ESD wrist strap ·························································································································· 3-1 Installing MPUs ··············································································································································· 3-2 Installing MPUs for the S12516X-AF, S12512X-AF, and S12508X-AF switches ··································· 3-3 Installing MPUs for the S12504X-AF switch ··························································································· 3-4 Installing MPUs for the S12502X-AF switch ··························································································· 3-5 Installing LPUs ················································································································································...
  • Page 44: Installing Frus

    Installing FRUs As a best practice, connect power cords after installing all required FRUs. To ensure good ventilation, install filler panels on unused slots. Long-time exposure to strong air flow might cause discomfort. To avoid this hazard, do not stand close to the air outlet vents while the switch is operating.
  • Page 45: Installing Mpus

    As a best practice, fasten the captive screws to a torque of 5 kgf-cm (0.49 Nm). An S12501X-AF switch does not require MPUs. Unless otherwise stated, the term "MPU" in this document refers to MPUs and cloud SEUs. For the compatibility between the switch and the MPUs, see H3C S12500X-AF Switch Series Hardware Reference.
  • Page 46: Installing Mpus For The S12516X-Af, S12512X-Af, And S12508X-Af Switches

    You can install one MPU, or two MPUs for redundancy on the switch. If you are to install one MPU, install it in either of the MPU slots. Installing MPUs for the S12516X-AF, S12512X-AF, and S12508X-AF switches For the S12516X-AF, S12512X-AF, and S12508X-AF switches, the ejector levers of the MPUs and the ejector lever seats on the MPU slots have pink marks.
  • Page 47: Installing Mpus For The S12504X-Af Switch

    (1) Loosen the captive screws and remove the filler panel (2) Insert the MPU into the slot (4) Push the MPU by the middle part on the front panel (5) Pull the ejector levers inward (6) Fasten the captive screws on the MPU Installing MPUs for the S12504X-AF switch The S12504X-AF switch MPU marks and MPU slot edges are pink-marked.
  • Page 48: Installing Mpus For The S12502X-Af Switch

    Figure3-3 Installing an MPU (S12504X-AF switch) (1) Loosen the captive screws and remove the filler panel (2) Pivot up the handle (3) Push the MPU into the slot along the guide rails (4) Push the MPU until the handle breaks touch the slot edges tightly (5) Push the handle until the MPU is secure in position (6) Fasten the screws on the MPU Installing MPUs for the S12502X-AF switch...
  • Page 49: Installing Lpus

    As shown by callout 4 in Figure3-4, close the ejector lever until the latch locks the ejector lever in place. Figure3-4 Installing an MPU Installing LPUs CAUTION: • Before you install an LPU on the switch, make sure the connectors on the LPU are not damaged or blocked.
  • Page 50: Installing S12500-X Lpus

    IMPORTANT: As a best practice, fasten the captive screws to a torque of 5 kgf-cm (0.49 Nm). For the compatibility between the switch and the LPUs (also called interface modules), see H3C S12500X-AF Switch Series Hardware Reference. The S12501X-AF and S12502X-AF switches support only S12500X-AF Type H LPUs.
  • Page 51 Figure3-5 Installing an interface module adapter (S12516X-AF switch) (1) Push the interface module adapter slowly along the guide rails into the slot (2) Fasten the screws to secure the interface module adapter to the chassis Installing an S12500-X LPU The S12500-X LPU edges and the ejector lever seats on the LPU slots have purple marks. To install an S12500-X LPU: As shown in Figure3-6, loosen the captive screws that secure the LPU to the protection box, pull the ejector levers of the LPU outward, and pull out the LPU from the protection box.
  • Page 52 Figure3-6 Removing an S12500-X LPU from the protection box (1) Loosen the captive screws that secure the LPU to the protection box (2) Pull the ejector levers outward (3) Pull the LPU out of the protection box...
  • Page 53: Installing S12500X-Af Lpus

    Figure3-7 Installing an S12500-X LPU (S12516X-AF switch) (1) Push the LPU slowly along the guide rails into the slot (2) Pull the ejector levers outward (3) Push the LPU by the middle part on the front panel (4) Pull the ejector levers inward (5) Fasten the captive screws on the LPU Installing S12500X-AF LPUs CAUTION:...
  • Page 54 IMPORTANT: Keep filler panels installed on unused LPUs. No interface module adapter is required to install an S12500X-AF LPU on the switch. The S12500X-AF LPU ejector levers and the ejector lever seats on the LPU slots have purple marks. Installing an LPU with common ejector levers As shown by callout 1 in Figure3-8, remove the filler panel from the target LPU slot.
  • Page 55 Figure3-8 Installing an LPU with common ejector levers (S12516X-AF switch) (1) Push the LPU slowly along the guide rails into the slot (2) Pull the ejector levers outward (3) Push the LPU by the middle part on the front panel (4) Pull the ejector levers inward (5) Fasten the captive screws on the LPU Installing an LPU with foldable ejector levers...
  • Page 56: Installing Cable Management Brackets

    As shown by callout 5 in Figure3-9, push the ejector levers inward towards the front panel. As shown by callout 6 in Figure3-9, fasten the captive screws to secure the LPU in the chassis. As shown by callout 7 in Figure3-9, rotate the ejector levers upward to the vertically closed position.
  • Page 57: Installing Switching Fabric Modules

    The cable management brackets are installed on the two sides of the LPU slots. As a best practice, install cable management brackets after you have installed LPUs. As shown in Figure3-10, insert the cable management bracket end that has a spring tab into the cable management bracket hole until the bracket has close contact with the hole.
  • Page 58 LSXM1CGP12FX1). The S12501X-AF and S12502X-AF switches do not require switching fabric modules. For the compatibility between the switch and the switching fabric modules, see H3C S12500X-AF Switch Series Hardware Reference. The switch has six vertically-oriented switching fabric module slots at the chassis rear. The switch comes with all switching fabric module slots empty.
  • Page 59 inward until the spring clips lock the ejector levers in place and the switching fabric module is completely seated in the slot. Figure3-11 Removing the switching fabric module from the protection box (S12516X-AF switching fabric module) (1) Five screws to secure the protection box to the switching fabric module (2) Loosen the captive screws (3) Hold the protection box to disengage it from the connector side of the switching fabric module Figure3-12 Installing a switching fabric module (S12516X-AF switch)
  • Page 60: Installing A Filler Panel In A Switching Fabric Module Slot

    Installing a filler panel in a switching fabric module slot IMPORTANT: As a best practice, fasten captive screws to a torque of 5 kgf-cm (0.49 Nm). The switch comes with empty switching fabric module slots. Install a filler panel in a switching fabric module slot if you are not to install a switching fabric module in it.
  • Page 61: Removing A Filler Panel From A Switching Fabric Module Slot

    Removing a filler panel from a switching fabric module slot As shown by callout 1 in Figure3-14, loosen the captive screws on the ejector levers. As shown by callout 2 in Figure3-14, rotate outward the ejector levers. Then pull the filler panel part way out of the slot.
  • Page 62: Installing Fan Trays For S12516X-Af, S12512X-Af, And S12508X-Af Switches

    CAUTION: When you hot swap fan trays, follow these guidelines: • Ensure electricity safety. • For an S12501X-AF switch, you can hot swap a fan tray only when the other two fan trays are operating correctly. For the other S12500X-AF switch models, you can hot swap a fan tray only when the other fan tray is operating correctly.
  • Page 63: Installing Fan Trays For An S12504X-Af Switch

    Figure3-15 Installing a fan tray (S12516X-AF switch) (1) Align the fan tray with the fan tray slot (2) Fasten the captive screws Installing fan trays for an S12504X-AF switch IMPORTANT: As a best practice, fasten captive screws to a torque of 5 kgf-cm (0.49 Nm). To install a fan tray for an S12504X-AF switch: Orient the fan tray correctly.
  • Page 64: Installing Fan Trays For An S12502X-Af Switch

    Figure3-16 Installing a fan tray for the S12504X-AF switch (1) Align the positioning pin on the fan tray with the positioning hole above the fan tray slot (2) Insert the fan tray into the chassis (3) Fasten the captive screws on the fan tray Installing fan trays for an S12502X-AF switch CAUTION: To install a fan tray in slot FAN1, orient the fan tray so that the LED is on the left side of the front...
  • Page 65: Installing Fan Trays For An S12501X-Af Switch

    Figure3-17 Installing a fan tray Installing fan trays for an S12501X-AF switch The following procedure uses the FAN3 slot as an example. To install a fan tray: Unpack the fan tray. As shown by callouts 1 and 2 in Figure3-18, orient the fan tray with the Top mark on the top. Grasping the handles of the fan tray with one hand and supporting the fan tray bottom with the other, slide the fan tray into the slot until it is fully seated in the slot and has firm contact with the backplane.
  • Page 66: Installing Power Modules

    Figure3-18 Installing a fan tray Installing power modules On an S12501X-AF switch, the power module slots are located on the right of the rear panel. On the other S12500X-AF switch models, the power module slots are located on both sides of the rear panel.
  • Page 67 Figure3-19 Removing a filler panel (1) Figure3-20 Removing a filler panel (2) Figure3-21 Installing a power module (S12516X-AF switch) 3-24...
  • Page 68: Connecting The Power Cord

    Connecting the power cord CAUTION: • Power on the switch after you have installed fan trays on the switch. • Make sure each power cord has a separate circuit breaker. • Turn off the circuit breaker before you connect the power cord. Connecting an AC power cord CAUTION: Use AC power cords with straight connectors for an S12501X-AF switch.
  • Page 69: Installing Transceiver Modules

    Connect the DC power cord connector to the DC input receptacle of the power module. Fasten the screw on the connector to secure the connector to the receptacle. Connect the other end of the power cord to an external DC power source. Figure3-23 Connecting the DC power cord Installing transceiver modules CAUTION:...
  • Page 70: Installing A Cfp2 Transceiver Module

    Pivot the clasp of the module up. For a QSFP+ module that uses a plastic pull latch, skip this step. Hold the module by its two sides and align the module with the port. Gently push the module into the port until it has firm contact with the port, as shown in Figure3-26. For an SFP+ module, press the module down so you can push the module straight into the ...
  • Page 71: Installing A Cxp Transceiver Module

    Figure3-25 Installing a CFP2 transceiver module (S12516X-AF switch) (1) Pivot the module handle up (2) Gently push the module into the port For information about connecting an optical fiber, see "Connecting your switch to the network." Installing a CXP transceiver module CAUTION: •...
  • Page 72: Connecting A Cxp Fiber Cable

    • Read the following instructions before you connect a CXP fiber cable. Failure to follow these instructions might cause damage to the CXP fiber cable. • H3C provides only CXP AOC cables. CXP fiber cables are hot swappable. To connect a CXP fiber cable: Unpack the cable.
  • Page 73 Choose cables based on ports and transmission distance: • SFP+ copper cable—Short distance transmission between SFP+ ports. • QSFP+ copper cable—Short distance transmission between QSFP+ ports. • QSFP+ to SFP+ copper cable—Short distance transmission between QSFP+ and SFP+ ports. • QSFP28 copper cable—Short distance transmission between QSFP28 ports.
  • Page 74 Contents 4 Setting up an IRF fabric ··········································································· 4-1 IRF fabric setup flowchart ······························································································································· 4-1 Planning IRF fabric setup ································································································································ 4-2 Planning IRF fabric size and the installation site ····················································································· 4-2 Identifying the master switch and planning IRF member IDs ·································································· 4-2 Planning IRF topology and connections··································································································...
  • Page 75: Setting Up An Irf Fabric

    Setting up an IRF fabric You can use H3C IRF technology to connect and virtualize S12500X-AF switches into a large virtual switch called an "IRF fabric" for flattened network topology, high availability, scalability, and manageability. For more information about IRF, see H3C S12500-X&S12500X-AF Switch Series IRF Configuration Guide.
  • Page 76: Planning Irf Fabric Setup

    Planning IRF fabric size and the installation site Plan IRF fabric size and the installation site, as follows: Use H3C S12500-X&S12500X-AF Switch Series IRF Configuration Guide as a reference to identify the number of member switches that your system software version supports for an S12500X-AF IRF fabric.
  • Page 77: Planning Irf Topology And Connections

    Prepare an IRF member ID assignment scheme. An IRF fabric uses member IDs to uniquely identify and manage its members, and you must assign each IRF member switch a unique member ID. Planning IRF topology and connections Connect the IRF member switches through IRF ports, the logical interfaces for the connections between IRF member switches.
  • Page 78: Connecting The Physical Irf Ports

    Bind physical ports to IRF-port 1 on one switch and to IRF-port 2 on the other switch. • Execute the display irf configuration command to verify the basic IRF settings. For more information about configuring basic IRF settings, see H3C S12500-X&S12500X-AF Switch Series IRF Configuration Guide. Connecting the physical IRF ports Follow these guidelines to connect the 10GE/40GE/100GE ports between the IRF member switches: •...
  • Page 79 Create a Layer 3 interface, assign it an IP address, and make sure the IRF fabric and the remote network management station can reach each other. Use Telnet or SNMP to access the IRF fabric from the network management station. (See H3C S12500-X&S12500X-AF Switch Series Fundamentals Configuration Guide.) Verify that you can manage all member switches as if they were one node.
  • Page 80 Contents 5 Connecting your switch to the network ····················································· 5-1 Accessing the switch for the first time ············································································································· 5-1 Setting up the configuration environment································································································ 5-1 Setting terminal parameters ···················································································································· 5-2 Powering on the switch ··························································································································· 5-2 Configuring the switch ····································································································································· 5-4 Configuring authentication on a user interface························································································...
  • Page 81: Connecting Your Switch To The Network

    Telnet or SSH for remote access through Ethernet ports. You manage console login users at AUX user lines, and manage Telnet and SSH users at VTY user lines. For more information about login methods and user lines, see H3C S12500-X&S12500X-AF Switch Series Fundamentals Configuration Guide.
  • Page 82: Setting Terminal Parameters

    Figure5-1 Connecting a terminal to the switch (S12516X-AF switch) Setting terminal parameters To configure and manage the switch through the console port, you must run a terminal emulator program, HyperTerminal or PuTTY, on your configuration terminal. You can use the emulator program to connect a network device, a Telnet site, or an SSH site.
  • Page 83 • All the network cables, fibers, power cords, and grounding cables have been correctly connected. • The input power voltage meets the requirement of the switch. • The console cable is correctly connected, the terminal or PC used for configuration has started, and the configuration parameters have been set.
  • Page 84: Configuring The Switch

    • The system status LEDs on the MPUs show that the system is operating normally. For more information about LED behaviors, see H3C S12500X-AF Switch Series Hardware Reference. Configuring the switch By default, the switch does not authenticate the console login user at an AUX interface. To increase system security and enable remote management: •...
  • Page 85: Configuration Example

    Configuration example Configuring Telnet service # Enter system view. <Sysname> system-view # Enable the Telnet server. [Sysname] telnet server enable # Enter the view of user line VTY 0. [Sysname] user-interface vty 0 # Enable password authentication on the user line. [Sysname-line-vty0] authentication-mode password # Set the password to hello in plaintext.
  • Page 86: Verifying The Network Configuration

    MDI/MDIX auto-sensing. Connect the 10/100/1000BASE-T ports by using category 5 or above twisted pair cables. Connect the 10GBase-T ports by using category 6A or 7 twisted pair cables. For more information about Ethernet twisted pairs, see H3C S12500X-AF Switch Series Hardware Reference.
  • Page 87: Connecting The Switch To The Network Through An Optical Fiber

    Connecting the switch to the network through an optical fiber You can install a transceiver module (see "Installing FRUs") in a fiber port and use an optical fiber to connect the port to the network. For more information about optical fibers, see H3C S12500X-AF Switch Series Hardware Reference.
  • Page 88 Contents 6 Troubleshooting ······················································································· 6-1 Troubleshooting methods································································································································ 6-1 System failures at startup································································································································ 6-1 No display on the configuration terminal ································································································· 6-1 Garbled display on the configuration terminal ························································································· 6-2 System failures during operation ···················································································································· 6-2 Power module failure ······································································································································ 6-2 Fan tray failure ················································································································································...
  • Page 89: Troubleshooting

    • The MPUs and LPUs provide port status LEDs, with which you can detect port failures. For more information about port status LEDs, see H3C S12500X-AF Switch Series Hardware Reference. If you cannot locate failures by following the guidelines in this chapter, contact the local agents or technical support engineers.
  • Page 90: Garbled Display On The Configuration Terminal

    To resolve the issue: Execute related commands to locate the fault. If a configuration error is found, re-configure the switch or restore the factory-default settings. For more information, see H3C S12500-X&S12500X-AF Switch Series Fundamentals Configuration Guide. If the issue persists, contact H3C Support.
  • Page 91: Fan Tray Failure

    If the new power module can operate correctly, the old power module has failed. Contact your sales agent or local service engineer to replace the old power module. 10. If the issue persists, contact H3C Support. Fan tray failure...
  • Page 92: Mpu Failure

    Verify that the empty LPU slots and power module slots are installed with filler panels. Install filler panels in empty slots. Replace the fan tray. If the issue persists, contact H3C Support. MPU failure Symptom The MPU is operating incorrectly and its LED status is as follows: •...
  • Page 93: Switching Fabric Module Failure

    LPU. Calculate the total power consumption, and make sure your power modules can provide enough power. For more information, see H3C S12500X-AF Switch Series Hardware Reference. Remove and reinstall the LPU to make sure it is installed securely. For more information about installing an LPU, see "Installing FRUs."...
  • Page 94 Calculate the total power consumption, and make sure your power modules can provide enough power. For more information, see H3C S12500X-AF Switch Series Hardware Reference. Remove and reinstall the switching fabric module to make sure the module is installed securely.
  • Page 95: Interface Failure

    If the interface uses a transceiver module, perform the following tasks: a. Make sure the interface type is compatible with the transceiver and that the transceiver is compatible with the cable. For more information, see H3C S12500X-AF Switch Series Hardware Reference.
  • Page 96 Contents 7 Replacement procedures ········································································· 7-1 Replacing a power module······························································································································ 7-1 Replacing a card ············································································································································· 7-2 Replacing an MPU/LPU ·························································································································· 7-3 (Optional) Removing an interface module adapter ················································································· 7-6 (Optional) Removing an LPU protective blank panel ·············································································· 7-7 Replacing a switching fabric module ······································································································· 7-8 Replacing a fan tray ········································································································································...
  • Page 97: Replacement Procedures

    Replacement procedures CAUTION: • When replacing FRUs while the switch is operating, ensure electrical safety. • Follow the replacement procedures strictly to avoid bodily injury and device damage. • Long-time exposure to strong air flow might cause discomfort. To avoid this hazard, do not stand close to the air outlet vents while the switch is operating.
  • Page 98: Replacing A Card

    Figure7-3 Removing the power cord from a PSR3000-54AHD power module (1) Press the release latch on the connector (2) Pull the connector out of the power module Press the latch on the power module to the handle direction and pull the power module part way out of the slot.
  • Page 99: Replacing An Mpu/Lpu

    • MPU or LPU—Loosen the captive screws on the card. • Switching fabric module—Press the buttons on the ejector levers to release them. If you are not to install a card in a slot, install a blank filler panel in the slot to ensure adequate ventilation and dust prevention.
  • Page 100 Figure7-5 Removing an LPU (1) Loosen the captive screw (2) Rotate the ejector levers outward (3) Pull the LPU slowly out of the slot along the guide rails...
  • Page 101 Figure7-6 Removing an S12504X-AF MPU (1) Loosen the captive screw (2) Pivot up the handle of the MPU (3) Pull the MPU slowly out of the slot along the guide rails Figure7-7 Removing an S12504X-AF MPU (1) Press the latch to release the ejector lever and fully open the ejector lever (2) Holding the ejector lever with one hand and the latch with the other, pull the MPU part out of the slot (3) Holding the MPU by the front panel with one hand and supporting the bottom with the other, pull the MPU out of the slot along the guide rails...
  • Page 102: (Optional) Removing An Interface Module Adapter

    Figure7-8 Removing an LPU with foldable ejector levers (S12516X-AF) (1) Simultaneously pivot the ejector levers towards each other until they stop (2) Loosen the captive screws (3) Simultaneously privet the ejector levers away from each other until they stop (4) Holding the LPU by its front and supporting its bottom, pull the LPU out of the slot (Optional) Removing an interface module adapter CAUTION: If you are not to install an LPU in an LPU slot that has an interface module adapter installed, remove...
  • Page 103: (Optional) Removing An Lpu Protective Blank Panel

    Figure7-9 Removing an interface module adapter (1) Loosen the screws on the interface module adapter (2) Pull the interface module adapter slowly out of the LPU slot (Optional) Removing an LPU protective blank panel A protective blank panel is installed over the LPU slots to avoid damage during transportation. To remove the protective blank panel: Remove the screws that secure the protective blank panel to the slots.
  • Page 104: Replacing A Switching Fabric Module

    Replacing a switching fabric module CAUTION: • Remove the fan tray before you remove a switching fabric module. Reinstall the fan tray immediately after you finish installing or replacing a switching fabric module on an operating switch. After the fan tray starts operating, you can replace or install switching fabric modules whose slots are covered by the other fan tray.
  • Page 105: Replacing A Fan Tray

    Figure7-11 Replacing a switching fabric module (S12516X-AF switch) (1) Press the buttons on the ejector levers (2) Pull the switching fabric module slowly out of the slot along the guide rails Replacing a fan tray WARNING! • To avoid bodily injury, do not touch the spinning fans when you replace the fan tray. •...
  • Page 106 Put on an ESD wrist strap, and make sure the wrist strap makes good skin contact and is reliably grounded. For more information, see "Installing FRUs." (Optional.) Loosen the captive screws on the fan tray, as shown by callout 1 in Figure7-12. Skip this step for an S12501X-AF fan tray.
  • Page 107: Replacing A Transceiver Module

    Figure7-13 Removing a fan tray (S12501X-AF switch) (1) Hold the fan tray handles (2) Pull the fan tray gently out of the slot Replacing a transceiver module WARNING! • When replacing a transceiver module on an operating switch, ensure electrical safety. •...
  • Page 108: Replacing A Cxp Transceiver Module

    Install a new SFP+/SFP/QSFP+/QSFP28/QSFP-DD transceiver module in the port. For the installation procedure, see "Installing FRUs." If you are not to install a new SFP+/SFP/QSFP+/QSFP28/QSFP-DD transceiver module in the port, install the dust plug that is provided with the LPU into the port, to prevent particles from entering the port.
  • Page 109 IMPORTANT: The bend radius of the cable must be a minimum of eight times the cable diameter. To replace an SFP+/QSFP+/QSFP28/QSFP-DD/QSFP+ to SFP+ copper cable: Wear an ESD wrist strap, and make sure it makes good skin contact and is reliably grounded. For more information, see "Installing FRUs."...
