DMP Electronics 1183-WINT Series Installation Manual

Description
The 1183INT Series wireless heat detectors are used with DMP 1100INT Series International Wireless Receivers. The
1183INT Series is available in two models: 1183INT-135F and 1183INT-135R.
The 1183INT-135F is a fixed temperature detector that reacts to heat by responding to the fixed 135° (57.2 C)
temperature setting. When activated, an alarm is sent to the control panel. The 1183INT-135F model has a black dot
on the heat collector fin for identification.
The 1183INT-135R model is a combination rate-of-rise and fixed temperature detector that detects heat quickly
by responding to a rapid temperature increase or a fixed 135° (57.2 C) temperature setting. The element responds
to a rapid rise in temperature and sends an alarm to the control panel when the ceiling temperature increases
at a minimum rate of 15°F (-9.4 C) per minute.
An alarm is also sent to the panel if the ceiling
temperature reaches the fixed 135° (57.2 C)
setting if the rate-of-rise is not exceeded.
Compatibility
1100INT Series International Wireless Receivers
What is Included
The 1183INT Wireless Heat Detector package
includes the following items:
• One 1183INT-135F Heat Detector with DMP
wireless transmitter installed
OR
• One 1183INT-135R Heat Detector with DMP
wireless transmitter installed
AND
• One 3V lithium CR123A battery
• Hardware pack
• Zone name and number label
• Serial number labels
Transmitter Serial Number
For your convenience, an additional pre-printed serial number label is included. Prior to installing the device, record
the serial number or place the pre-printed serial number label on the panel programming sheet. This number is
required during programming. As needed, use the zone name and number label to identify a specific transmitter.
Programming the Transmitter in the Panel
Locate and record the detector serial number. This number is required during programming. Program the device as a
FIRE type zone in Zone Information during panel programming. At the Serial Number: prompt, enter the eight-digit
serial number. Continue to program the zone as directed in the panel programming guide.
Note: When a receiver is installed, powered up, or the panel is reset, the supervision time for transmitters is reset.
If the receiver has been powered down for more than one hour, wireless transmitters may take up to an additional
hour to send a supervision message unless tripped, tampered, or powered up. This operation extends battery life for
transmitters. A missing message may display on the keypad until the transmitter sends a supervision message.
Transmitted Signal Outputs
The heat detector provides the signals listed in the table:
Heat Collector Fin
The 1183INT Series heat detectors use a heat collector fin (See Figure 1) to detect temperature changes.
The fin is spring loaded and sensitive to handling. Do not set the detector on the collector fin
or put pressure on the fin while handling as this could cause damage to the internal operation.
1183-WINT Series Wireless Heat Detector
Signal
Alarm
Low battery
Detector head removed
INST ALLA TION GUIDE
Alignment Notch
Detector Cover
Detector Cap
Heat
Collector
Fin

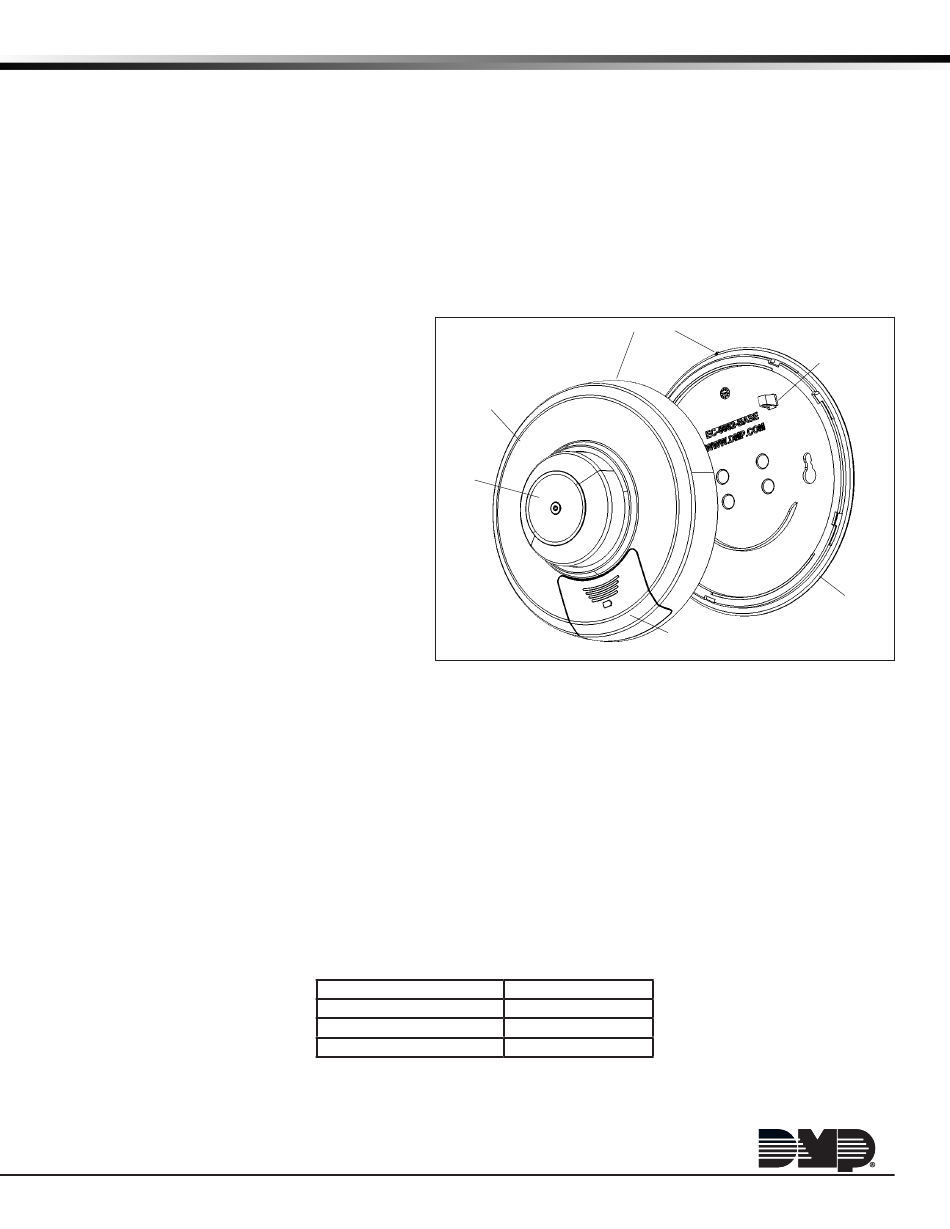

Figure 1: Heat Detector Exploded View
Keypad Display
ALARM
LO BAT
TROUBLE
Tamper Post
Mounting Base
Battery Compartment
