DMP Electronics 1184 Installation Manual

Wireless carbon monoxide detector

Advertisement

Quick Links

1184 WIRELESS CARBON
MONOXIDE DETECTOR
Installation Guide

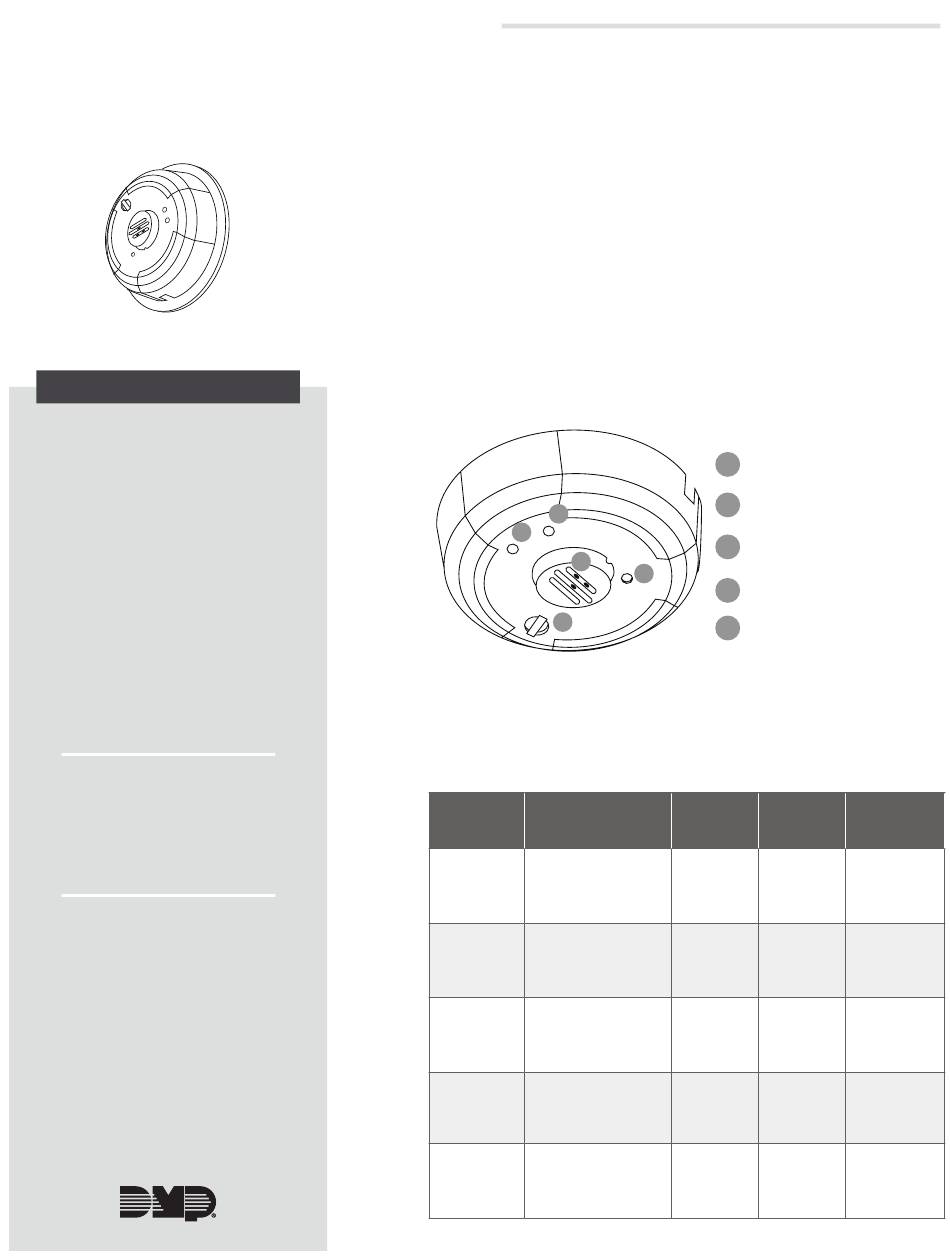

Figure 1: 1184
DESCRIPTION
The 1184 is a 3 V battery powered
wireless carbon monoxide (CO)
detector that provides early
warning when the electrochemical
sensing technology measures CO
levels in the air.
The detector has an electrochemical
CO sensor assembly coupled with
an 1100 Series wireless transmitter
and an audible sounder. The
transmitter can send alarm, trouble,
tamper, and low battery condition
messages to the alarm panel.
The detector works well for difficult
wiring locations, for critically
aesthetic applications, or for areas
where hazardous materials exist.
Compatibility
All DMP 1100 Series Receivers and
Panels.
What is Included?
1184 Carbon Monoxide Detector
with DMP wireless transmitter
installed
3V lithium Model CR123-FIRE
battery
Hardware pack
1
PROGRAM THE TRANSMITTER
IN THE PANEL
1.
In ZONE INFORMATION, enter the wireless ZONE NO: - and
press CMD.
2.
Enter the ZONE NAME and press CMD.
Select CO for ZONE TYPE and press CMD.
3.
4.
At NEXT ZN?, select NO.
5.
Select YES when WIRELESS? displays.
6.
Enter the eight-digit SERIAL#:- and press CMD.
7.
Enter the SUPRVSN TIME and press CMD.
3
Figure 2: Carbon Monoxide Detector Callouts
Detector Annunciation Notifications
The 1184 provides the following transmitter messages, LED
display, and audible annunciations:
MESSAGE
Alarm
Low
battery
Detector
Head
Removed
Tamper
(XTL/XT30/XT50)
Detector
End of Life
2 GREEN LED
2
3 RED LED
4
1
4 CO ENTRY POINTS
5
5 AUDIBLE SOUNDER
KEYPAD
RED
DISPLAY
LED
Blinks
once
ALARM
every
second
Blinks
once
LO BAT
every 45
seconds
Blinks
once
TROUBLE
every 5
seconds
TAMPER
(XR150/XR550)
Off
OPEN
Blinks
once
TROUBLE
every 10
seconds
Table 1: Detector Notifications
1 TEST/HUSH BUTTON
Normal
Alarm
GREEN
SOUNDER
LED
Off
Temporal 4
Chirps after
Off
7 days
One chirp
Off
every
45 seconds
On
Off
One chirp
Off
every
45 seconds
