DMP Electronics 1126R Installation Manual

1126R WIRELESS CEILING-MOUNT
360° PIR MOTION DETECTOR
Installation Guide
Figure 1: 1126 Housing
DESCRIPTION
The 1126R Wireless Ceiling-Mount
PIR Motion Detector is a 360° PIR
(passive infrared) device designed
for a variety of ceiling-mount
applications.
Its compact design provides a
small sensor that can be remotely
configured. The 1126R has excellent
RFI and noise immunity. The pulse
count feature allows for multiple
trips before an alarm is initiated.
The 1126R features
Disarm/Disable functionality. When
this option is enabled, Zone Tripped
messages disable when the system
is disarmed to allow for extended
transmitter battery life. Supervision,
Tamper, and Low Battery are the
only messages that are sent to the
panel when the system is disarmed.
Compatibility
All DMP 1100 Series Wireless
Receivers and panels.
What is Included?
• One 1126R Wireless Ceiling-Mount
360° PIR Motion Detector
• Two CR123A 3.0V lithium
batteries
1
PROGRAM THE PANEL
When programming the 1126R in the panel, refer to the panel
programming guide as needed.
Enter 6653 (PROG) to access the PROGRAMMER menu.
1.
2. Navigate to ZONE INFORMATION and enter the wireless
ZONE NO:- and press CMD.
Enter the ZONE NAME and press CMD.
3.
Select NT (night) as the ZONE TYPE and press CMD.
4.
5. Select the AREA:.
6. At the NEXT ZN? prompt, select NO and press CMD.
Select YES when WIRELESS? displays and press CMD.
7.
8. Enter the eight-digit SERIAL# and press CMD.
9. Enter the SUPVSN TIME and press CMD.
10. At DISARM DISABLE, select NO or YES and press CMD.
11. Enter the PULSE COUNT and press CMD.
12. Select LOW or HIGH for the SENSITIVITY level and press
CMD.
13. At the NEXT ZN? prompt, select YES if you are finished
programming. Select NO for additional programming
options.
2
OPEN THE 1126R
1. Remove the locking screw from the side of the 1126R.
2. Remove the plastic dome by gently squeezing the sides of
the dome and lifting it off the cover.
3. Hold the base and twist the cover counterclockwise until
the 1126R separates. See Figure 2.

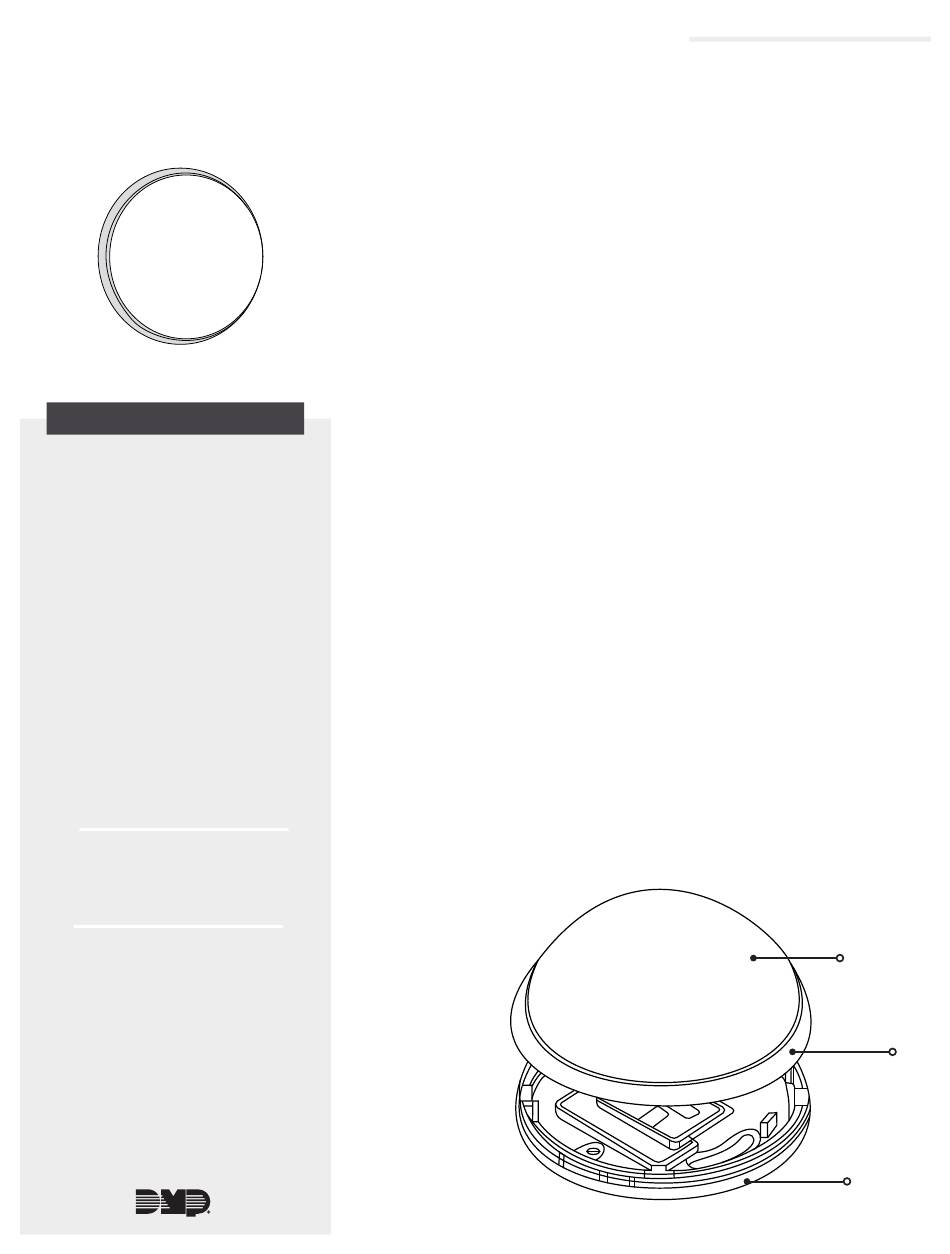

Figure 2: Open the 1126R
Plastic Dome
Cover
Base
