1161/1162 Residential Wireless Detectors
Description
The Model 1161 Smoke Detector with Sounder, and 1162 Smoke/Heat Detector with Sounder are residential, photo
electric wireless detectors used with DMP Wireless. Model 1162 also offers a built-in fixed and rate-of-rise heat
detector.
Optional integrated fixed 135°F temperature and rate‑of‑rise heat detector. The rate‑of‑rise function detects
heat quickly by responding to a rapid temperature increase. The element responds to a rapid rise in temperature
and sends an alarm to the panel. The fixed temperature function reacts to heat by responding to the fixed 135°
temperature setting. When activated, an alarm is sent to the panel.
Compatibility
All DMP 1100 Series Wireless Receivers and Panels
What is Included
The 1161/1162 Residential Wireless Detector
package includes the following items:
• One 1161 Smoke Detector with DMP wireless
transmitter installed
OR
• One 1162 Smoke/Heat Detector with DMP
wireless transmitter installed
AND
• Two 3V lithium Panasonic CR123A or
DMP CR123-FIRE batteries
• Hardware pack
• Zone name and number label
• Serial number labels
Transmitter Serial Number
For your convenience, an additional pre-printed
serial number label is included. Prior to installing
the device, record the serial number or place
the pre‑printed serial number label on the panel
programming sheet. This number is required
during programming. As needed, use the zone name and number label to identify a specific transmitter.
Programming the Transmitter in the Panel
Program the device as a zone in Zone Information during panel programming. At the Serial Number: prompt, enter
the eight-digit serial number. Continue to program the zone as directed in the panel programming guide.
Note: When a receiver is installed, powered up, or the panel is reset, the supervision time for transmitters is
reset. If the receiver has been powered down for more than one hour, wireless transmitters may take up to
an additional hour to send a supervision message unless tripped, tampered, or powered up. This operation
extends battery life for transmitters. A missing message may display on the keypad until the transmitter sends
a supervision message.
Transmitted Signal Outputs
The smoke detector provides the signals listed in the table:
INST ALLA TION GUIDE
Optional Heat Sensor
Test/Silence Button
Strobe Chamber Latch
Alignment Arrows
Detector Cap

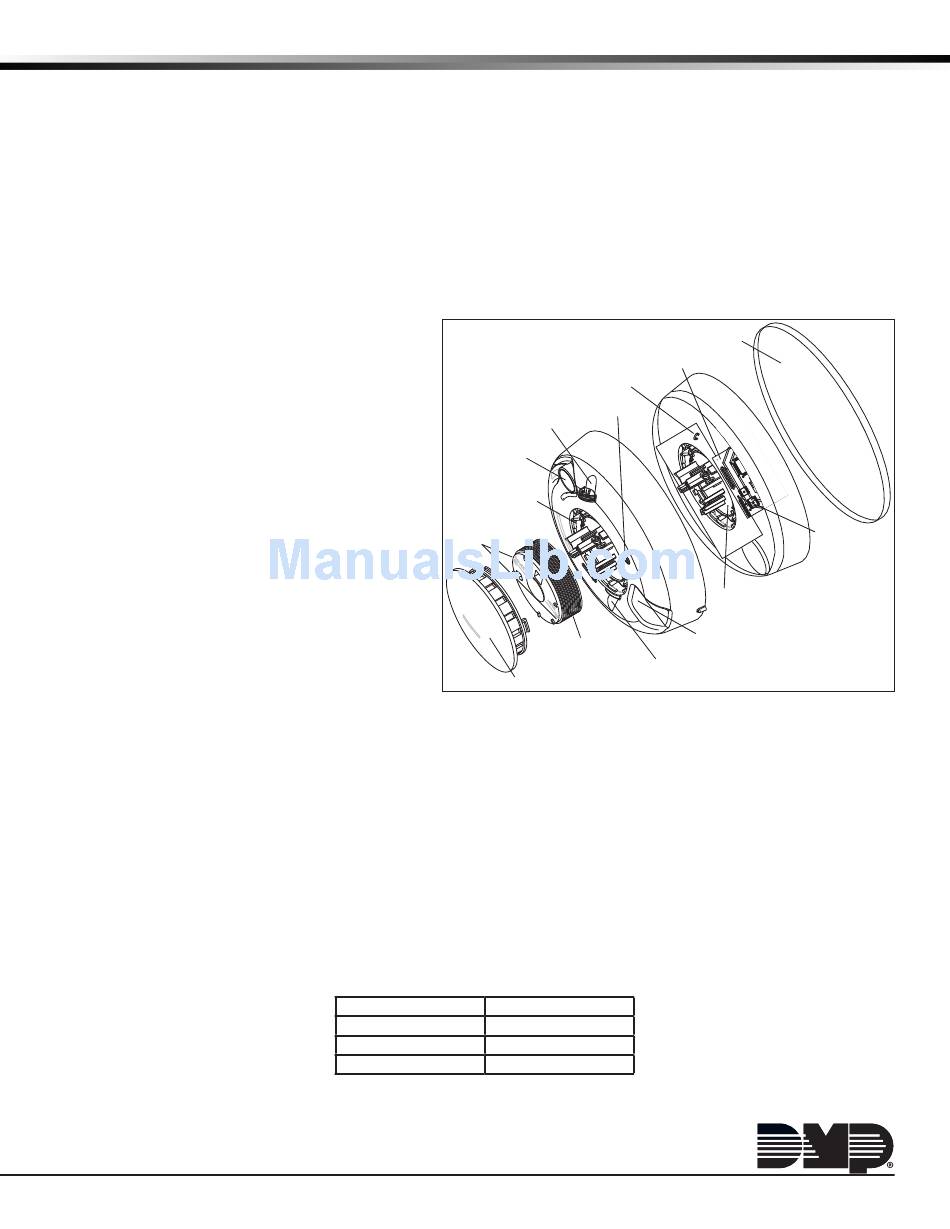

Figure 1: Smoke Detector Exploded View
Signal
Keypad Display
Alarm
ALARM
Alarm restore
Low battery
LO BAT
Transmitter PCB
Test Button
Detector LED
Optical Base
Sounder Vent
Smoke Chamber
Optional Heat Sensor
OK
Base
Transmitter
Survey LED
Advertisement
Table of Contents
Related Manuals for DMP Electronics 1161
Summary of Contents for DMP Electronics 1161
- Page 1 INST ALLA TION GUIDE 1161/1162 Residential Wireless Detectors Description The Model 1161 Smoke Detector with Sounder, and 1162 Smoke/Heat Detector with Sounder are residential, photo electric wireless detectors used with DMP Wireless. Model 1162 also offers a built-in fixed and rate-of-rise heat detector.
- Page 2 Selecting the Proper Location (LED Survey Operation) Room Room Kitchen Dining The 1161/1162 Transmitter provides a survey capability to allow Room Section A one person to confirm transmitter communication with the Living Room receiver. The 1161/1162 Transmitter PCB Red Survey LED turns...
-
Page 3: Installing The Detector
7. Line up the raised tab on the lip of the detector with the slot on the lip of the mounting base. See Figure 4. Important: The control panel alarm and all auxiliary functions should be verified for a complete test of the system. Digital Monitoring Products 1161/1162 Detectors Installation Guide... - Page 4 To remove the detector from the mounting base, grasp the detector and turn it counterclockwise approximately 15 degrees. The detector should snap off of the mounting base. See Figure 5. Figure 5: Remove Detector from Base Digital Monitoring Products 1161/1162 Detectors Installation Guide...
-
Page 5: Installing Or Replacing The Batteries
6. Line the new smoke chamber up with the smoke chamber base by lining up the arrows on the smoke Detector Cap chamber to the latches on the optical base and snap down into place. Figure 7: Detector Parts Digital Monitoring Products 1161/1162 Detectors Installation Guide... -
Page 6: Maintaining The Detector
Important: The control panel alarm and all auxiliary functions should be verified for a complete test of the system. Maintaining the Detector The 1161/1162 detectors are designed for easy field service and maintenance. When installed and used properly, they require minimal maintenance. The smoke detector should be tested annually per NFPA 72 2013 Standard section 14.4.3.2 testing table for System smoke detectors used in one-and two-family dwellings. -
Page 7: Fire Prevention And Escape
• If you have children and/or physically challenged people residing in your household, use window decals to help emergency personnel identify the sleeping quarters of these individuals. Digital Monitoring Products 1161/1162 Detectors Installation Guide... -
Page 8: Fcc Information
FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications made by the user and not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
