DMP Electronics 1121-WINT PIR Installation Sheet

Description

The 1121-WINT PIR (Passive Infrared) Motion Detector is a wireless, low current sensor that can be used in a variety
of motion detector applications. With a built-in tamper switch and switch-selectable high/low sensitivity and pet
immunity, the 1121-WINT is very flexible. For added convenience, the 1121-WINT is designed to mount directly on
the wall or with the optional corner/ceiling mounting bracket.

Features

• Low current technology
• Low battery reporting capability
• Two Minute Walk test for testing coverage
• Calibration free height installation from 4.9 to 8.2 feet (1.5 to 2.5
meters) high
• Pet immunity selectable from 33 lbs. up to 60 lbs (15 kg up to 27.2 kg)
• Auto-Power Save (APS) mode
• Sensitivity adjustment

Compatibility

1100 Series International Wireless Receivers

What is Included

The 1121-WINT PIR Motion Detector includes the following:
• One 1121-WINT PIR detector with DMP wireless transmitter
• One CR123A battery
• Zone name and number label
• Serial number label
• One optional corner/ceiling mounting bracket with hardware

Installation

For your convenience, an additional pre-printed serial number label is included. Prior to installing the device, record
the serial number or place the pre-printed serial number label on the panel programming sheet. This number is
required during programming. As needed, use the zone name and number label to identify a specific transmitter.

Programming the PIR in the Panel

Program the device as a zone in Zone Information during panel programming. At the Serial Number: prompt, enter
the eight-digit serial number. Continue to program the zone as directed in the panel programming guide.
Note: When a receiver is installed, powered up, or the panel is reset, the supervision time for transmitters is reset.
If the receiver has been powered down for more than one hour, wireless transmitters may take up to an additional
hour to send a supervision message unless tripped, tampered, or powered up. This operation extends battery life for
transmitters. A missing message may display on the keypad until the transmitter sends a supervision message.

Selecting the Best Location (LED Survey Operation)

The PIR transmitter provides a survey capability to allow one person to confirm transmitter communication with
the receiver while the cover is removed. Refer to Figure 1 to remove the PIR front cover. The PIR transmitter
PCB Red Survey LED turns on whenever data is sent to the receiver then immediately turns off when the receiver
acknowledgement is received. Pressing the PIR tamper switch is a convenient way to send data to the receiver to
confirm operation. The PIR circuit board LED lights to indicate motion and the Survey LED briefly lights to confirm
operation. See Figure 3 for LED locations. See Installing or Replacing Batteries.
When the transmitter does not receive an acknowledgement from the receiver, the transmitter Survey LED remains
on for about 8 seconds to let you know communication is not established. Relocate the transmitter or receiver until
the Survey LED immediately turns off indicating the transmitter and receiver are communicating properly. If the
transmitter is not programmed into the panel, it does not operate properly.
INST ALLA TION SHEET
1121-WINT PIR Motion Detector

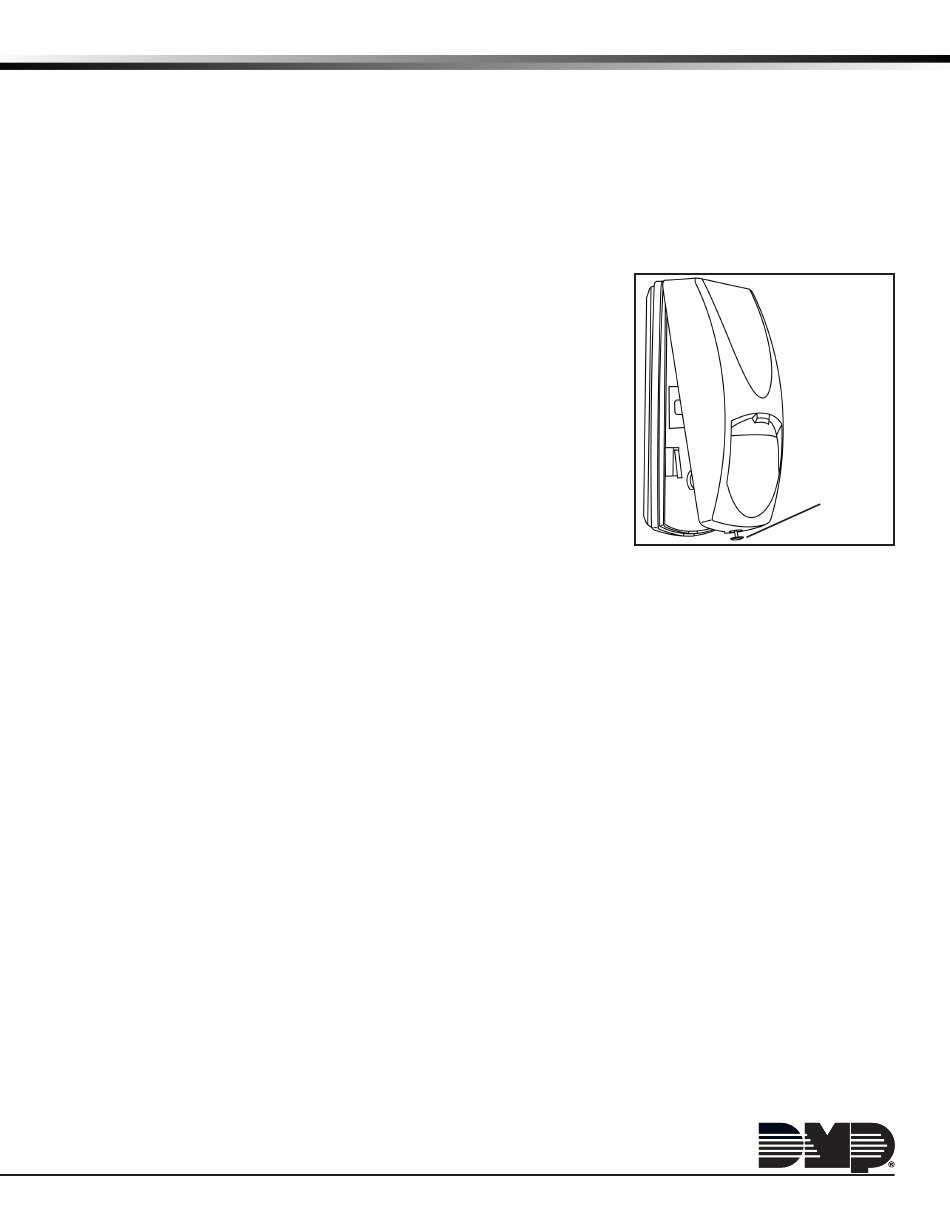

Unscrew the
holding screw
and gently lift
the cover.
Figure 1: Remove the Cover
