1127W PIR MOTION DETECTOR
Installation Guide

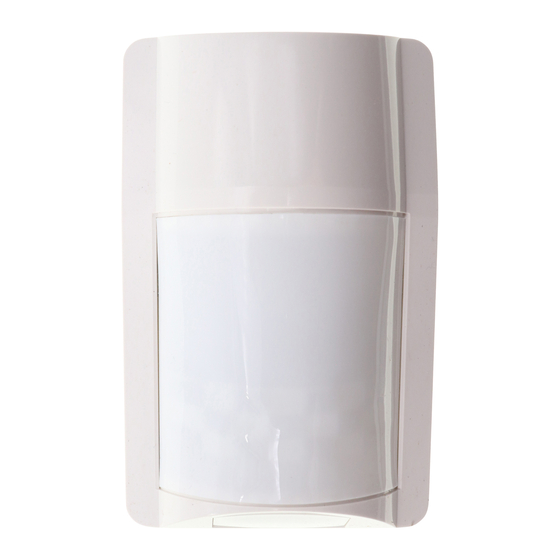

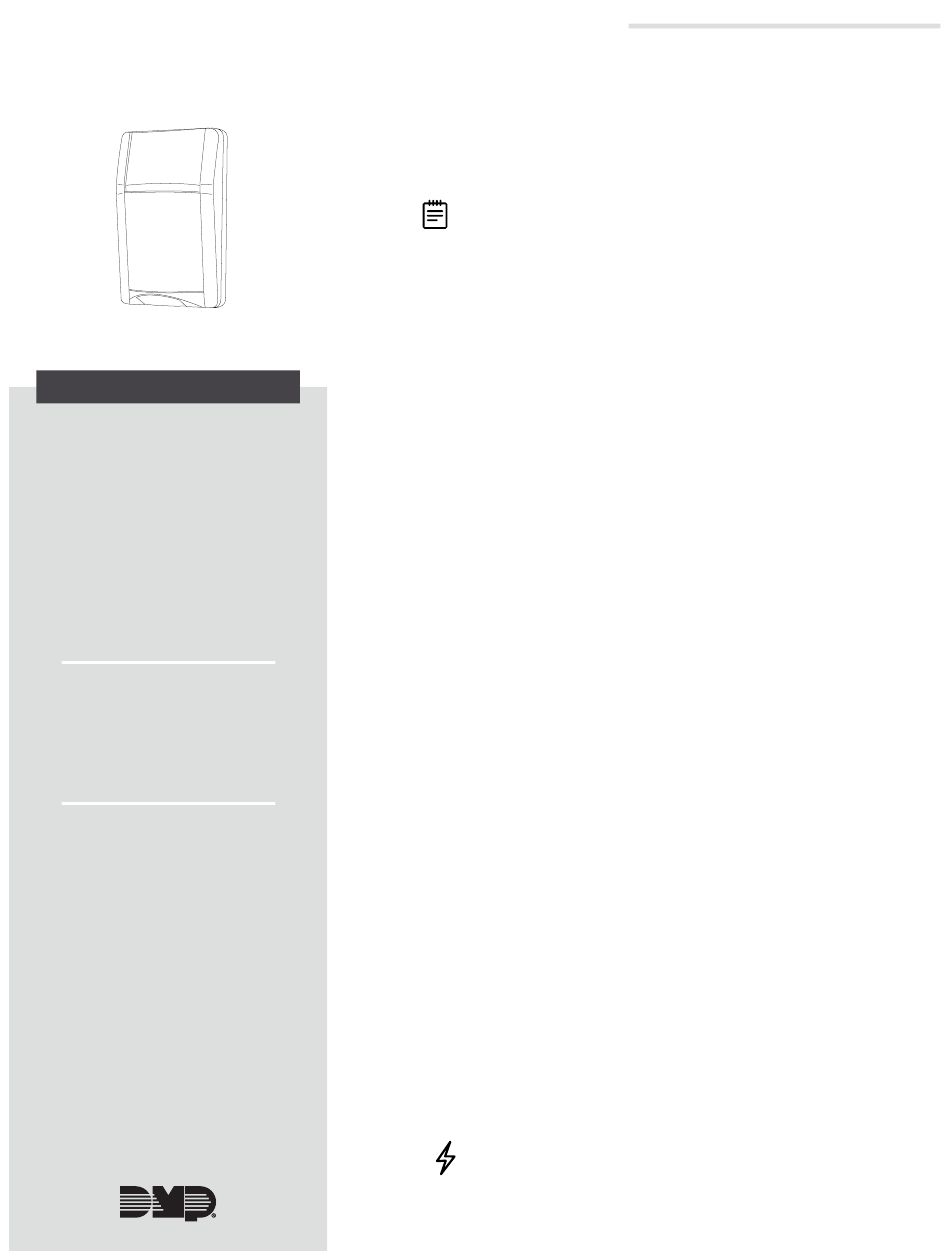

Figure 1: 1127W PIR
DESCRIPTION
The 1127W is an 1100 Series Wireless
Wall Mount Wide Angle PIR. The
1127W provides Pet Immunity up to
40 lbs. The Detection area is
36° x 84° angle using a Fresnel
lens. The PIR includes a case
tamper and functionality to allow
sensor configuration from the
panel. Features include R.F.I. and
Noise Immunity, Sensitivity, Pulse
Count, Walk Test, & Disarm Disable
programming.
Compatibility
• All DMP 1100 Series Wireless
Receivers and panels
What is Included?
• One PIR detector with DMP
wireless transmitter
• Two CR123 batteries
• Hardware pack
1
PROGRAM THE PIR IN THE PANEL
When programming the 1127W in the panel, refer to the panel
programming guide as needed.
Note: When setting up a wireless system, it is recommended
to program zones and connect the receiver before installing
batteries in the transmitters.
1. In ZONE INFORMATION, enter the wireless zone number.
2. Enter the zone name.
3. Select NT (Night) as the ZONE TYPE.
4. Select the AREA.
5. At the NEXT ZN? prompt, select NO.
6. Select YES when WIRELESS? displays.
Enter the eight-digit SERIAL# and press CMD.
7.
Enter the SUPRVSN TIME and press CMD.
8.
Choose whether or not to enable DISARM DISABLE (panel
9.
firmware Version 172 and higher only). Selecting YES allows
the 1127W to be disabled for Night and Exit type zones while
the area is disarmed.
10. At PULSE COUNT, choose either 2 or 4. The pulse count is
the number of pulse inputs (trips) the 1127W needs to sense
before going into alarm.
11. At SENSITIVITY, choose either LOW or HIGH. Selecting
LOW sensitivity may reduce false alarms for installations in
harsh environments.
12. At the NEXT ZN? prompt, select YES if you are finished
programming the zone. Select NO if you would like to access
additional programming options.
When a receiver is installed, powered up, or the panel is reset, the
supervision time for transmitters is reset. If the receiver has been
powered down for more than one hour, wireless transmitters may
take up to an additional hour to send a supervision message unless
tripped, tampered, or powered up. This operation extends battery
life for transmitters. A missing message may display on the keypad
until the transmitter sends a supervision message.
2
INSTALL THE BATTERIES
Observe polarity when installing the batteries. Use only 3V lithium
batteries, DMP Model CR123.
If the batteries reach the factory preset low level, a Low Battery
signal is sent to the panel. The 1127W PIR remains operational
for approximately 30 days to allow adequate time to replace the
batteries.
1. Remove the front cover. See Figure 2.
2. Remove the batteries (if installed) before installing new
batteries.
3. Observe polarity and insert the batteries into the battery
holder.
Caution: Risk of fire, explosion, and burns. Do not recharge,
disassemble, heat above 212°F (100°C), or incinerate.
Properly dispose of used batteries.
