Assembly Instructions
W02D2081L
Please read this manual carefully before beginning assembly of this product.Keep this manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the W02D2081L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wampat W02D2081L

Summary of Contents for Wampat W02D2081L

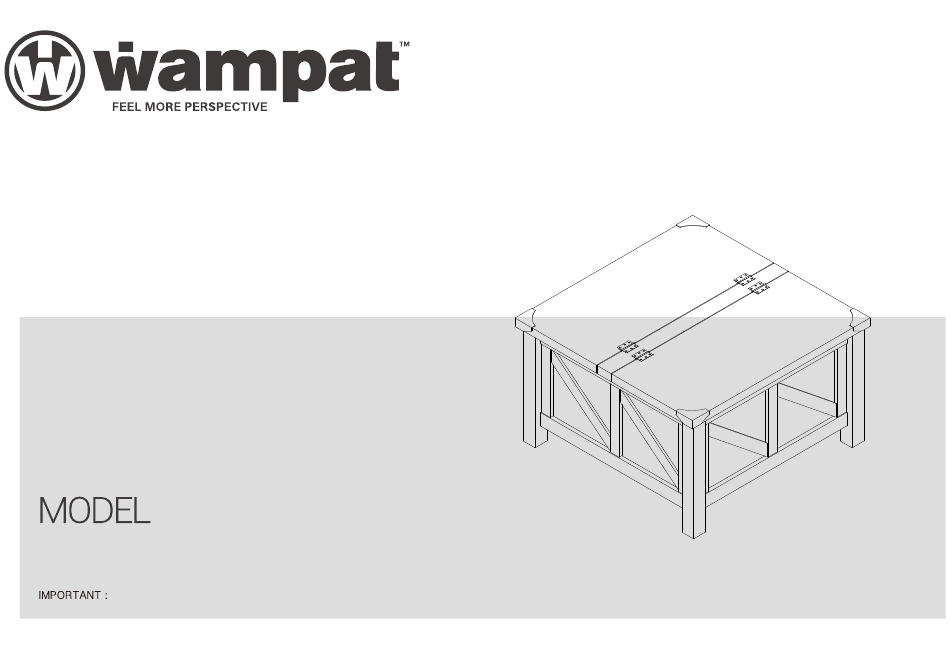

  • Page 1 Assembly Instructions W02D2081L Please read this manual carefully before beginning assembly of this product.Keep this manual for future reference.
  • Page 4 This illustration shows how the CAM fastening system works. Esta ilustración muestra como funciona el sistema de fijación de leva. A × 12 B × 10 C × 6 D × 12 Cette illustration montre comment le système de fixation de la CAME fonctionne. DO NOT OVER TIGHTEN.
  • Page 5 · Screw parts (A) into panels (1). ３...
  • Page 6 · Screw parts (L) into panel (2).
  • Page 7 · Insert dowel (M) into panel (2), · then attach panel (3) to panel (2), · Insert and secure cam locks (B) to panel (3) to lock it.
  • Page 8 · Insert dowels (C) into panels (2,3), · then attach panels (1) to panels (2,3), · Insert and secure cam locks (B) to panels (2,3) to lock it.
  • Page 9 · Screw parts (L) into panels (4,5).
  • Page 10 · Insert dowels (F) into panels (6), · then attach panels (4,5) to panels (6), · Insert and secure cam locks (H) to panels (6) to lock it.
  • Page 11 · Screw parts (A) into panels (6), · Screw parts (L) into panels (4,5), · Secure pins (I) into panels (4,5).
  • Page 12 · Insert dowels (C) into panel (6), . Insert dowels (F) into panels (4,5), · then attach panels (1,2,3) to panels (4,5,6), · Insert and secure cam locks (B) to panels (2,3) to lock it, · Insert and secure cam locks (H) to panels (1) to lock it.
  • Page 13 · Insert dowels (C) into panels (2,3), . Insert dowels (F) into panels (1), · then attach panels (4,5,6) to panels (1,2,3), · Insert and secure cam locks (B) to panels (2,3) to lock it, · Insert and secure cam locks (H) to panels (1) to lock it.
  • Page 14 · Screw parts (A) into panel (7), · then attach panel (7) to panels (6), · Insert and secure cam locks (H) to panels (6) to lock it, · Attach parts (J) to panels (4,5).
  • Page 15 · Screw parts (K) to panels (7,8) using parts(E). x 24...
  • Page 16 ×2 · Screw parts (G) to panels (6,8) using parts(D). x 12...
  • Page 17 Final Assembly...
