USER'S MANUAL
VUT 80 P mini L/R
VUE 80 P mini L/R
Air handling unit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VUT 80 P mini Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vents VUT 80 P mini Series

Summary of Contents for Vents VUT 80 P mini Series

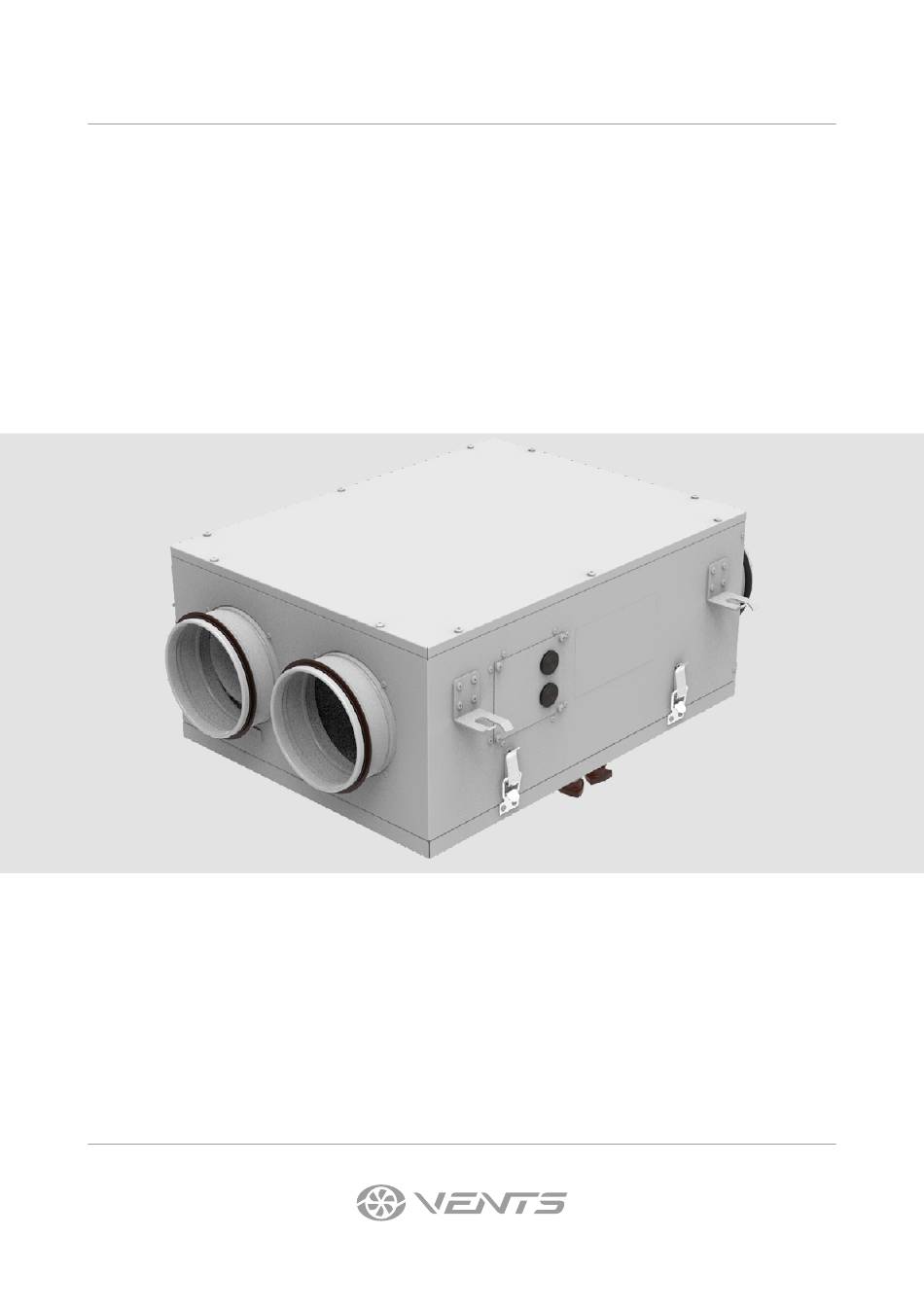

  • Page 1 USER’S MANUAL VUT 80 P mini L/R VUE 80 P mini L/R Air handling unit...

  • Page 2: Table Of Contents

    VUT/VUE 80 P mini L/R CONTENTS Safety requirements ..................................2 Purpose ........................................ 4 Delivery set ......................................4 Designation key ....................................4 Technical data ....................................4 Design and operating principle ............................6 Mounting and set-up .................................. 7 Connection to power mains ..............................10 Technical maintenance ................................
  • Page 3 Do not use the unit in a hazardous or explosive environment containing spirits, gasoline, insecticides, etc. Do not close or block the intake or extract vents in order to ensure the efficient air flow. Do not sit on the unit and do not put objects on it.

  • Page 4: Purpose

    VUT/VUE 80 P mini L/R PURPOSE The unit is designed to ensure continuous mechanical air exchange in houses, offices, hotels, cafes, conference halls, and other utility and public spaces as well as to recover the heat energy contained in the air extracted from the premises to warm up the filtered stream of intake air.
  • Page 5 VUT 80 P mini L/R VUE 80 P mini L/R Model Speed III. III. Voltage [V / 50-60 Hz] Power [W] Unit current [A] 0,15 0,34 0,15 0,34 Air flow [m3/h] Sound pressure level at 3 m distance [dBA] Transported air temperature [°С] -15...+40 Casing material Aluzinc...

  • Page 6: Design And Operating Principle

    VUT/VUE 80 P mini L/R DESIGN AND OPERATING PRINCIPLE DESIGN, BOTTOM VIEW VUT/VUE mini 80 P L VUT/VUE mini 80 P R 1. Exhaust fan; 2. Supply filter; 3. Heat exchanger; 4. Thermostat; 5. Terminal block; 6. Extract filter; 7. Supply fan. Operating principle The unit has the following operating logic: extract air from the room flows into the unit, where it is filtered by the extract filters, then air flows through the heat exchanger and is exhausted outside by the exhaust fan.

  • Page 7: Mounting And Set-Up

    MOUNTING AND SET-UP BEFORE MOUNTING MAKE SURE THE CASING DOES NOT CONTAIN ANY FOREIGN OBJECTS (E.G. FOIL, PAPER). WHILE INSTALLING THE UNIT ENSURE CONVENIENT ACCESS FOR SUBSEQUENT MAINTENANCE AND REPAIR. The unit may be suspended on threaded rods or may be rigidly fixed to a horizontal surface by anchor bolts. Fasteners for fan mounting should be ordered separately.
  • Page 8 VUT/VUE 80 P mini L/R UNIT MODIFICATIONS The unit is available both in left- and right-handed modifications for easy installation and providing minimum distances for access to the unit. Service side Extract air Intake air VUT/VUE mini 80 P R Exhaust air Supply air Drain pipe...
  • Page 9 CONDENSATE DRAINAGE The VUE 80 P mini units are equipped with an enthalpy heat exchanger and do not require condensate drainage. The VUT 80 P mini units are equipped with a drain pan for condensate collection and removal. Temperature differences between supply and extract air flows in heat recovery units lead to condensate formation. Condensate is collected in the drain pan and is removed outside by the drain pipes.

  • Page 10: Connection To Power Mains

    VUT/VUE 80 P mini L/R CONNECTION TO POWER MAINS POWER OFF THE POWER SUPPLY PRIOR TO ANY OPERATIONS WITH THE UNIT. THE UNIT MUST BE CONNECTED TO POWER SUPPLY BY A QUALIFIED ELECTRICIAN. THE RATED ELECTRICAL PARAMETERS OF THE UNIT ARE GIVEN ON THE MANUFACTURER’S LABEL.

  • Page 11: Technical Maintenance

    TECHNICAL MAINTENANCE DISCONNECT THE UNIT FROM POWER SUPPLY BEFORE ANY MAINTENANCE OPERATIONS! MAKE SURE THE UNIT IS DISCONNECTED FROM POWER MAINS BEFORE REMOVING THE PROTECTION! Maintenance operations of the unit are required 3-4 times per year. They include general cleaning of the unit and the following operations: 1.
  • Page 12 VUT/VUE 80 P mini L/R 2. Heat exchanger maintenance (once a year). Some dust may accumulate on the heat exchanger block even in case of regular maintenance of the filters. To maintain the high heat recovery efficiency, regular cleaning is required. Maintenance of the heat exchanger Press out on the latches.

  • Page 13: Troubleshooting

    VUT/VUE 80 P mini L/R TROUBLESHOOTING PROBLEM POSSIBLE REASONS TROUBLESHOOTING The fan(s) do(es) not get Make sure the power supply line is connected correctly, No power supply. started. otherwise troubleshoot a connection error. Extract filter clogging. Clean or replace the extract filter. Check the heat exchanger for icing.

  • Page 14: Manufacturer's Warranty

    VUT/VUE 80 P mini L/R MANUFACTURER’S WARRANTY The product is in compliance with EU norms and standards on low voltage guidelines and electromagnetic compatibility. We hereby declare that the product complies with the provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU of the European Parliament and of the Council, Low Voltage Directive (LVD) 2014/35/EU of the European Parliament and of the Council and CE-marking Council Directive 93/68/EEC.

  • Page 15: Certificate Of Acceptance

    CERTIFICATE OF ACCEPTANCE Unit Type Air handling unit Model Serial Number Manufacture Date Quality Inspector’s Stamp SELLER INFORMATION Seller Address Phone Number E-mail Purchase Date This is to certify acceptance of the complete unit delivery with the user’s manual. The warranty terms are acknowledged and accepted.
  • Page 16 V59-2EN-02...

This manual is also suitable for:

Vut 80 p mini lVut 80 p mini rVue 80 p mini lVue 80 p mini r
