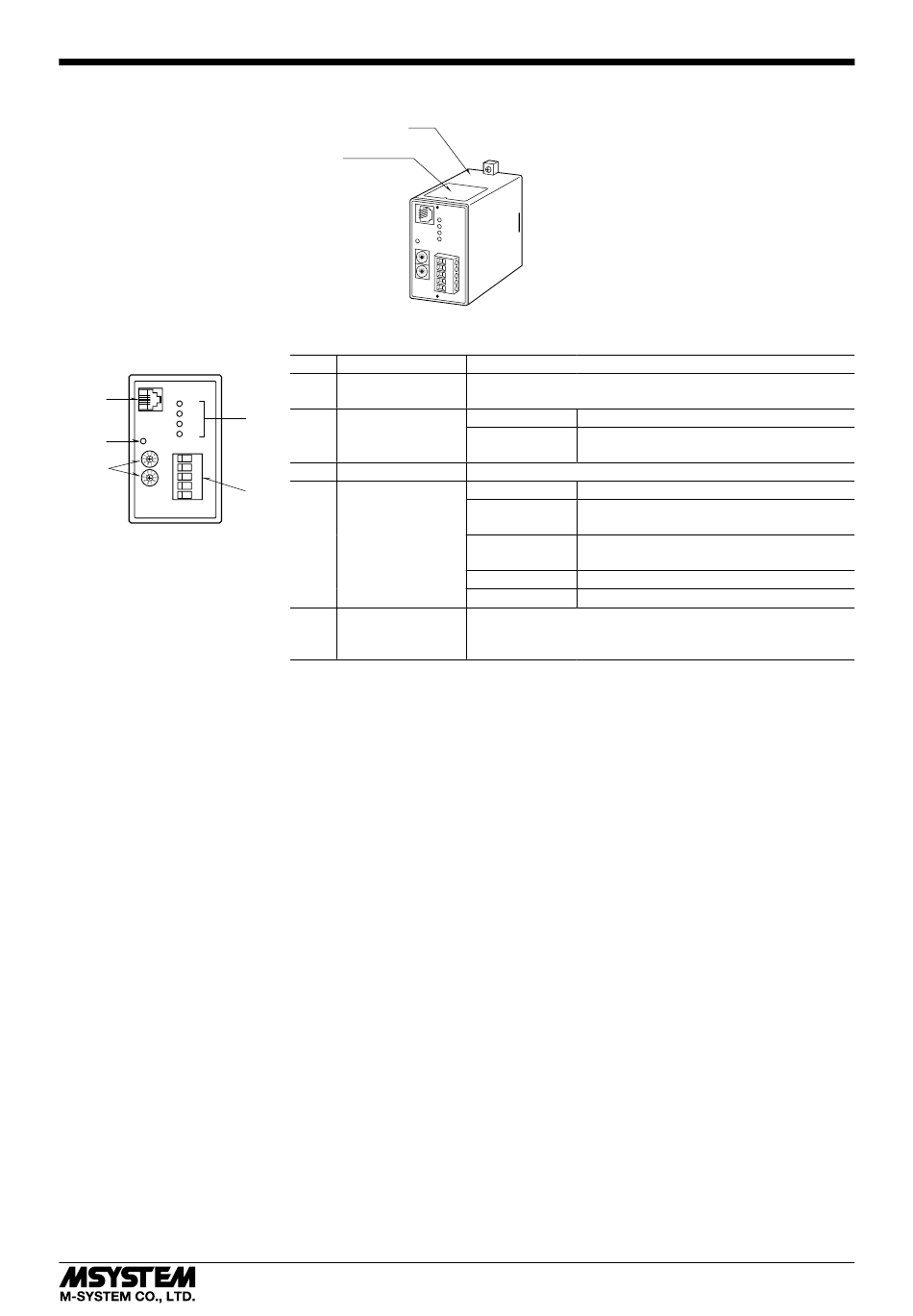

COMPONENT IDENTIFICATION
■ FRONT PANEL CONFIGURATION
PU-2x
A
L RUN
L ERR.
L I／O
L COM
B
PWR
STATION NO.
X10
C
X1
Body
Specifications
NAME
Modular jack for
A
factory calibration
D
Power indicator
B
LED
C
Station No. setting
E
Status indicator
D
LED
E
Euro type connec-
tor terminal for
T-Link
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
FUNCTIONS
Used only for factory calibration.
MARKING (color)
ON: Powered.
PWR (green)
OFF: No Power
Selectable within 00 – 99. (factory set to: 00)
MARKING (color)
ON: Normal Communication
L RUN (red)
OFF: Communication Cutoff (Timeout Error)
ON: Communication Data Error
L ERR. (red)
OFF: Normal Communication
L I/O (red)
Blinking during normal I/O function
L COM (red)
Blinking during normal T-Link Communication
For wiring to T-Link
61F
FUNCTIONS
FUNCTIONS
EM-6635 Rev.2 P. 2 / 3
