Follett Horizon Elite 1810 Series Quick Start Manual

Features

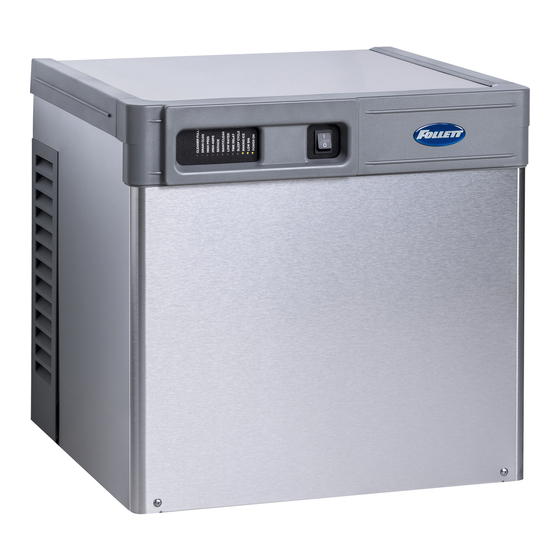

Horizon Elite
1810 series ‑ up to 1784 lb (810 kg) in 24 hours
2110 series ‑ up to 2039 lb (925 kg) in 24 hours
‑ automatically transport ice through a tube with RIDE
technology from up to 75' (22.9 m) away
‑ chewable, compressed nugget ice is preferred over cubes¹
‑ Chewblet ice dispenses reliably from ice and
beverage dispensers
‑ available with approximately 1.00" (2.54 cm) long standard
Chewblet ice or optional 3/8" (0.95 cm) long Micro
Chewblet ice
™
‑ quiet production without noisy harvest cycles
Revolutionary, scale inhibiting design
‑ produces ice that has 15% the TDS of the incoming water for
optimum dispensing and long life in drinks
‑ quarantines and regularly expels scale producing dissolved
solids to dramatically reduce scale buildup
‑ increases time between descaling and reduces or eliminates
the need for expensive scale treatment
‑ saves 35% water compared to comparable cubers
‑ three phase models ENERGY STAR
Durable, attractive ice machine
‑ regular bearing inspection or replacement is not required
‑ upgraded, easy‑to‑read LED operating status and
diagnostic display
Designed with sanitation in mind
‑ Agion silver‑based antimicrobial product protection of key
®
ice and water contact components²
‑ floatless, sealed design inhibits formation of biofilms
‑ semi‑automatic cleaning and sanitizing system
Warranty
‑ 3 years parts and labor, 5 years compressor parts ³
Certifications
1 Independent third party studies. Contact Follett for details.
2 Disclaimer: Antimicrobial protection is limited to the treated components and does not treat water or ice.
³ Refer to price list for additional warranty information.
®
certified
®
remote 1810, 2110 series Chewblet® ice machine
Short form specification:
Ice machine to be a Follett® Horizon Elite ice machine model
______________ [Insert size/series, condenser type and installation/
mounting, from model number guide] capable of producing compressed
nugget ice using an efficient, sanitary horizontal evaporator/auger system
and delivering ice by a flexible wire reinforced transport tube to
ice storage bin, ice and water dispenser, ice and beverage dispenser,
drop‑in dispenser or Ice Manager
evaporator with utility docking station, front‑mounted unit status display,
evaporator water inlet at harvest end with automatic flush while producing
ice, and semi‑automatic cleaning and sanitizing system, plus all the features
listed below and mounting/performance‑enhancing accessories checked.
Model configurations
Install/
For use with mount Condenser Evaporator
1
with
top
mount
without
ice storage bin
with
RIDE
without
Follett Vision with
™
undercounter
RIDE
ice and beverage
without
dispenser
with
top
countertop ice
mount
3
without
and beverage
dispenser
with
(by others)
RIDE
without
with
drop-in dispenser
RIDE
(by others)
without
Ice Manager
with
diverter RIDE
without
valve system
¹ Ordered separately.
² For Micro Chewblet ice, replace second character (C) with an M
e.g. HMD2110RBT.
³ Requires top kit (see page 5 for part number).
⁴ Condensing unit is 208-230/60/1.
⁵ For three phase remote condensing unit, replace third character (D) with an F
e.g. HCF1810RBT.
801 Church Lane | Easton, PA 18040, USA
1.800.523.9361 | 1.610.252.7301 | follettice.com
Horizon Elite
diverter valve system, slide‑out
™
Item number
2
1810 series
115/60/1 HCD1810RBT HCD2110RBT
4, 5
115/60/1 HCD1810NBT HCD2110NBT
115/60/1 HCD1810RBS HCD2110RBS
4, 5
115/60/1 HCD1810NBS HCD2110NBS
115/60/1 HCD1810RVS HCD2110RVS
4, 5
115/60/1 HCD1810NVS HCD2110NVS
115/60/1 HCD1810RHT HCD2110RHT
4, 5
115/60/1 HCD1810NHT HCD2110NHT
115/60/1 HCD1810RHS HCD2110RHS
4, 5
115/60/1 HCD1810NHS HCD2110NHS
115/60/1 4, 5 HCD1810RJS
115/60/1 HCD1810NJS
115/60/1 HCD1810RMS HCD2110RMS
4, 5
115/60/1 HCD1810NMS HCD2110NMS
™
Item number
2
2110 series
HCD2110RJS
HCD2110NJS
